MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

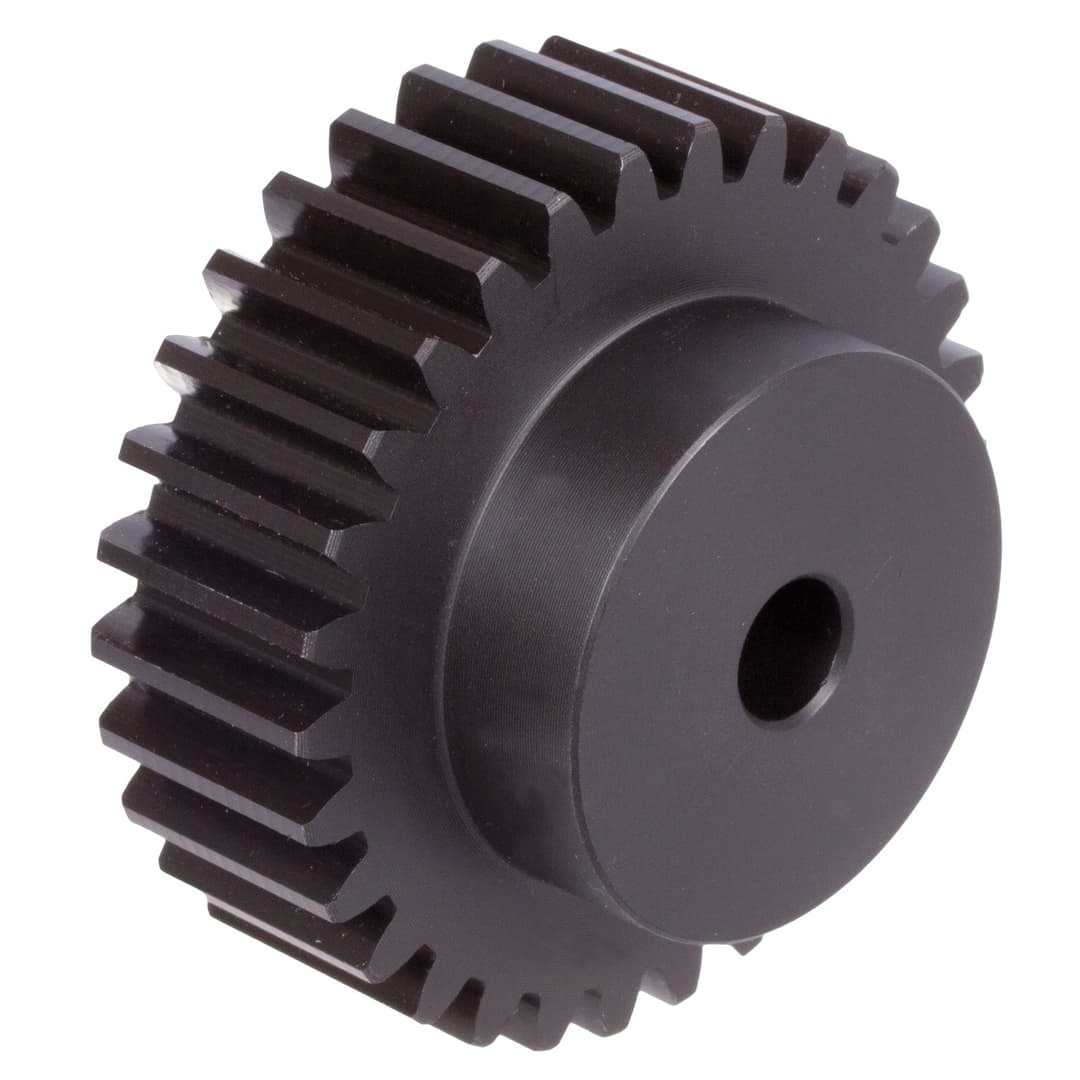

spur gear POM black with hub module 1 32 teeth tooth width 15mm outer diameter 34mm
Manufacturer part no. 29311032
$22.62≈ 19.64 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €19.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.93 |
| Total delivered | €41.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

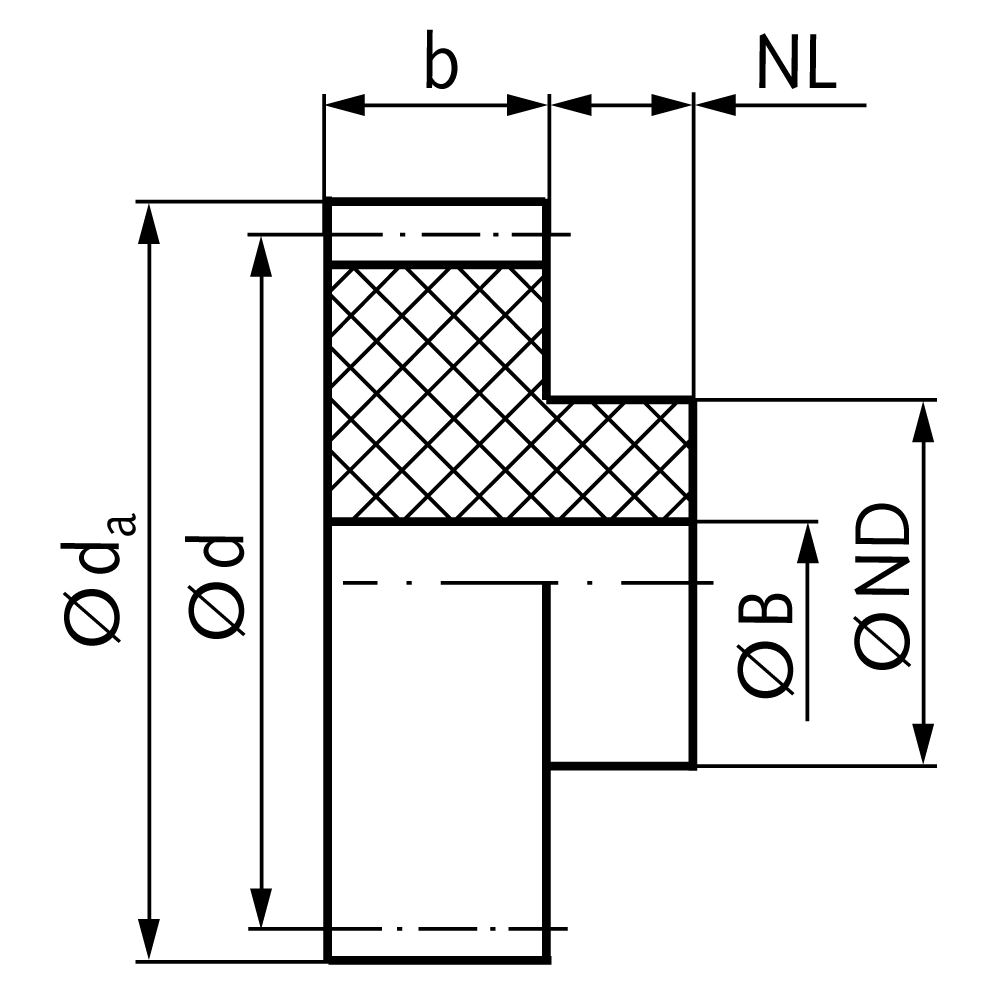

Specifications (automatically extracted)
Mechanical
| Weight | 21.3 g |
Other characteristics
| Bore bjs10 mm | 8 mm |
| Hub diameter | 25 mm |
| Hub length | 10 mm |
| Max torque | 1.32 Nm |
| Module | 1 |
| No of teeth | 32 |
| Outer diameter | 34 mm |
| Pitch circle diameter | 32 mm |
| Tooth quality | 8 |
| Tooth width | 15 mm |
| Hub | One sided |
| Material | Plastic (POM black) |
| Surface | Blank |
Description
Material: POM, white / nature, milled teeth. Tooth quality 10d25 DIN 3967. Pressure angle 20°. Untoleranced dimensions in accordance with DIN ISO 2768 middle. Temperature limit: continuous 100°C, only short time 160°C. Water absorption (satiable) 0,5% Cws.
