MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

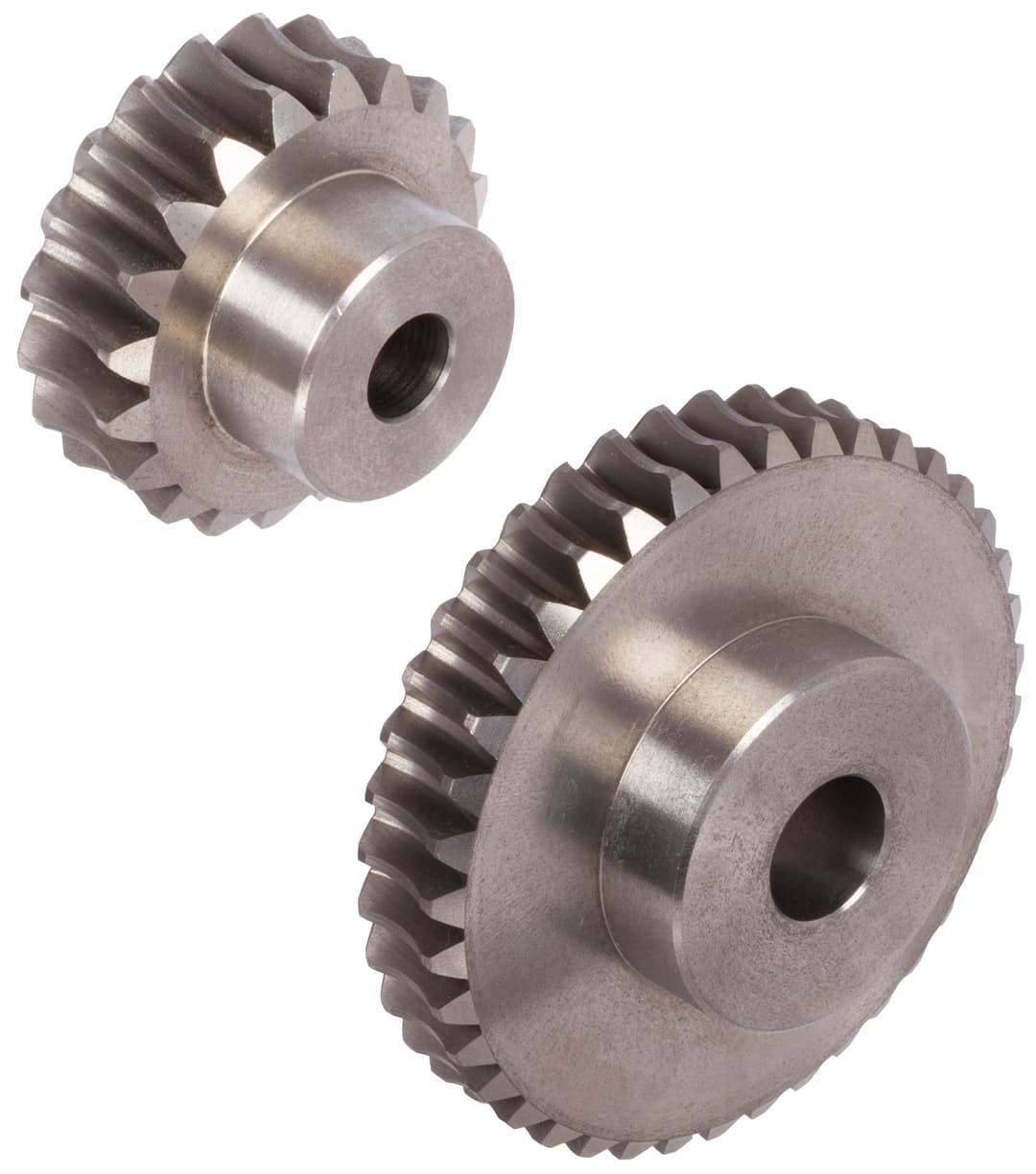

Worm wheel made of cast iron GG25 module 3 32 teeth single-thread right hand
Manufacturer part no. 31001400
$144.04≈ 125.09 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €125.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.02 |
| Total delivered | €168.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

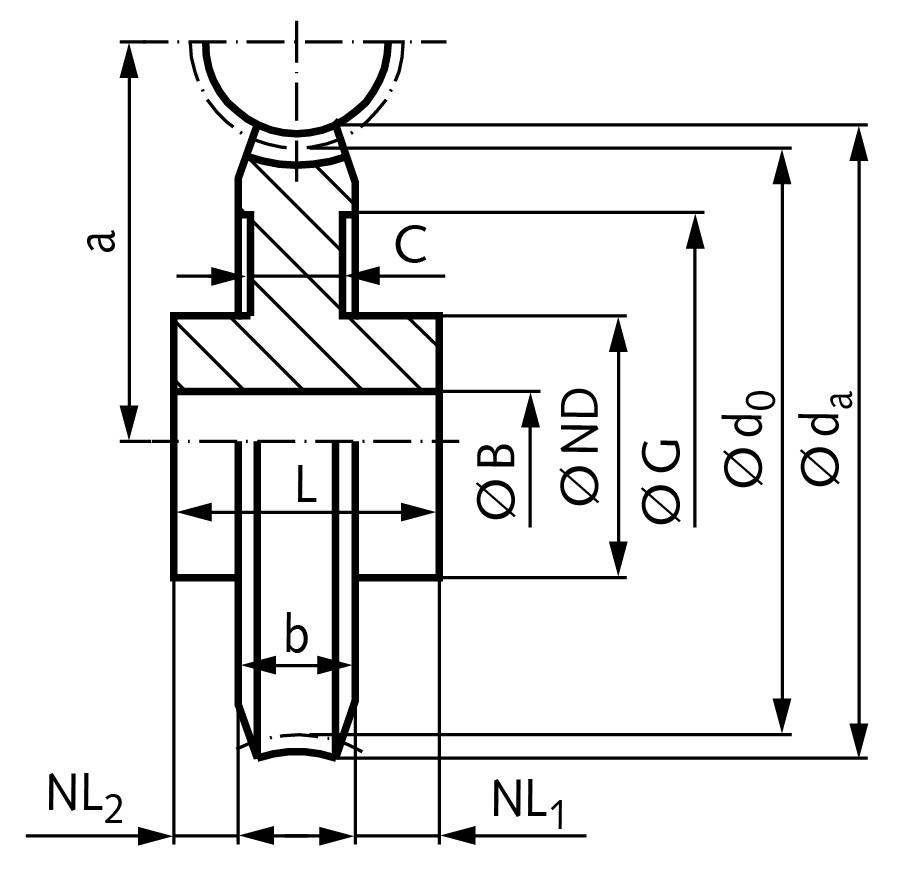

Specifications (automatically extracted)
Mechanical
| Weight | 1.4 kg |
Other characteristics
| Bore | 20 mm |
| Max torque | 132 Nm |
| No of teeth | 32 |
| Outer diameter | 105 mm |
| Material | Grey cast iron (A48) |
| Module | 3 single-thread RH |
| Ratio | 32 : 1 |
| Surface | Blank |
Description
Material: GG25, with milled out, hollow teeth. With double-sided hub. Single-thread worm gears to be paired with single-thread worms. If the module (and number of threads) are matching, various ratios at various axle distances can be realized. Pressure angle 20°. Efficiency: approx. 0,46. Not self-locking.
