MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

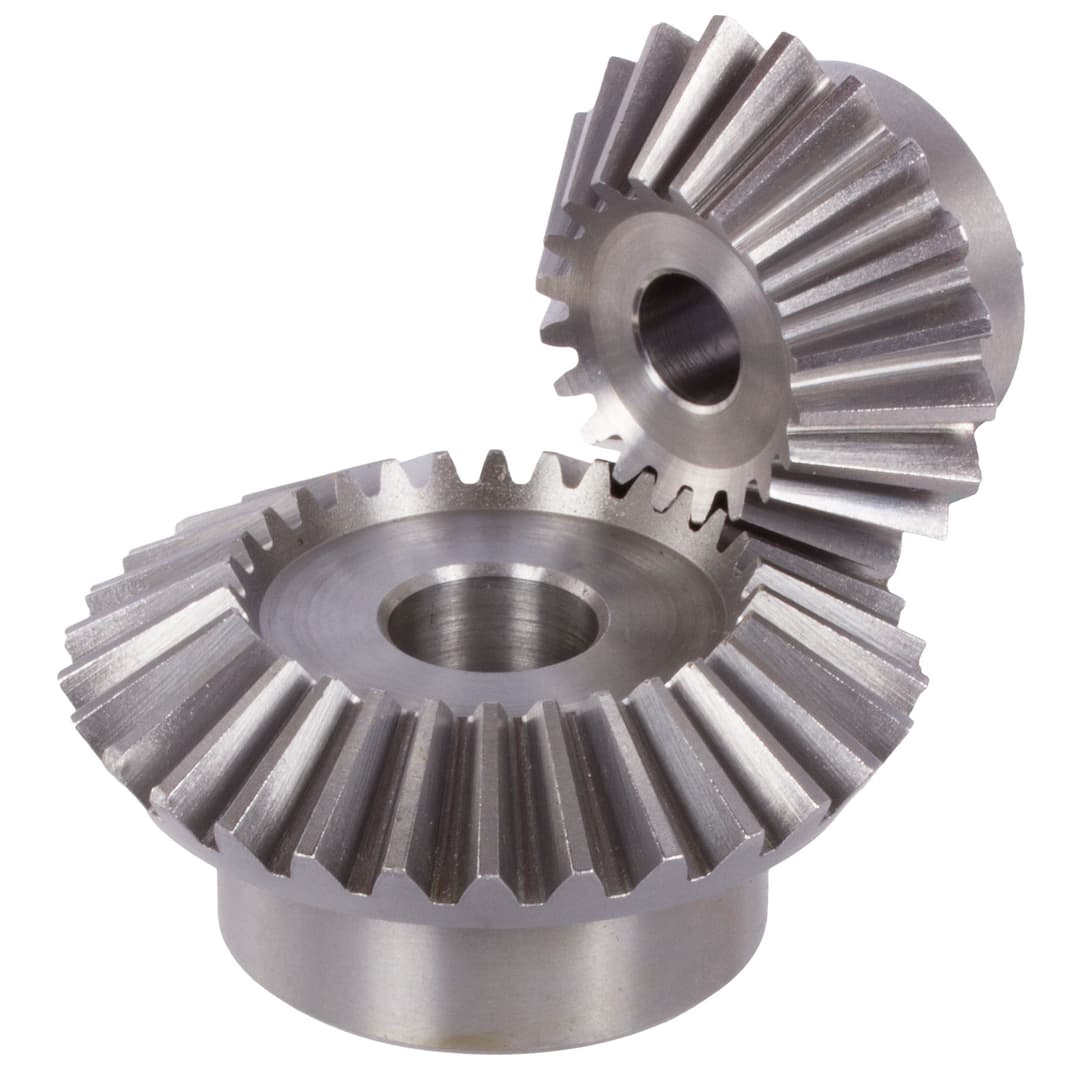

Bevel gear made of steel module 3 16 teeth i=1.25:1 milled
Manufacturer part no. 36144400
$66.25≈ 57.53 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €57.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.51 |
| Total delivered | €87.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 220 g |
Other characteristics
| Bore | 15 mm |
| Max torque | 5.2 Nm |
| Module | 3 |
| No of teeth | 16 |
| Optional counter wheel part no | 36 144 500 |
| Outer diameter | 52.9 mm |
| Tooth quality | 8 |
| Material | Steel (1045) |
| Ratio | 1.25:1 (16/20) |
| Surface | Blank |
Description
Material: up to module 2: 11SMn30+SH (1.0715). From module 2.5: C45. Tooth quality 8 modelled on DIN 3967 (from module 2). With crowned, milled teeth. Not hardened – not lapped. Shaft angle = 90º. The bevel gears only run as a pair at the stated ratio and at the same module. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module, with a different number of teeth of the same ratio.
