MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

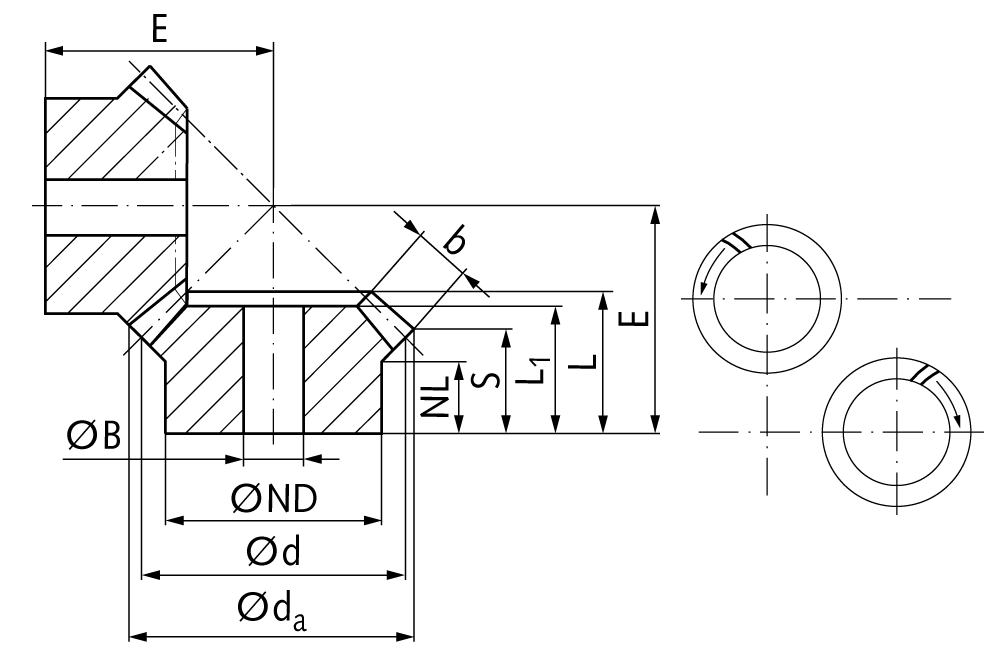

Bevel gear set spiral toothed module 1 number of teeth 30/30 i=1:1 material steel 42CrMo4 teeth hardened
Manufacturer part no. 38552000
$123.88≈ 107.58 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €107.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.52 |
| Total delivered | €147.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Bore | 10 mm |
| Max torque | 14.3 Nm |
| Outer diameter | 46.4 mm |
| Tooth quality | 8 |
| Weight per set | 278 g |
| Hardened | Yes |
| Material | Steel (4140) |
| Module | 1.0 spiral toothed |
| No of teeth | 30 / 30 |
| Ratio | 1 : 1 |
| Surface | Blank |
Description
Material up to module 1.5: 42CrMo4 teeth induction hardened. Material from module 2.0: 16MnCr5, teeth case hardened. Hubs and bores soft. ** Gears with ground hub contact surfaces and bores. *** Not hardened. Tooth quality 8 modelled on DIN 3967. Sold in pairs only.
