MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

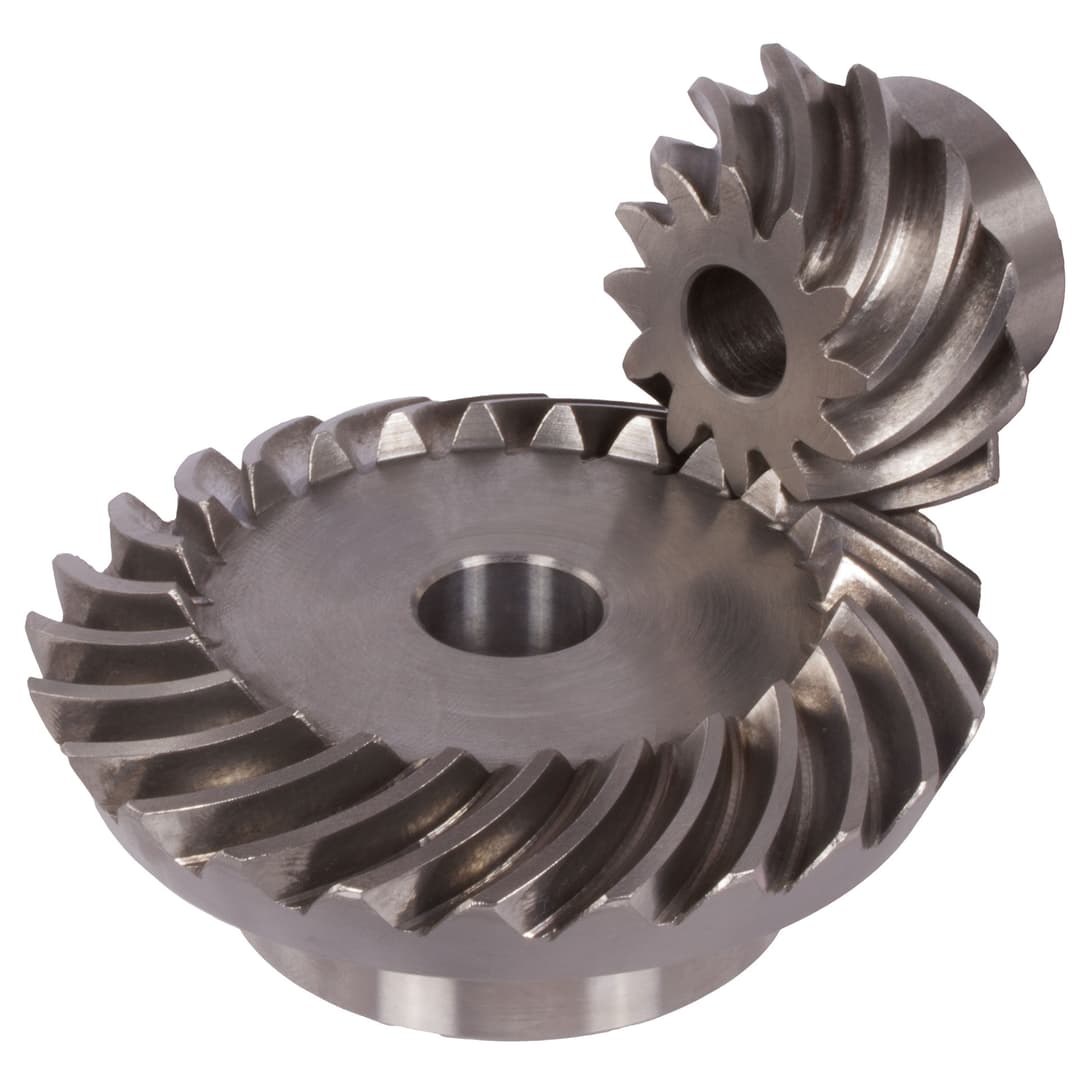

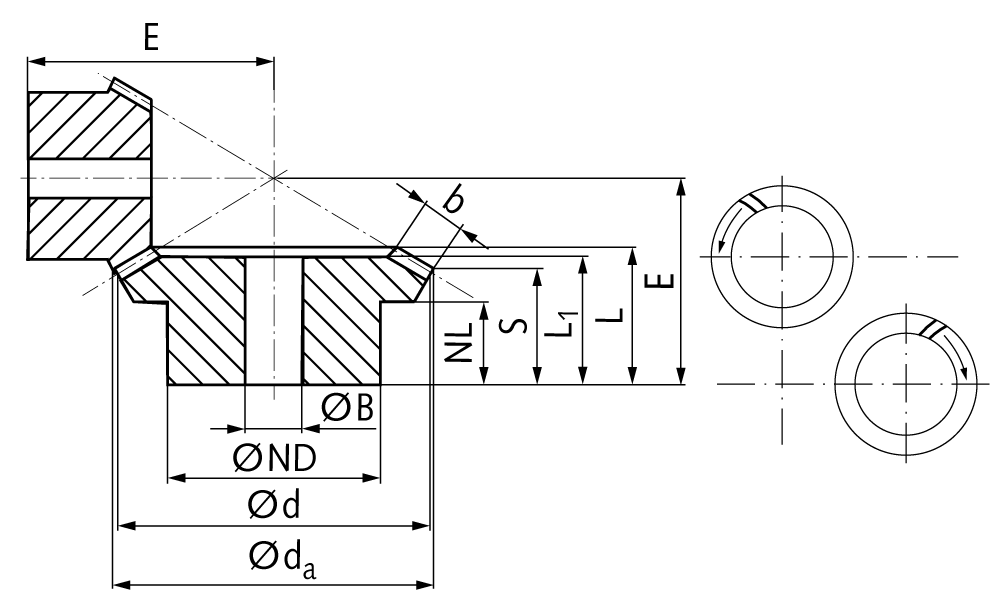

Bevel gear set spiral toothed, module 1 number of teeth 20/30 i=1.5:1 material steel 42CrMo4 teeth hardened
Manufacturer part no. 38555200
$127.75≈ 110.94 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €110.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.19 |
| Total delivered | €151.13 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Tooth quality | 8 |
| Weight per set | 166 g |
| Bore | 8/10 mm |
| Hardened | Yes |
| Material | Steel (4140) |
| Max torque | 8.1/12.2 Nm |
| Module | 1.0 spiral toothed |
| No of teeth | 20 / 30 |
| Outer diameter | 31.6/46.3 mm |
| Ratio | 1.5 : 1 |
| Surface | Blank |
Description
Material up to module 1.5: 42CrMo4, teeth induction hardened. Material from module 2.0: 16MnCr5, teeth case hardened. Hubs and bores soft. ** Gears with ground hub contact surfaces and bores. Tooth quality 8 modelled on DIN 3967. Sold in pairs only.
