MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

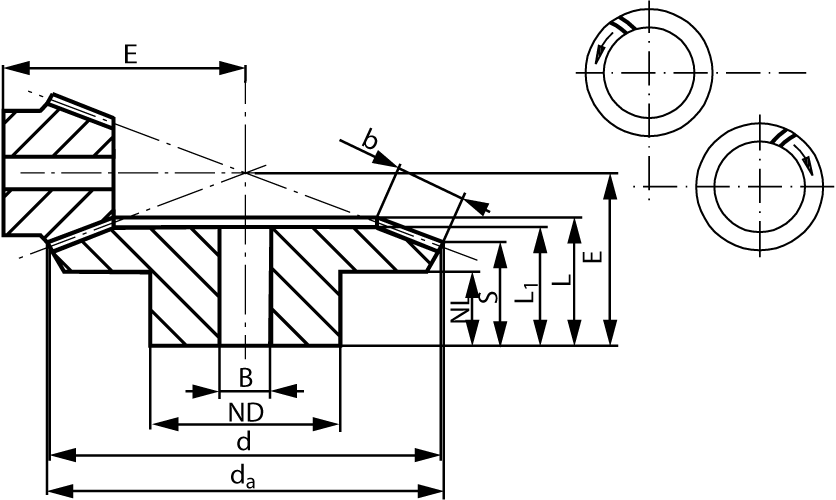

Bevel gear set spiral toothed module 1 number of teeth 16/64 i=4:1 material steel 42CrMo4 teeth hardened
Manufacturer part no. 38559400
$232.11≈ 201.57 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €201.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €43.31 |
| Total delivered | €259.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Tooth quality | 8 |
| Weight per set | 842 g |
| Bore | 8/20 mm |
| Hardened | Yes |
| Material | Steel (4140) |
| Max torque | 7.8/31.2 Nm |
| Module | 1.0 spiral toothed |
| No of teeth | 16 / 64 |
| Outer diameter | 25.9/96.5 mm |
| Ratio | 4 : 1 |
| Surface | Blank |
Description
Material up to module 1.5: 42CrMo4, teeth induction hardened. Material from module 2.0: 16MnCr5, teeth case hardened. Hubs and bores soft. ** Gears with ground hub contact surfaces and bores. Tooth quality 8 modelled on DIN 3967. Sold in pairs only.
