MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

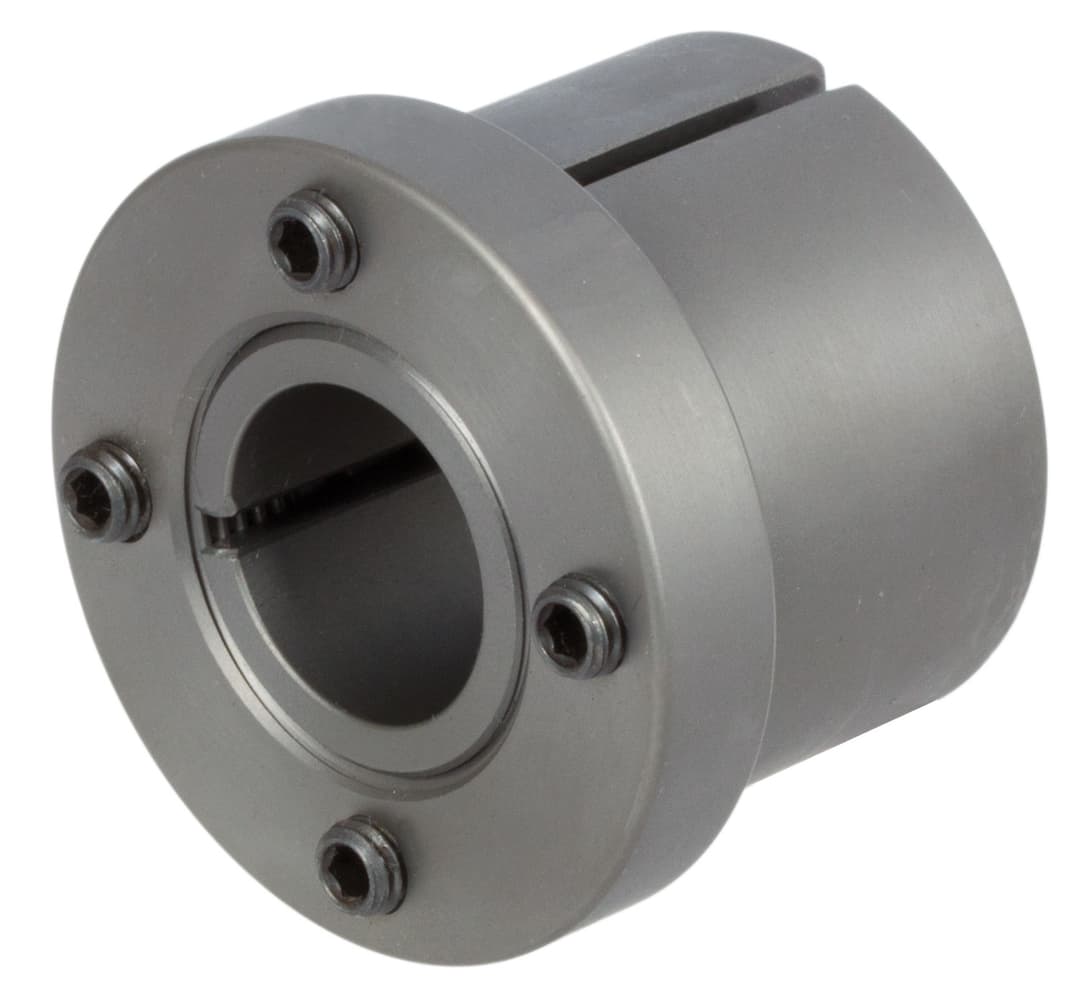

Clamping bush MSA bore 38mm
Manufacturer part no. 61503800
$298.13≈ 258.91 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €258.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €54.78 |
| Total delivered | €328.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.13 kg |
Other characteristics
| Admissible axial force | 50 kN |
| Inner diameter | 38 mm |
| Length | 57 mm |
| No of pins pcs | 6 |
| Outer diameter | 67 mm |
| Tightening torque fastening screws | 18 Nm |
| Transmissible torque | 950 Nm |
| Design shape | With flange, mechanical |
| Material | Steel |
| Self centering | Yes |
| Surface | Blank |
| Surface pressure | 54 N/mm2 |
| Thread size | M 8 x 16 mm |
| Type |
Description

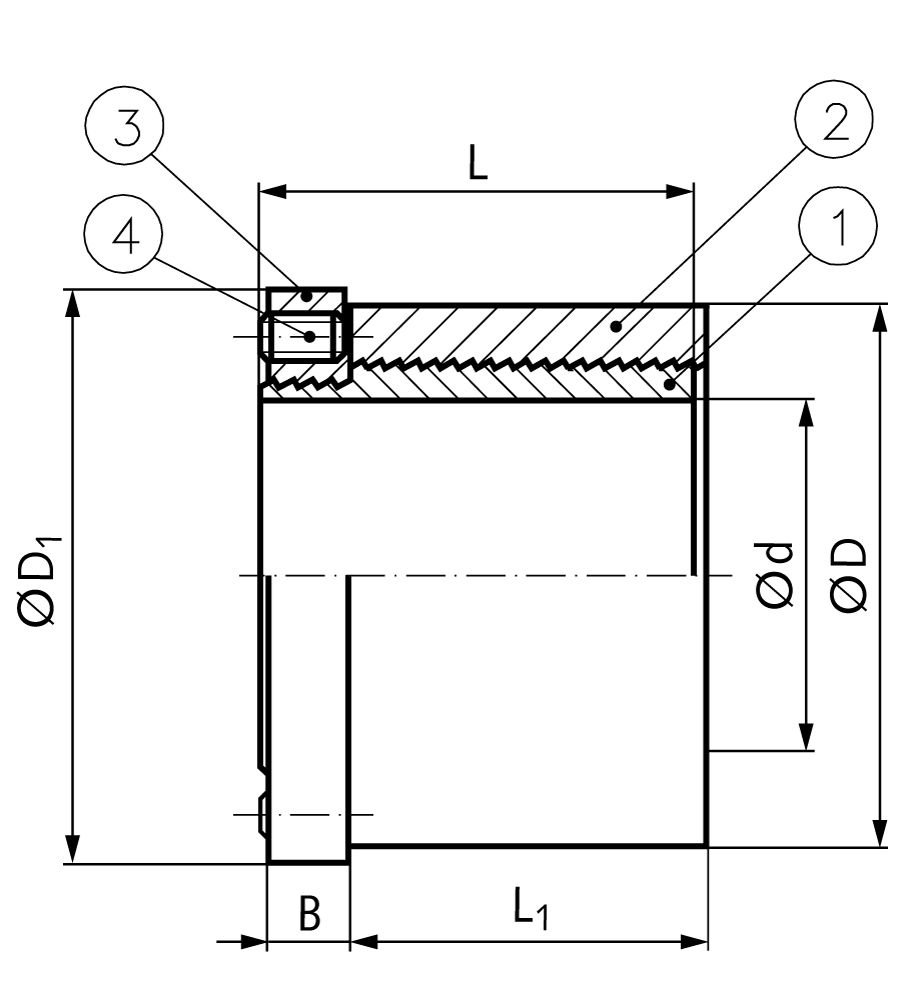

Material: Steel. Mechanical, all-steel clamping elements, containing no hydraulic pressure medium. Both inner part (1) and outer part (2) have a cylindrical buttress thread with a lengthwise slot. The inner ring (3) connected to the inner part (4) has threaded studs, that create a tensioning effect when tightened.The bushes are designed for very high loads in radial as well as in axial direction. The axial runout does usually not exceed 0,02 mm. If a clamping bush without slot on the outside part is to be welded onto a workpiece, we would ask you to contact us first. Feather key grooves in the shaft do not cause any problems; simply remove the frictional corrosion. Tolerance: Shaft h11 up to k6, Hub H7 up to H11 The values for the maximum transmittable torque and the maximum permissible axial force for the clamping bush at static load are stated in the table above. With dynamic load these values have to be reduced, i.e. divided by the operating factors listed in the adjoining table. Operating factor: See PDF-catalog page. 1) approximate surface pressure between clamping bush and hub.
