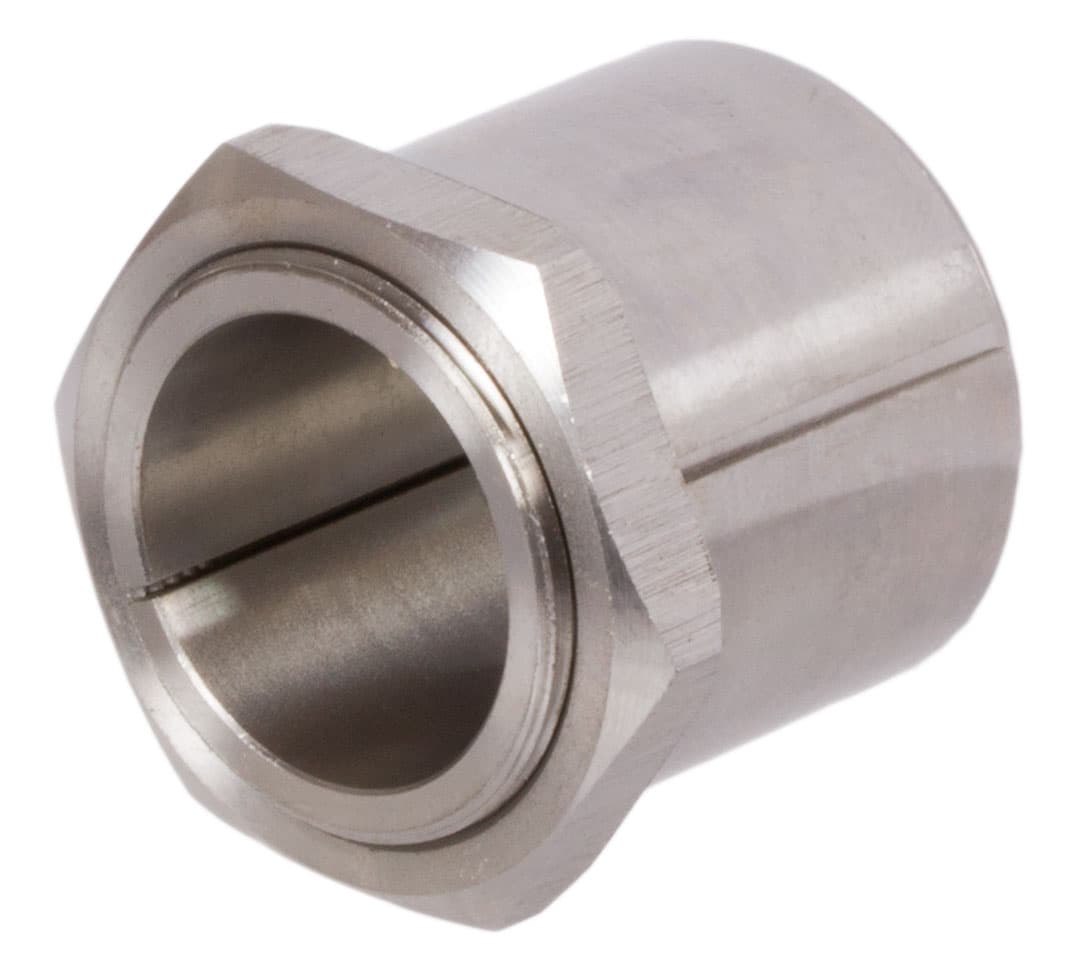

Locking assembly SIG stainless steel 1.4301 bore 9mm
Manufacturer part no. 61510900
$46.57≈ 40.44 €
In stock — 16 unitslead time 14 d
Estimated landed cost
| Item | €40.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.09 |
| Total delivered | €66.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15 g |
Other characteristics
| Inner diameter | 9 mm |
| Length | 22 mm |
| Outer diameter | 14 mm |
| Tightening torque fastening screws | 15 Nm |
| Transmissible torque | 14 Nm |
| Design shape | Cylindrical with central nut |
| Material | Stainless steel (304) |
| Self centering | Yes |
| Surface | Blank |
| Thread size | M 12×1 mm |
| Type | SIG |
Description

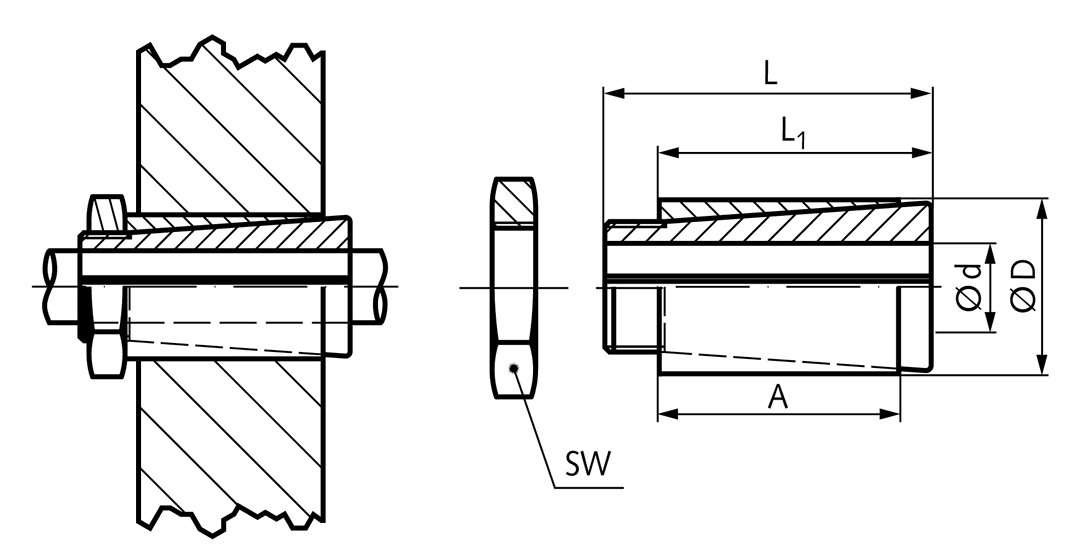

Material: Stainless steel 1.4301 (AISI 304). These clamping set consists of three parts and allows to fix a cylindrical shaft inside a cylindrical bore in the drive wheel. • For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. • For lower torques. • Minimal space requirement. • Self-centering. • Axial movement during mounting. • The connection can be disassembled with a puller. Mounting: The locking assembly has to be mounted without lubrication to achieve the torques stated above. Tighten the nut with a torque wrench with hexagon socket to the torque TA.
