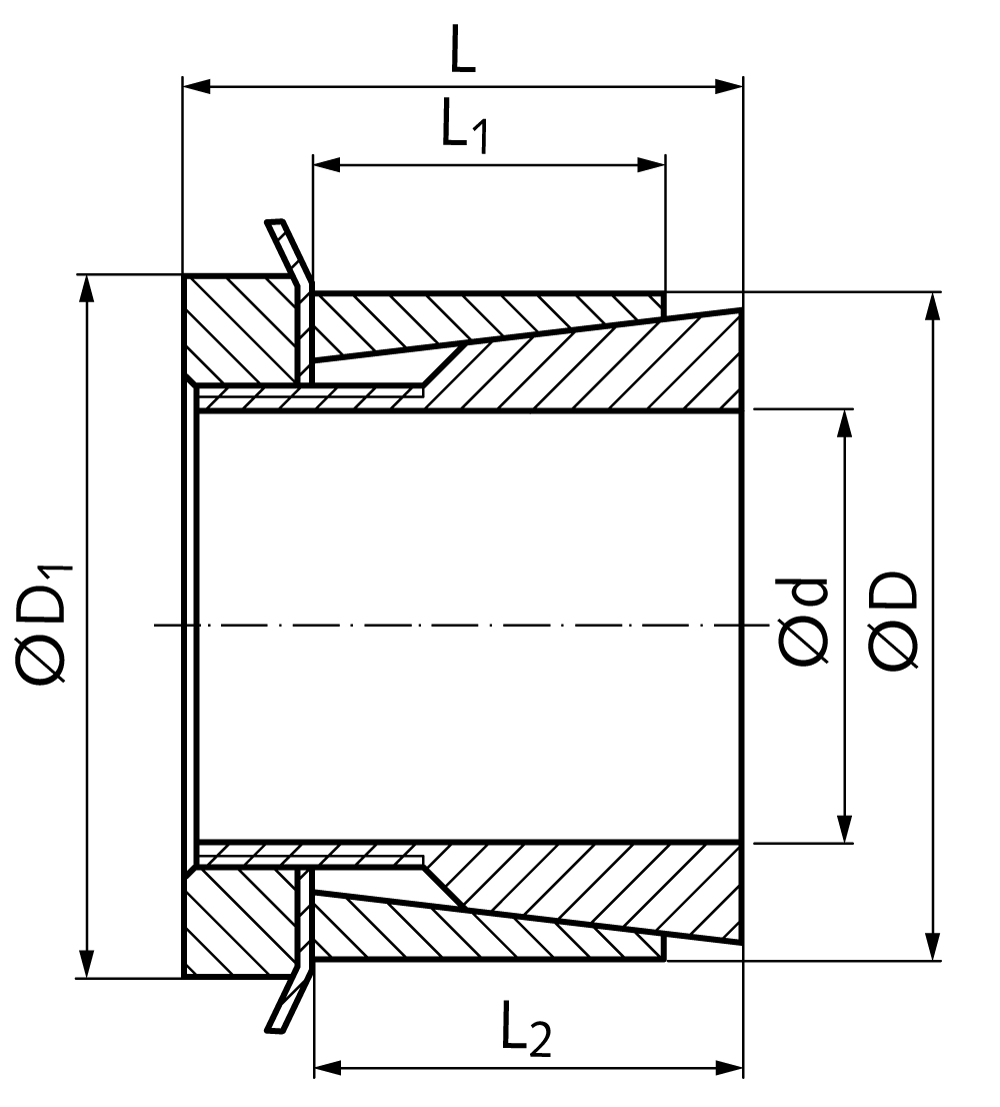

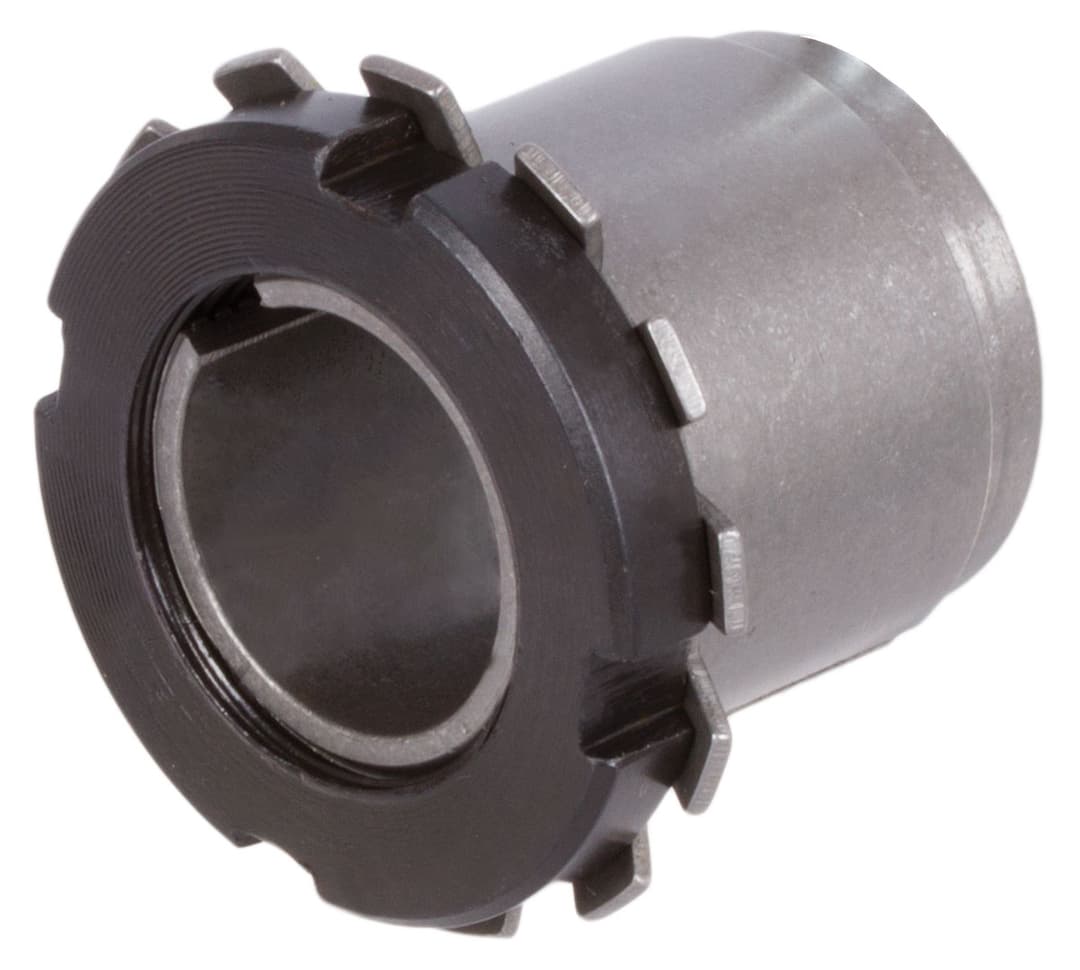

Locking assembly SSG bore 42mm size 42x55x46mm
Manufacturer part no. 61520042
$44.72≈ 38.84 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €38.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.77 |
| Total delivered | €64.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 430 g |
| Dimensions | 42x55x46mm |
Other characteristics
| Admissible axial force | 29 kN |
| Inner diameter | 42 mm |
| Length | 46 mm |
| Outer diameter | 55 mm |
| Tightening torque fastening screws | 870 Nm |
| Transmissible torque | 650 Nm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 52 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 68 N/mm2 |
| Slotted nut 8 8 thread size | M 50×1.5 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For low torques. Also suitable for small hub diameters. Self-centering. Self-locking. Axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft max. 12,5 µm.
