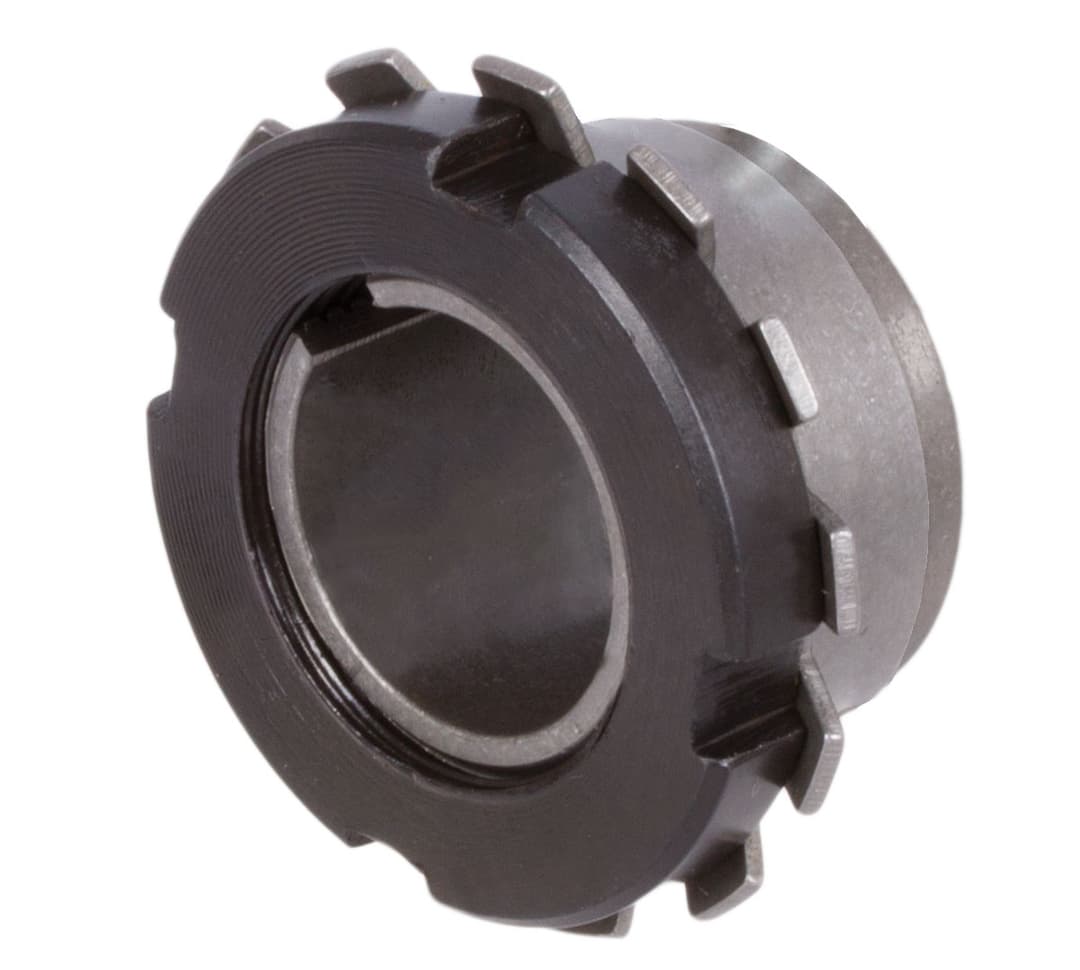

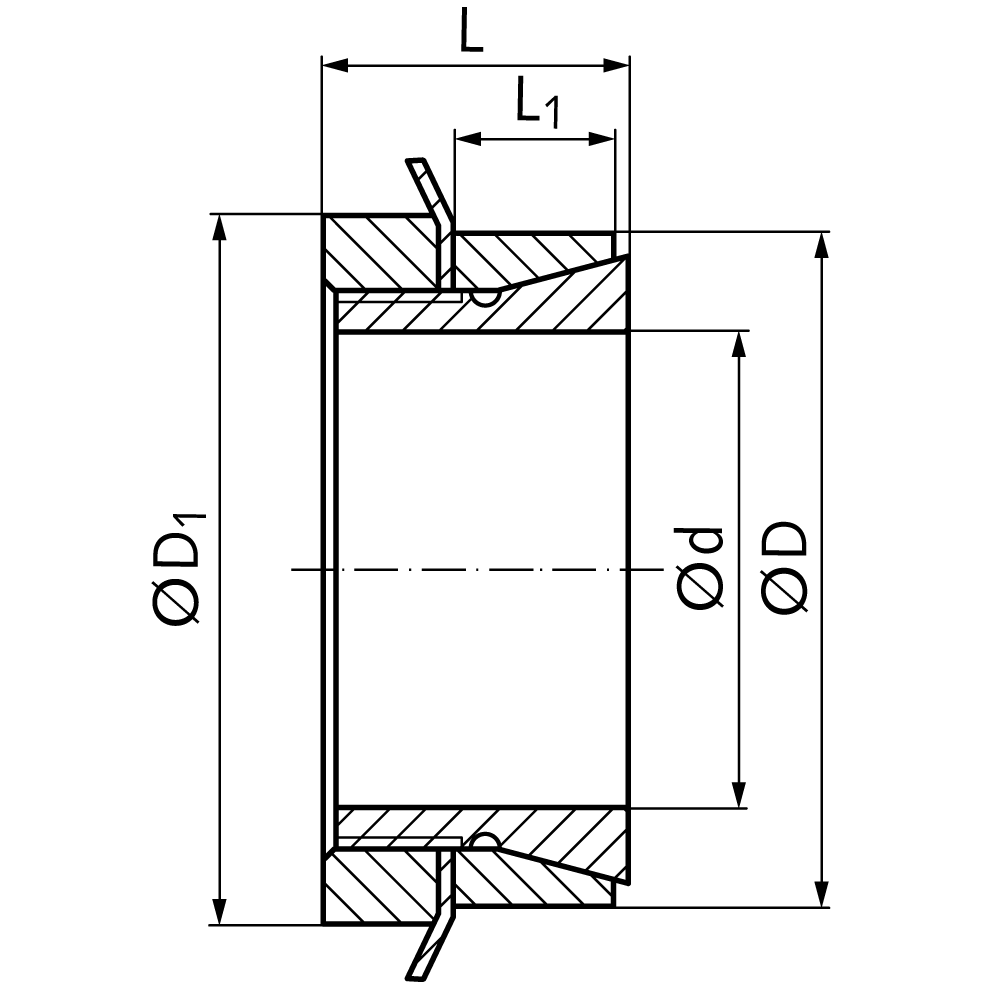

Locking assembly SSGK bore 65mm size 65x79x30.5mm
Manufacturer part no. 61520165
$64.12≈ 55.68 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €55.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.14 |
| Total delivered | €84.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 520 g |
Other characteristics
| Admissible axial force | 32 kN |
| Inner diameter | 65 mm |
| Length | 30.5 mm |
| Outer diameter | 79 mm |
| Tightening torque fastening screws | 1 600 Nm |
| Transmissible torque | 1 020 Nm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 85 N/mm2 |
| Material | Steel |
| Self centering | No |
| Shaft surface pressure | 103 N/mm2 |
| Slotted nut 8 8 thread size | M 70×2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For low torques. Very short version. Also suitable for small hub diameters. Not self-centering. Not self-locking. Axial movement during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft max. 12,5 µm.
