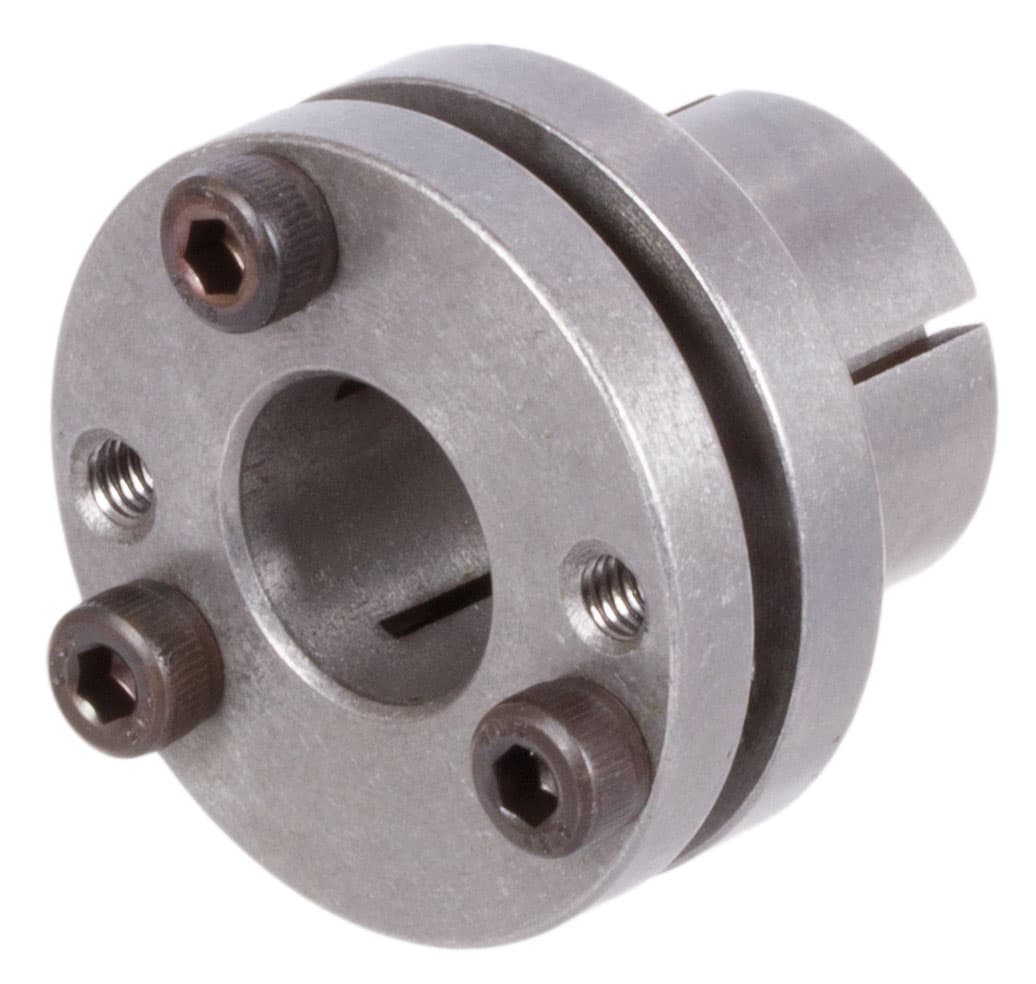

Mini clamping bush MSM bore 12mm
Manufacturer part no. 61521200
$61.94≈ 53.79 €
In stock — 15 unitslead time 14 d
Estimated landed cost
| Item | €53.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.76 |
| Total delivered | €82.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 60 g |
Other characteristics
| Admissible axial force | 6.5 kN |
| Inner diameter | 12 mm |
| Length | 25.5 mm |
| No of bolts pcs | 2 |
| Outer diameter | 18 mm |
| Tightening torque fastening screws | 4 Nm |
| Transmissible torque | 40 Nm |
| Design shape | With flange, mechanical |
| Hub surface pressure | 70 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 90 N/mm2 |
| Surface | Blank |
Description
Material:Steel. Concentricity: about 0,02 mm. Tolerance: Shaft k6-h10, Hub H8. Mounting: The bush is mounted quickly. Just place the bush inside the hub and push both onto the shaft. Fasten with Allen key. Demounting: Remove tensioning screws. Put screws in forcing thread and fasten them until the bush is pressed off. MN = transmittable torque at load of 0. If the screws are fastened with Manz. Fa = transmittable axial force at torque of 0. If the screws are fastened with Manz. Manz = required fastening torque for the screws. The dimensions refer to bushes before assembly.
