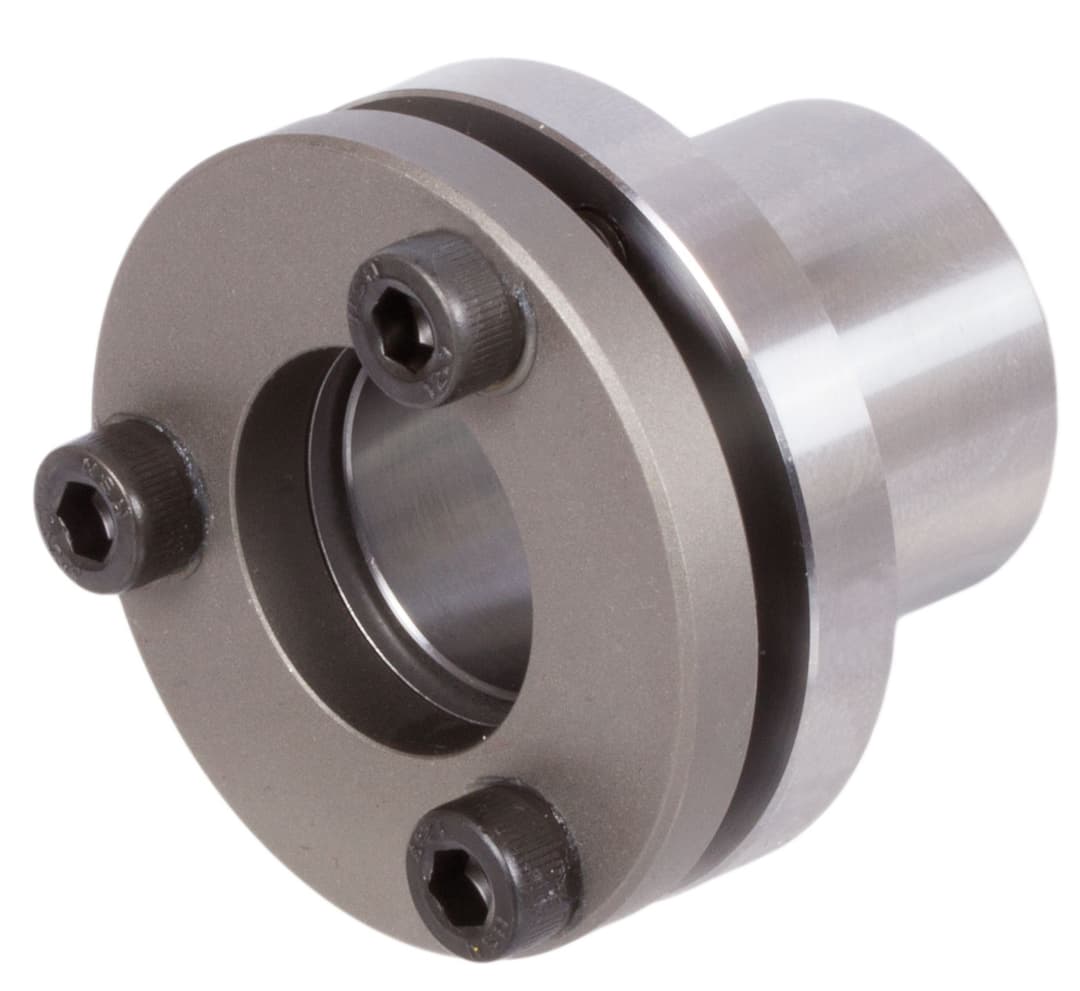

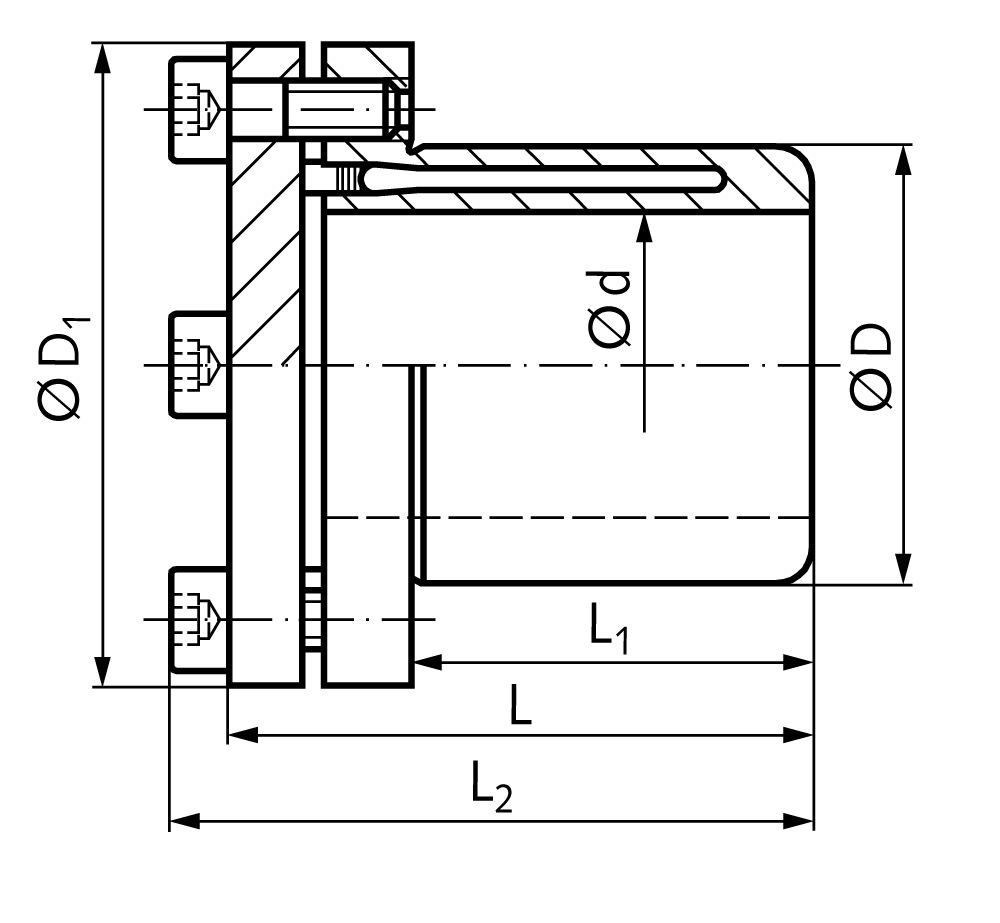

Clamping bush MSD bore 42mm steel
Manufacturer part no. 61524200
$421.06≈ 365.66 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €365.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €76.13 |
| Total delivered | €456.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 550 g |
Other characteristics
| Admissible axial force | 44.8 kN |
| Inner diameter | 42 mm |
| Length | 65 mm |
| No of bolts pcs | 6 |
| Outer diameter | 55 mm |
| Tightening torque fastening screws | 8 Nm |
| Transmissible torque | 940 Nm |
| Design shape | With flange, hydraulic |
| Hub surface pressure | 70 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 90 N/mm2 |
| Surface | Blank |
Description
Material: Steel. The MSD clamping bush consists of a double-walled, hardened steel sleeve filled with a special pressure medium, a seal, a piston, a compression flange and fastening screws. When tightening the screws, the sleeves expand evenly against shaft and hub, creating a rigid connection. When the screws are loosened, the bush returns to its initial position and can be easily demounted. Concentricity: about 0,03 – 0,06 mm Tolerance: Shaft h8 – k6 (for Product No. 615 215 00 only h7), Hub H7 Advantages: -fast mounting/demounting -sensitive adjustment of the hub can be carried out during assembly -low fastening torque and few screws allow very simple assembly. -good concentricity -small dimensions allow little ouside diametre of the hub MN = transmittable torque at load of 0. If the screws are fastened with Manz. Fa = transmittable axial force at torque of 0. If the screws are fastened with Manz. Manz = required fastening torque for the screws. The dimensions refer to bushes before assembly. Temperature range: -30° to +85°C.
