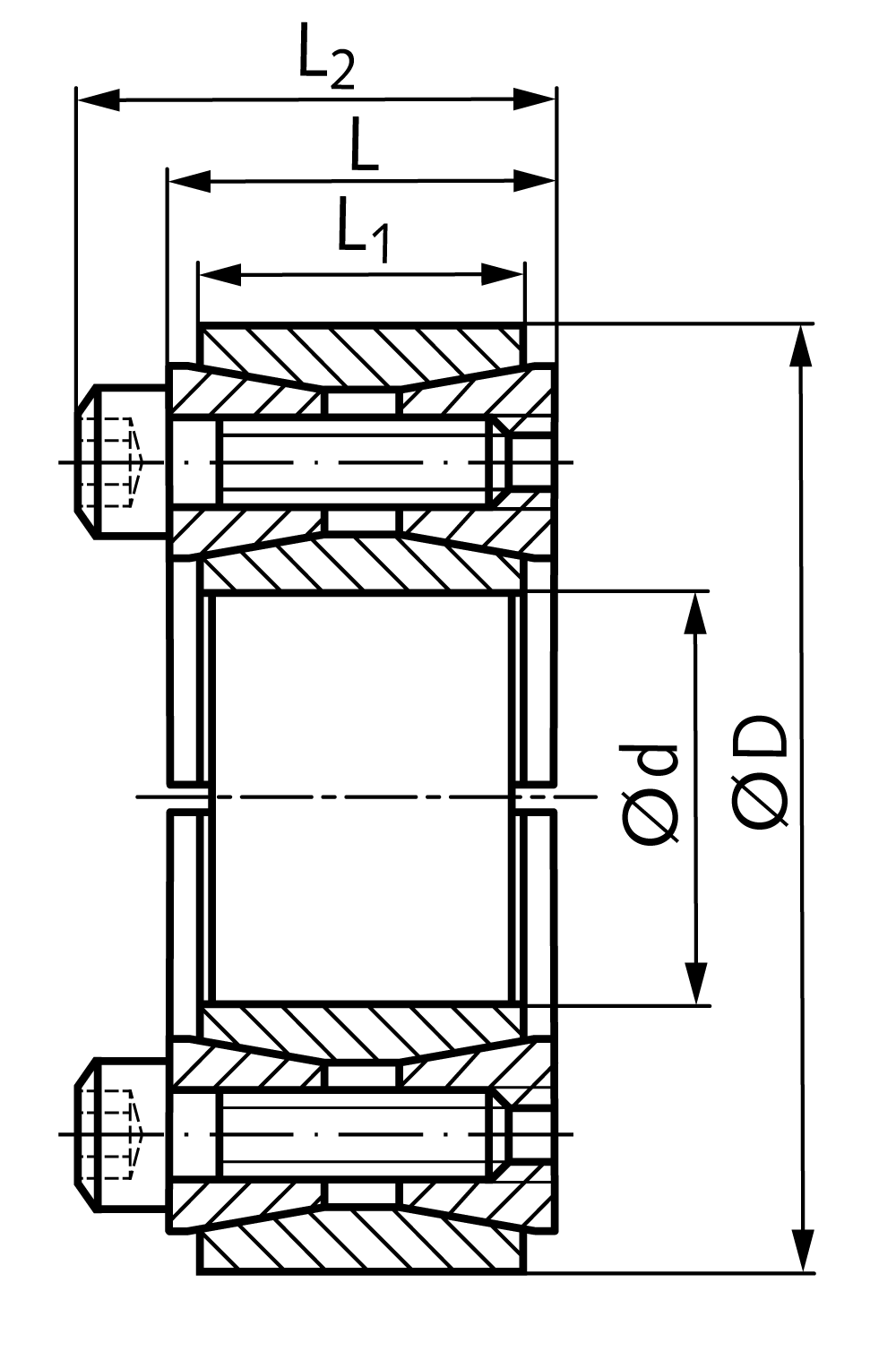

Locking assembly COM-AS bore 28mm size 28x55x20mm
Manufacturer part no. 61530028
$23.33≈ 20.26 €
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €20.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.05 |
| Total delivered | €42.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 270 g |
| Dimensions | 28x55x20mm |
Other characteristics
| Admissible axial force | 42 kN |
| Inner diameter | 28 mm |
| Length | 20 mm |
| Outer diameter | 55 mm |
| Tightening torque fastening screws | 15 Nm |
| Transmissible torque | 610 Nm |
| Bolts 12 9 no x size | 10 x M6 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 109 N/mm2 |
| Material | Steel |
| Self centering | No |
| Shaft surface pressure | 212 N/mm2 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium high torques. Like COM-A, but with slotted pressure rings. Not self-centering. Self-releasing at dismounting. No axial movement during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12.5 µm. More sizes up to d=1,000mm for 2,336,000Nm are available. Price and delivery time on request.
