MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

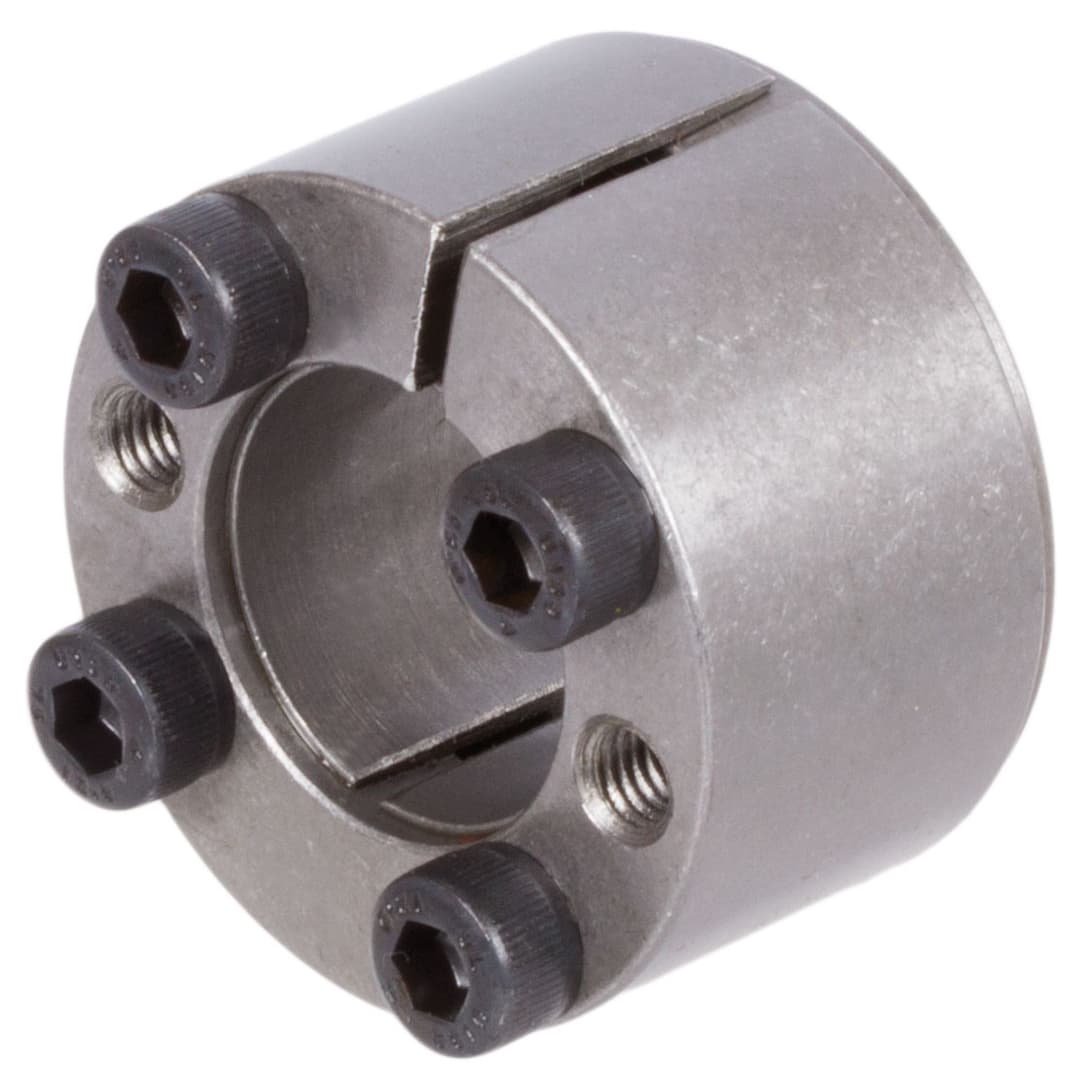

Locking assembly BAR bore 85mm
Manufacturer part no. 61548500
$180.30≈ 156.58 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €156.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €34.32 |
| Total delivered | €205.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.85 kg |
Other characteristics
| Admissible axial force | 190 kN |
| Inner diameter | 85 mm |
| Length | 54 mm |
| No of bolts pcs | 9 |
| Outer diameter | 125 mm |
| Tightening torque fastening screws | 80 Nm |
| Transmissible torque | 7 560 Nm |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 123 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 273 N/mm2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium torques. Self-centering. Slight axial offset possible during assembly. Fit, Surface: Due to the special design of the BAR clamping set even rough fits can be bridged with excellent self centering capacity. Shaft and hub up to Quality h8/H8. Surface finish for shaft and hub Rz < 12.5 µm.
