MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

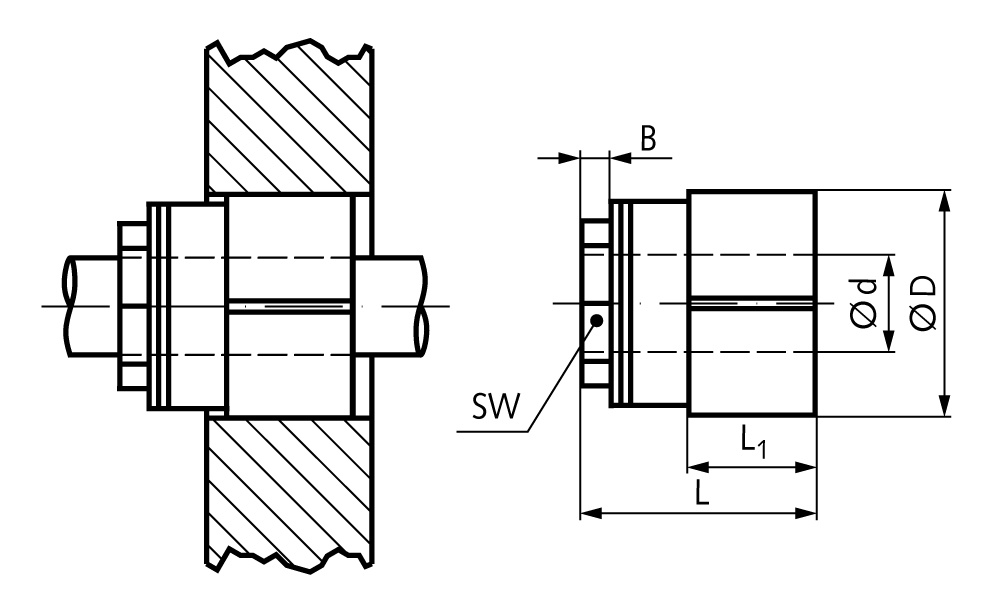

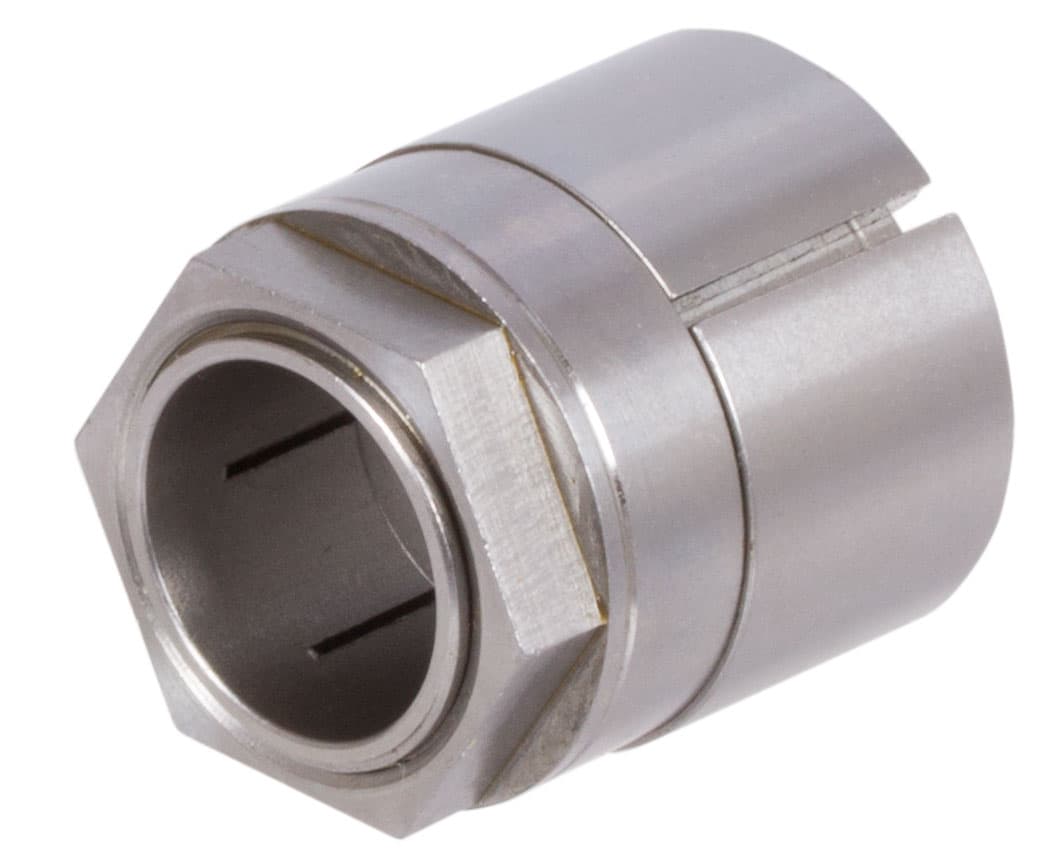

Locking assembly TT bore 12mm size 12-23
Manufacturer part no. 61550112
$56.23≈ 48.83 €
In stock — 28 unitslead time 14 d
Estimated landed cost
| Item | €48.83 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.77 |
| Total delivered | €76.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 45 g |
Other characteristics
| Admissible axial force | 13 kN |
| Inner diameter | 12 mm |
| Length | 26 mm |
| Outer diameter | 23 mm |
| Tightening torque fastening screw | 44 Nm |
| Transmissible torque | 79 Nm |
| Wrench size | 19 mm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 116 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Surface | Blank |
| Type | TT |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For high torques. Self-centering. Axial offset during mounting (can be compensated by correct positioning). Tolerances, Surfaces Ø-tolerance for shafts and hubs +/- 0.04mm. Mounting It is essential to degrease the shaft and hub. Install clamping sets nearly completely degreased. Tighten the nut with a torque wrench with hexagon socket to the torque TA.
