MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

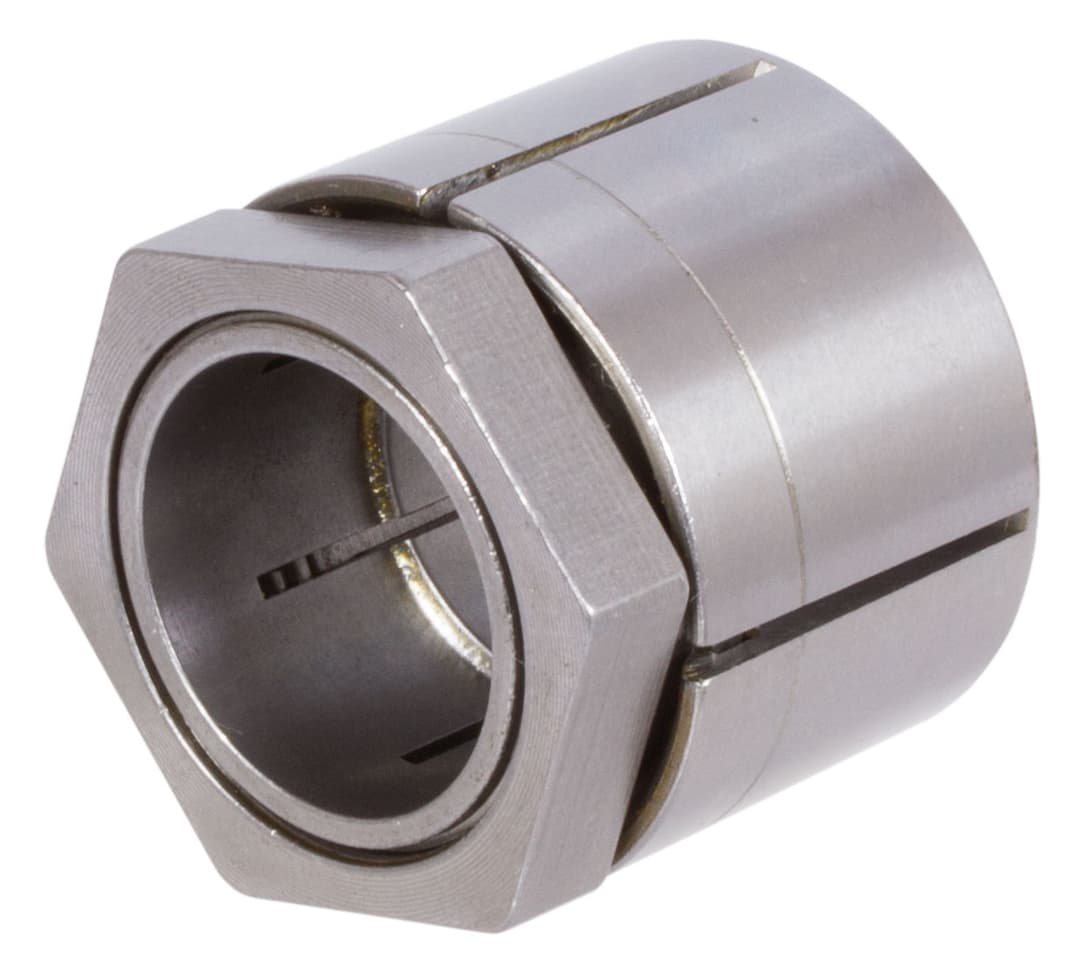

Locking assembly TT bore 35mm size 35-50
Manufacturer part no. 61550135
$84.57≈ 73.44 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €73.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.69 |
| Total delivered | €106.13 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

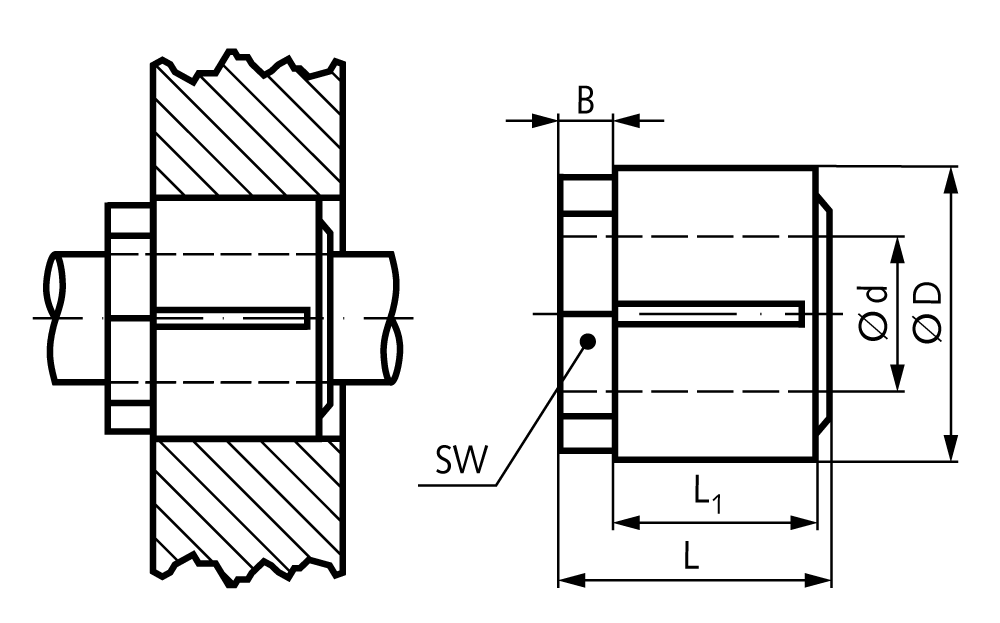

Mechanical
| Weight | 340 g |
Other characteristics
| Admissible axial force | 37 kN |
| Inner diameter | 35 mm |
| Length | 44 mm |
| Outer diameter | 50 mm |
| Tightening torque fastening screw | 265 Nm |
| Transmissible torque | 645 Nm |
| Wrench size | 50 mm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 65 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Surface | Blank |
| Type | TT |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For high torques. Self-centering. Axial offset during mounting (can be compensated by correct positioning). Tolerances, Surfaces Ø-tolerance for shafts and hubs: +/- 0.08mm. Mounting It is essential to degrease the shaft and hub. Install clamping sets nearly completely degreased. Tighten the nut with a torque wrench with hexagon socket to the torque TA.
