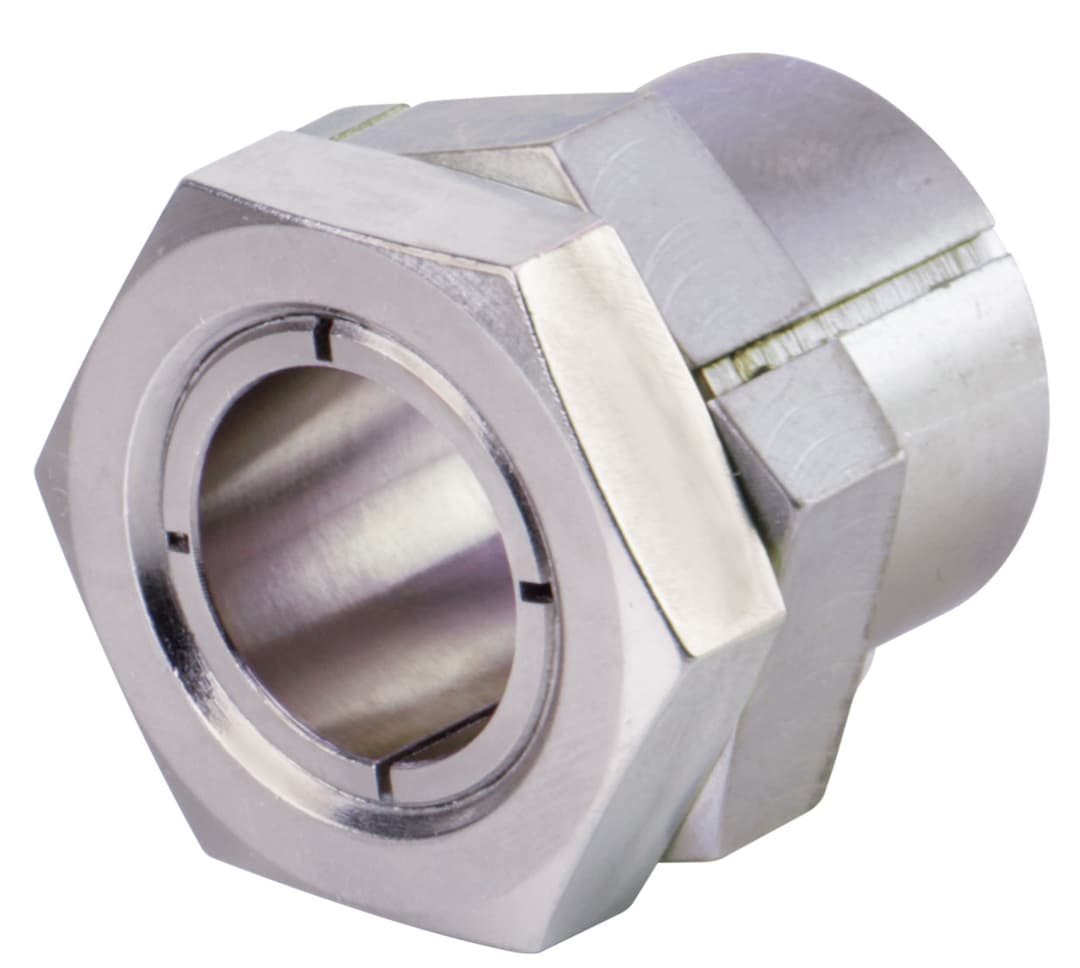

locking assembly TMK type A bore 7mm steel
Manufacturer part no. 61550207
$27.60≈ 23.97 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €23.97 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.79 |
| Total delivered | €46.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 23 g |
Other characteristics
| Admissible axial force | 5.8 kN |
| Inner diameter | 7 mm |
| Length | 22 mm |
| Outer diameter | 14 mm |
| Tightening torque fastening screw | 17 Nm |
| Transmissible torque | 20 Nm |
| Wrench size | 16 mm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 121 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 205 N/mm2 |
| Surface | Blank |
