MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

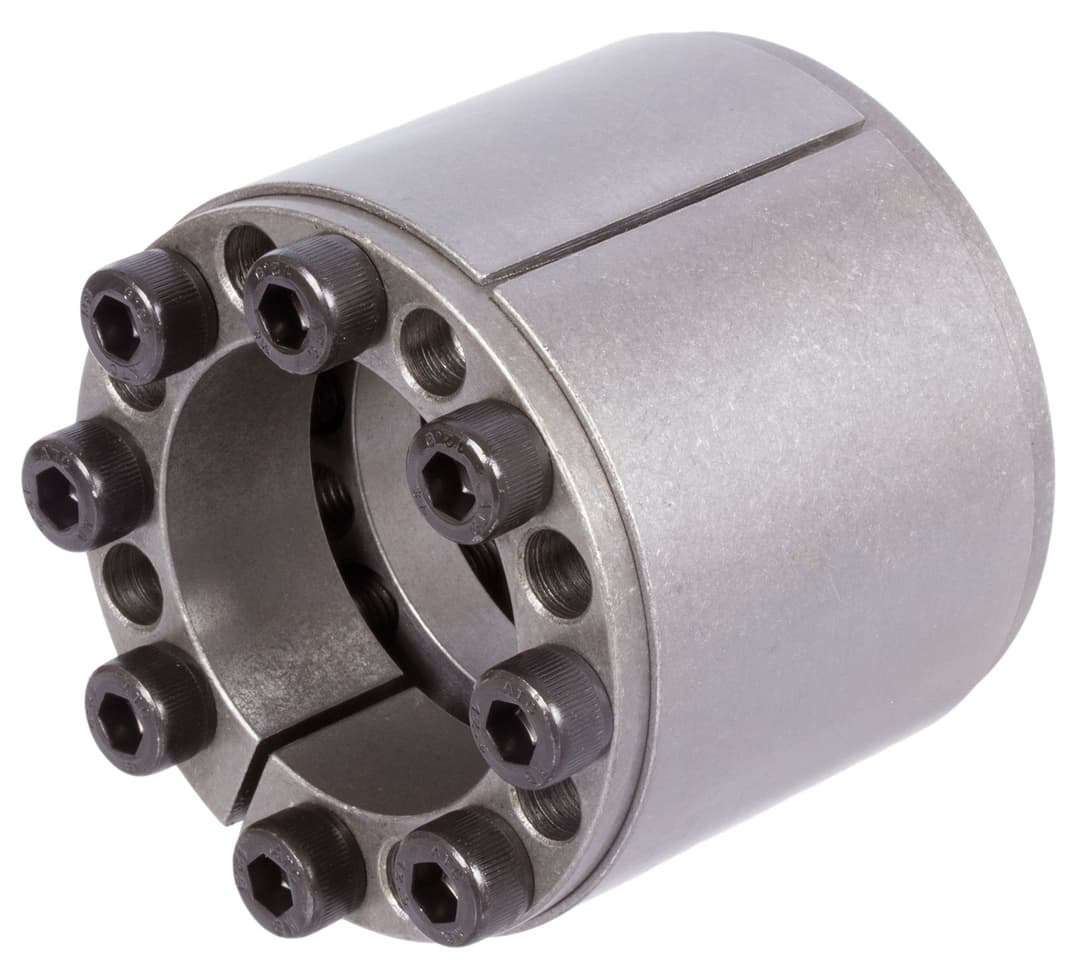

Locking assembly COM-L bore 40mm size 40-75
Manufacturer part no. 61551140
$62.88≈ 54.61 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €54.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.92 |
| Total delivered | €83.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 590 g |
Other characteristics
| Admissible axial force | 146 kN |
| Inner diameter | 40 mm |
| Length | 54 mm |
| Outer diameter | 75 mm |
| Tightening torque fastening screws | 41 Nm |
| Transmissible torque | 3 020 Nm |
| Bolts 12 9 no x size | 7 x M8 x 50 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 121 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 293 N/mm2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel,rotor or similar) on a shaft. For very high torques. Self-centering. Slight axial offset possible during mounting. Concentricity: 0.02 to 0.04mm. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft Rz max. 12.5 µm.
