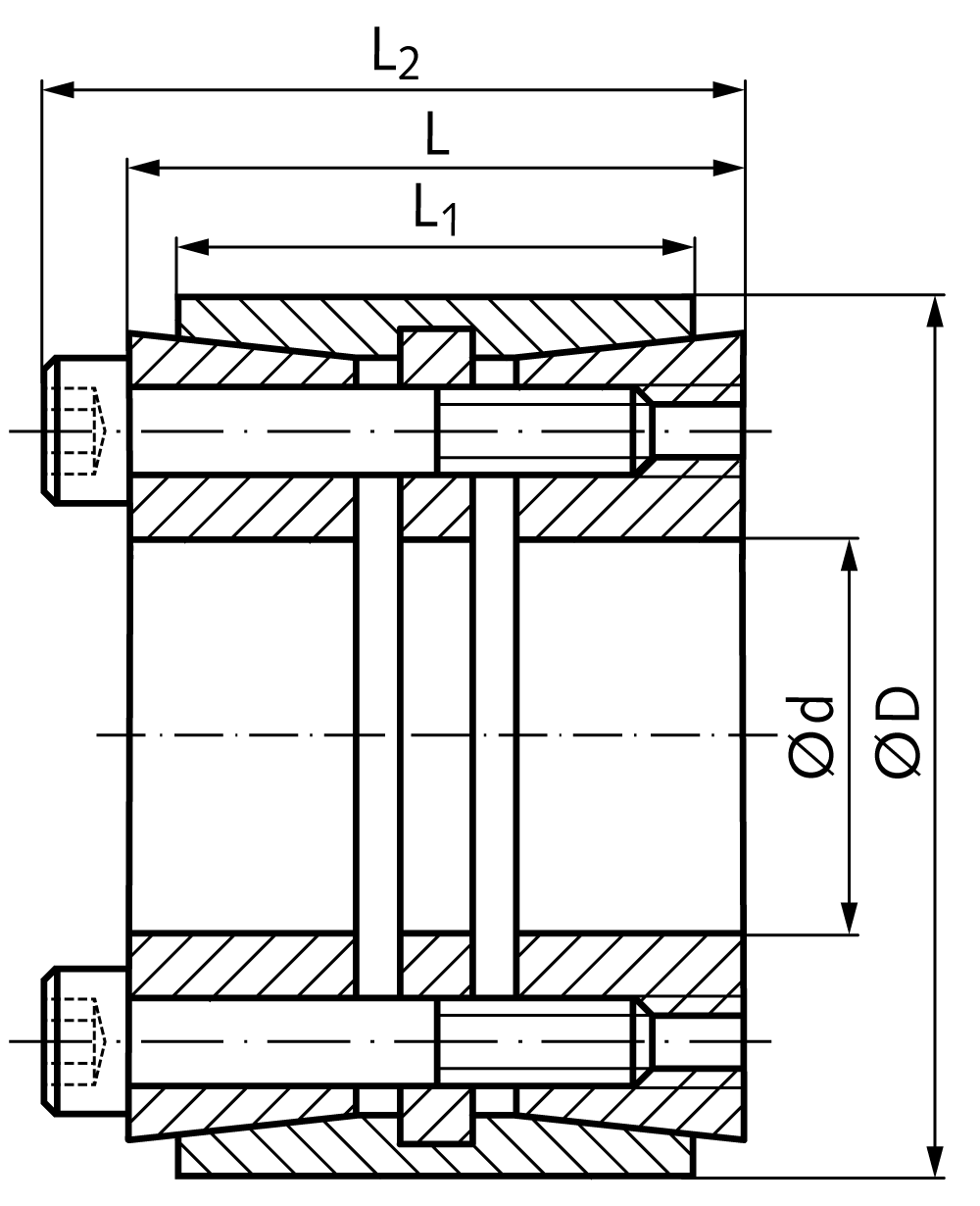

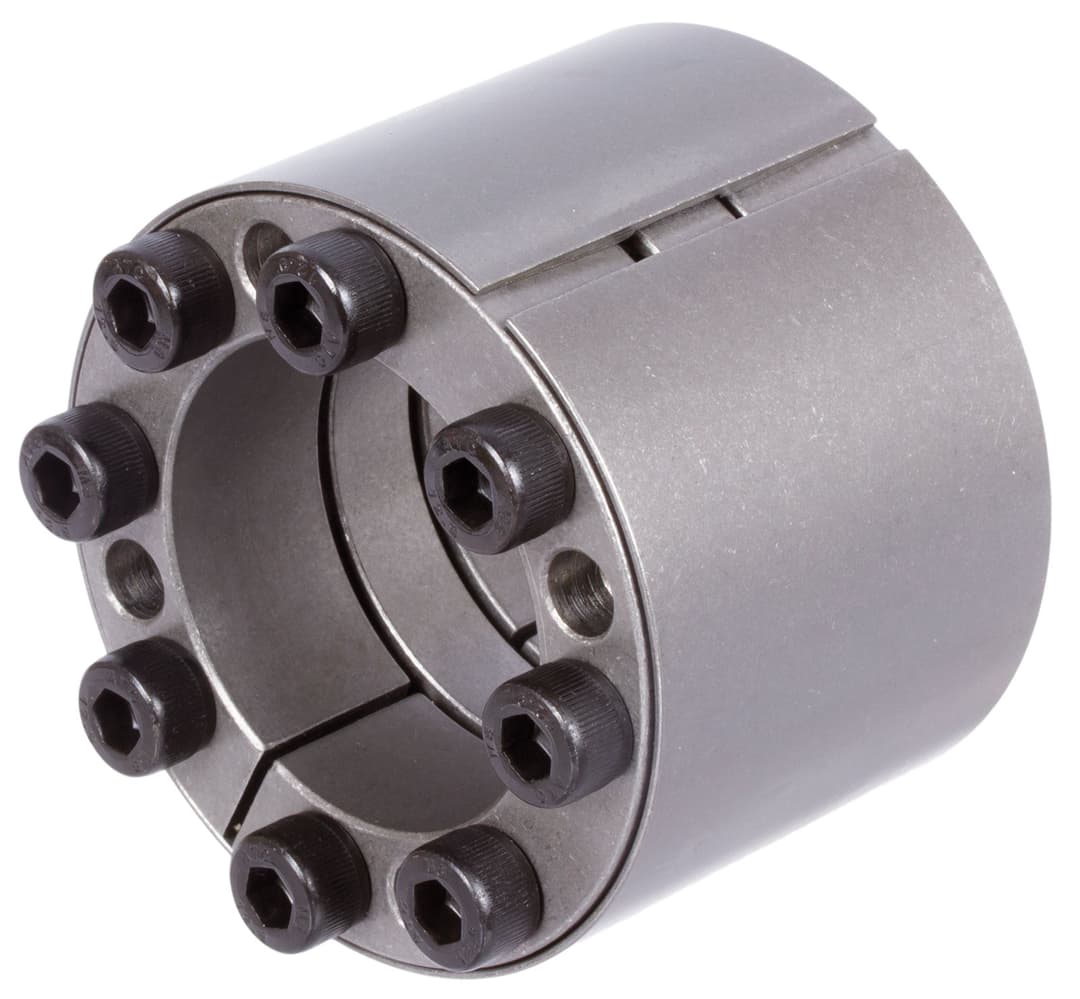

Locking assembly COM-LL bore 40mm size 40x65x45mm
Manufacturer part no. 61551340
$52.80≈ 45.85 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €45.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.17 |
| Total delivered | €73.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 700 g |
| Dimensions | 40x65x45mm |
Other characteristics
| Admissible axial force | 120 kN |
| Inner diameter | 40 mm |
| Length | 45 mm |
| Outer diameter | 65 mm |
| Tightening torque fastening screws | 17 Nm |
| Transmissible torque | 1 920 Nm |
| Bolts 12 9 no x size | 10 x M6 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 94 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 153 N/mm2 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For very high torques. Self-centering. Self-locking. Axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12,5 µm. More sizes up to d=300mm for 524,000Nm are available. Price and delivery time on request.
