MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

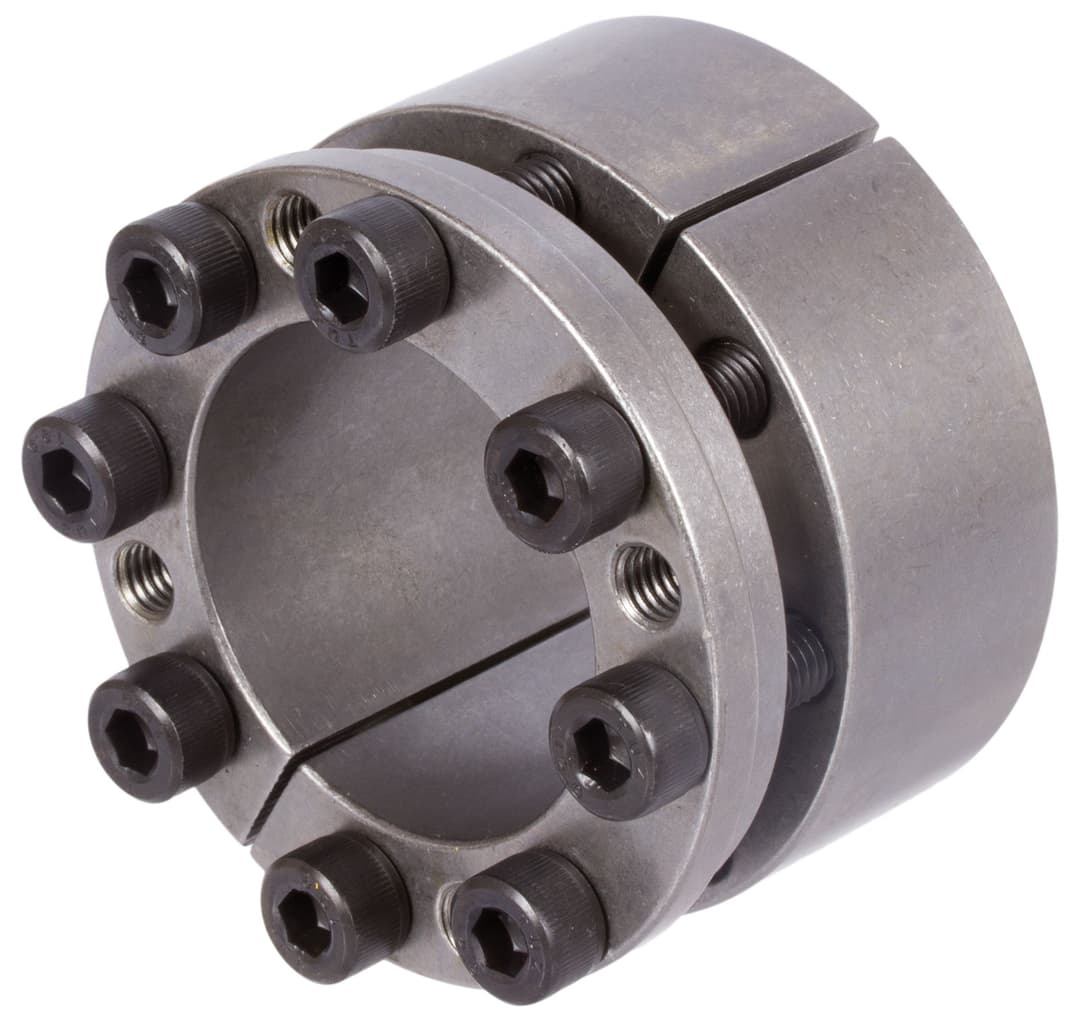

Locking assembly COM-D bore 20mm size 20-47
Manufacturer part no. 61557020
$21.82≈ 18.95 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €18.95 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.79 |
| Total delivered | €40.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 370 g |
Other characteristics

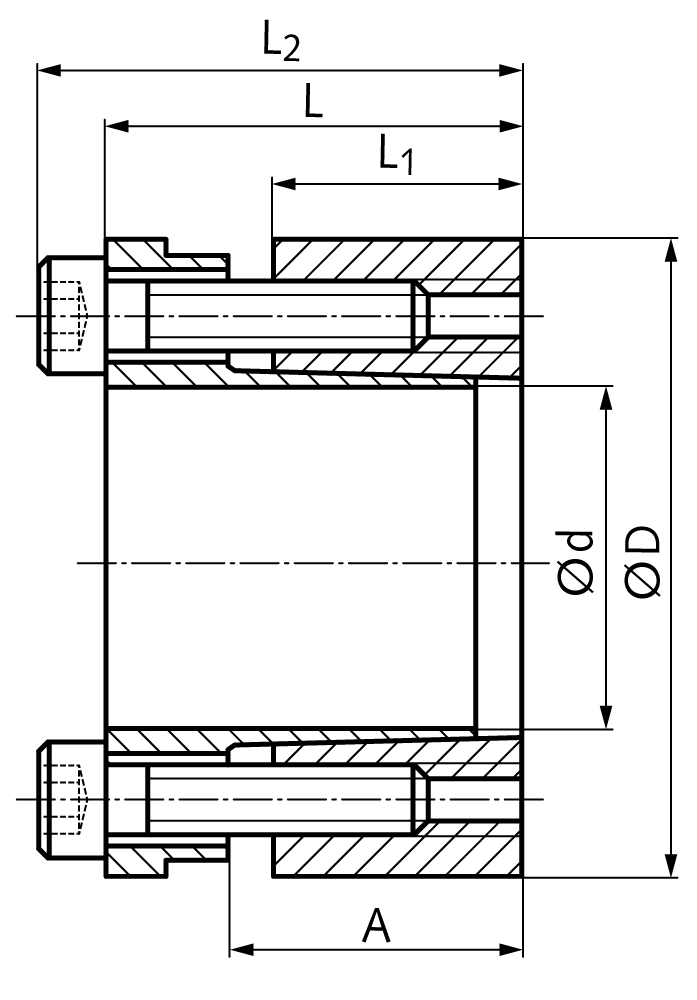

| Admissible axial force | 52 kN |
| Inner diameter | 20 mm |
| Length | 39 mm |
| Outer diameter | 47 mm |
| Tightening torque fastening screws | 17 Nm |
| Transmissible torque | 530 Nm |
| Bolts 12 9 no x size | 6 x M6 x 25 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 118 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 274 N/mm2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For high torques. Self-centering. Slight axial offset possible during mounting. Concentricity: 0.02 to 0.04mm. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft Rz max. 12.5 µm.
