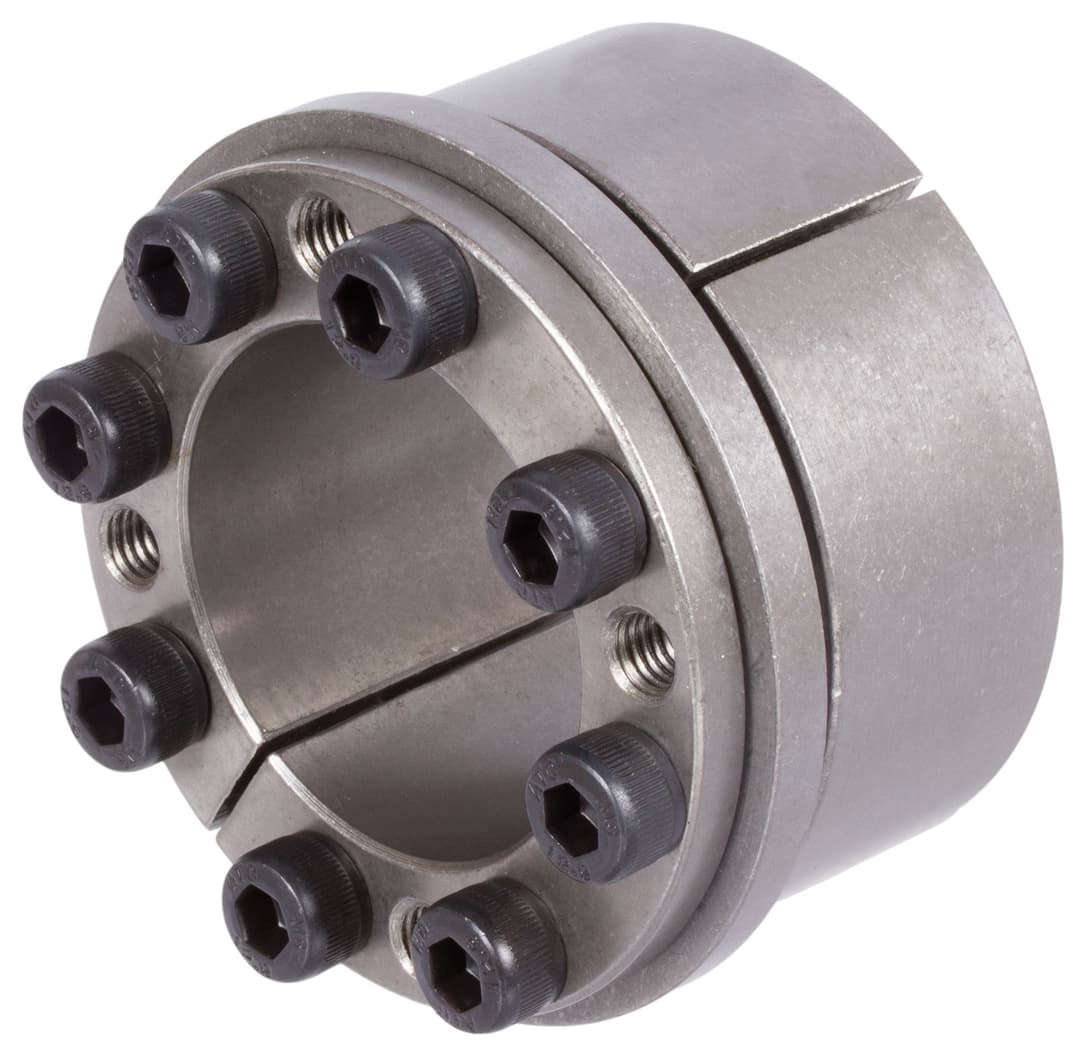

Locking assembly COM-C bore 42mm size 42-75
Manufacturer part no. 61557142
$49.33≈ 42.84 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €42.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.57 |
| Total delivered | €69.41 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.05 kg |
Other characteristics
| Admissible axial force | 63 kN |
| Inner diameter | 42 mm |
| Length | 47 mm |
| Outer diameter | 75 mm |
| Tightening torque fastening screws | 41 Nm |
| Transmissible torque | 1 320 Nm |
| Bolts 12 9 no x size | 6 x M8 x 30 |
| Design shape | With flange, mechanical |
| Hub surface pressure | 75 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 135 N/mm2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium high torques. Self-centering. No axial offset during mounting. Concentricity: 0.02 to 0.04mm. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft Rz max. 12.5 µm.
