MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

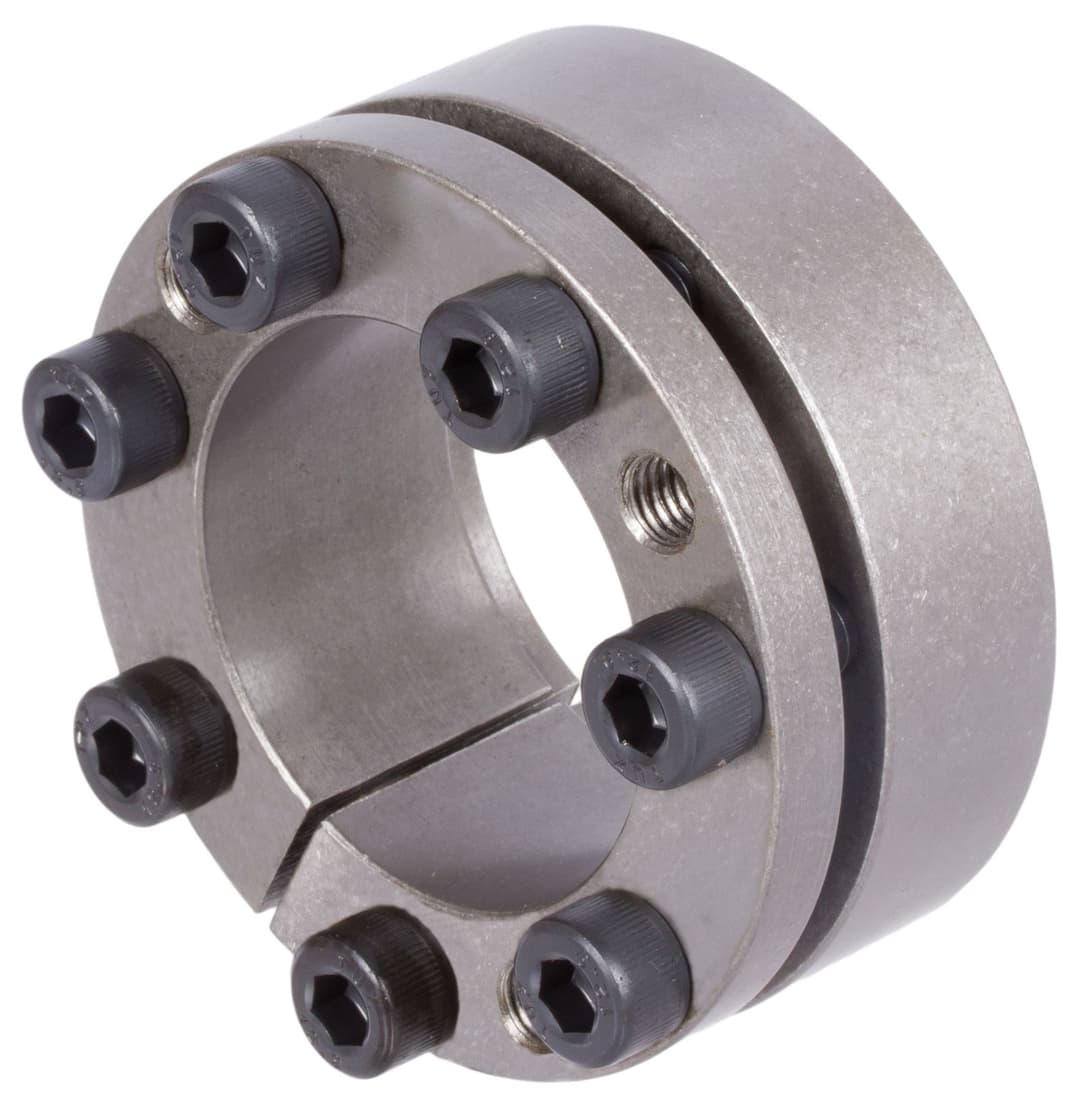

Locking assembly COM-CB1 bore 95mm size 95x135x40mm
Manufacturer part no. 61557395
$107.66≈ 93.50 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €93.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.70 |
| Total delivered | €130.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.9 kg |

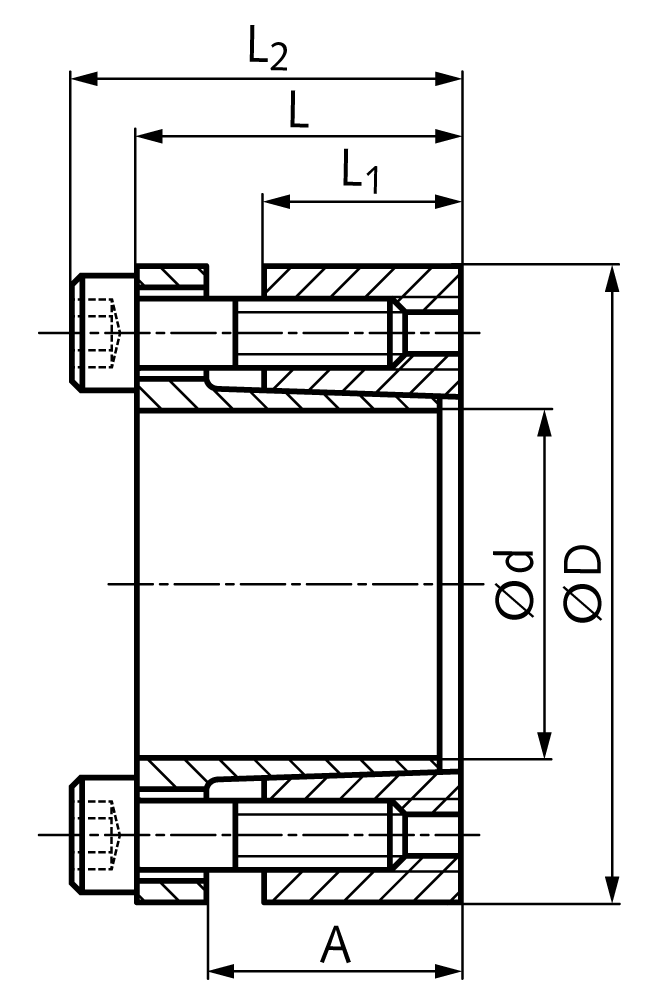

| Dimensions | 95x135x40mm |
Other characteristics
| Admissible axial force | 230 kN |
| Inner diameter | 95 mm |
| Length | 40 mm |
| Outer diameter | 135 mm |
| Tightening torque fastening screws | 70 Nm |
| Transmissible torque | 11 000 Nm |
| Bolts 12 9 no x size | 10 x M10 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 140 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 271 N/mm2 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium high torques. Self-centering. Self-locking. Axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12.5 µm. More sizes up to d=200mm for 69,000Nm are available. Price and delivery time on request.
