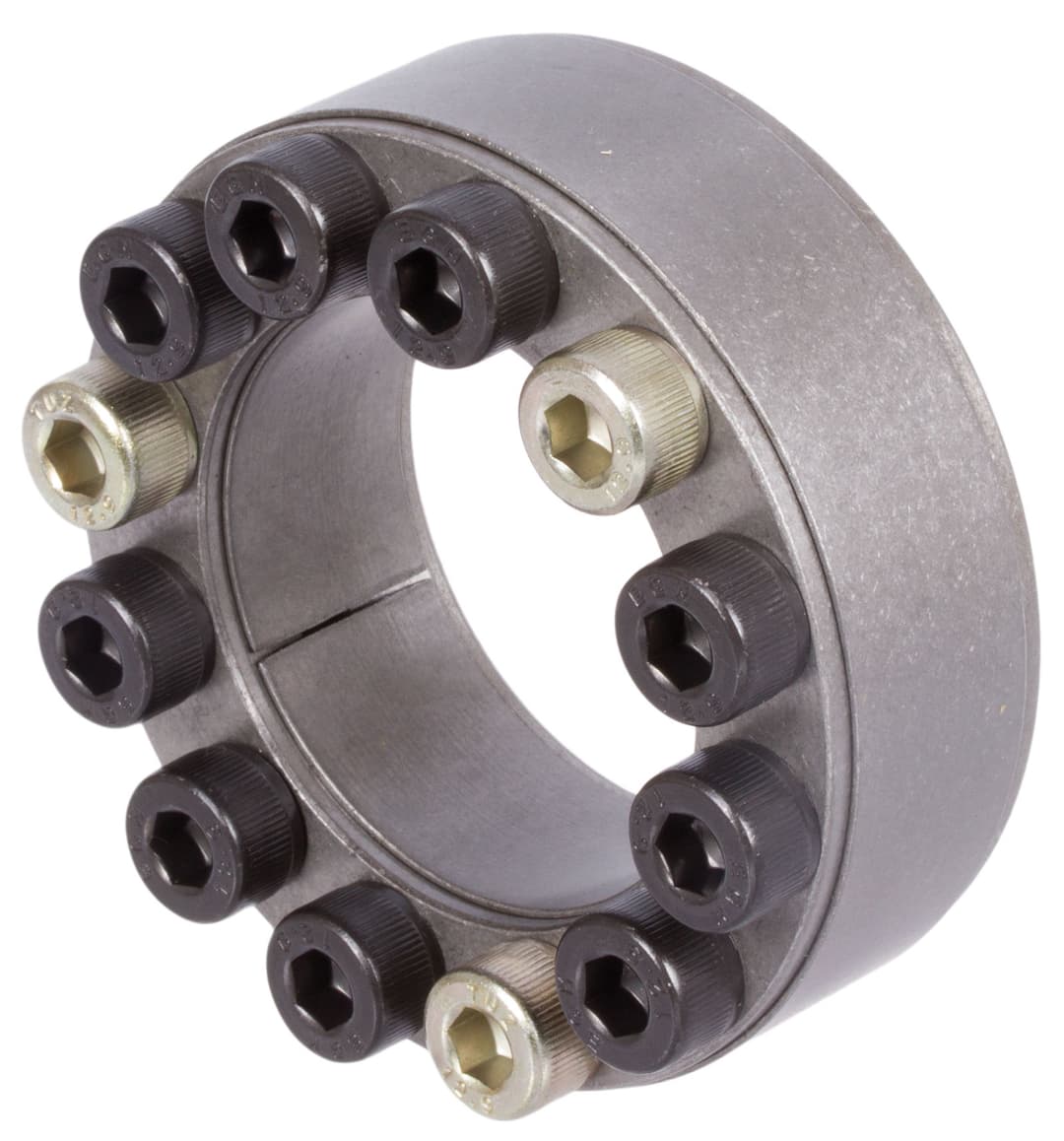

Locking assembly COM-A bore 75mm size 75-115
Manufacturer part no. 61557500
$83.79≈ 72.77 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €72.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.55 |
| Total delivered | €105.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.33 kg |
Other characteristics
| Admissible axial force | 135 kN |
| Inner diameter | 75 mm |
| Length | 28 mm |
| Outer diameter | 115 mm |
| Tightening torque fastening screws | 70 Nm |
| Transmissible torque | 4 800 Nm |
| Bolts no x size | 14 x M10 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 119 N/mm2 |
| Material | Steel |
| Self centering | No |
| Surface | Blank |
| Type | COM-A |
Description
Material: Steel. Clamping bush for medium high torques; not self-centering. Fit: Shaft h8. Hub H8. Surface roughness Rz max. 12.5 µm. Mounting: Slightly oil the clamping set before mounting, do not use molibdenum disulphide or grease. Tighten the screws evenly and crosswise in several steps. Demounting: Due to the large cone angle, the clamping set releases on its own after the screws have been fully unfastened. There are three larger threads cut into the front ring, which serve to remove this ring. Ts – Fastening Torque T – Transmittable Torque F – Transmittable Axial Force P – Surface Pressure onto Hub
