MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

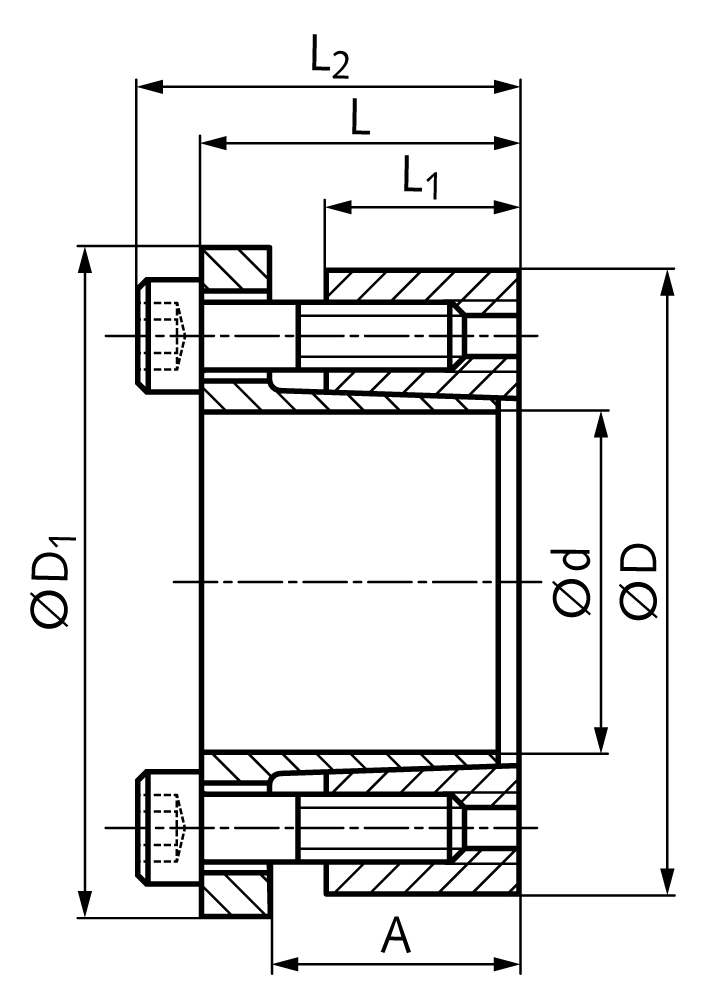

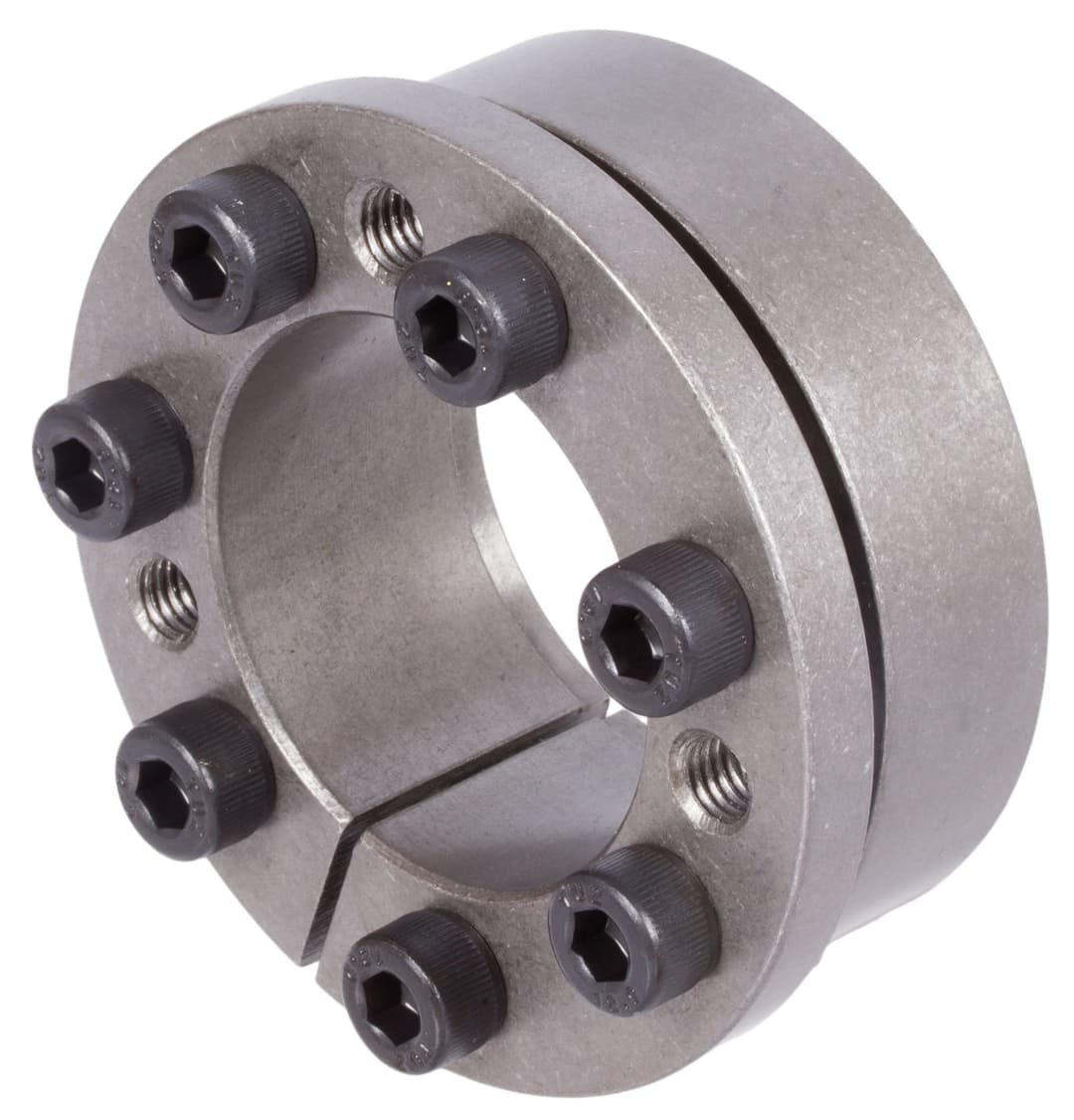

Locking assembly COM-CB2 bore 32mm size 32x60x28mm
Manufacturer part no. 61557532
$24.06≈ 20.89 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €20.89 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.18 |
| Total delivered | €43.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 390 g |
| Dimensions | 32x60x28mm |
Other characteristics
| Admissible axial force | 40 kN |
| Inner diameter | 32 mm |
| Length | 28 mm |
| Outer diameter | 60 mm |
| Tightening torque fastening screws | 17 Nm |
| Transmissible torque | 730 Nm |
| Bolts 12 9 no x size | 8 x M6 |
| Design shape | With flange, mechanical |
| Hub surface pressure | 116 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 222 N/mm2 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium high torques. Self-centering. Self-locking. No axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12.5 µm. More sizes up to d=200mm for 48,000Nm are available. Price and delivery time on request.
