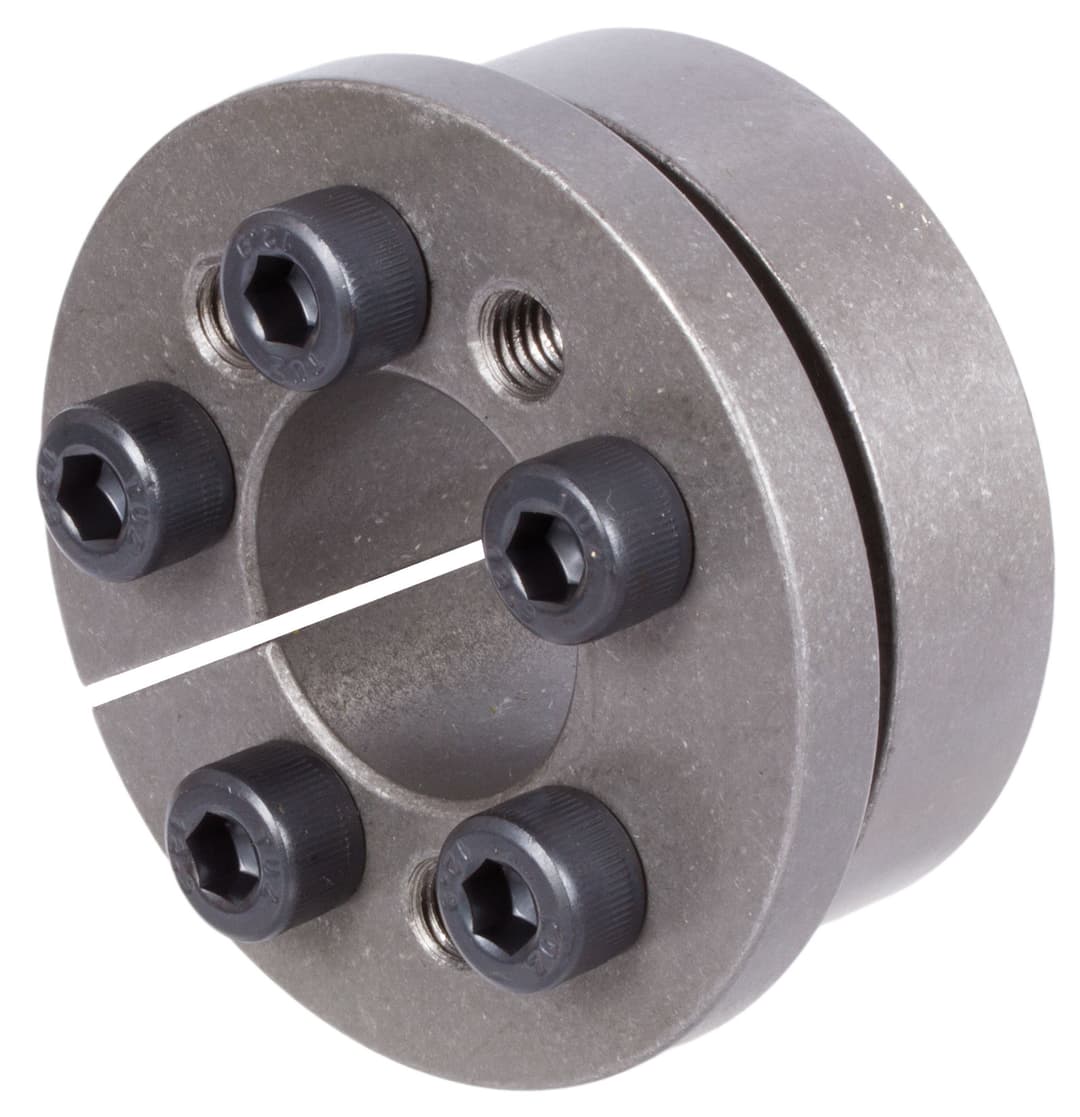

Locking assembly COM-CB3 heavy series bore 42mm size 42x80x33mm
Manufacturer part no. 61557942
$39.89≈ 34.64 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €34.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.93 |
| Total delivered | €59.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 880 g |

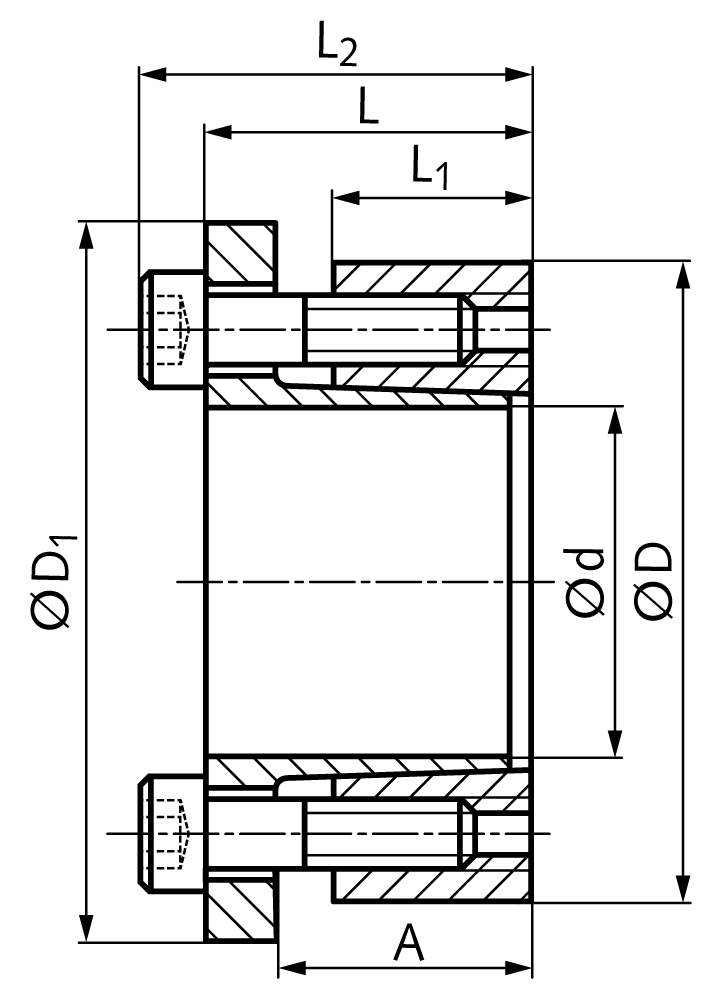

| Dimensions | 42x80x33mm |
Other characteristics
| Admissible axial force | 70 kN |
| Inner diameter | 42 mm |
| Length | 33 mm |
| Outer diameter | 80 mm |
| Tightening torque fastening screws | 41 Nm |
| Transmissible torque | 1 500 Nm |
| Bolts 12 9 no x size | 7 x M8 |
| Design shape | With flange, mechanical |
| Hub surface pressure | 120 N/mm2 |
| Material | Steel |
| Row | Heavy |
| Self centering | Yes |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. 3 Ranges of sizes, for middle, higher and very high torques. Self-centering. Self-locking. No axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub/shaft Rz max. 12,5 µm.
