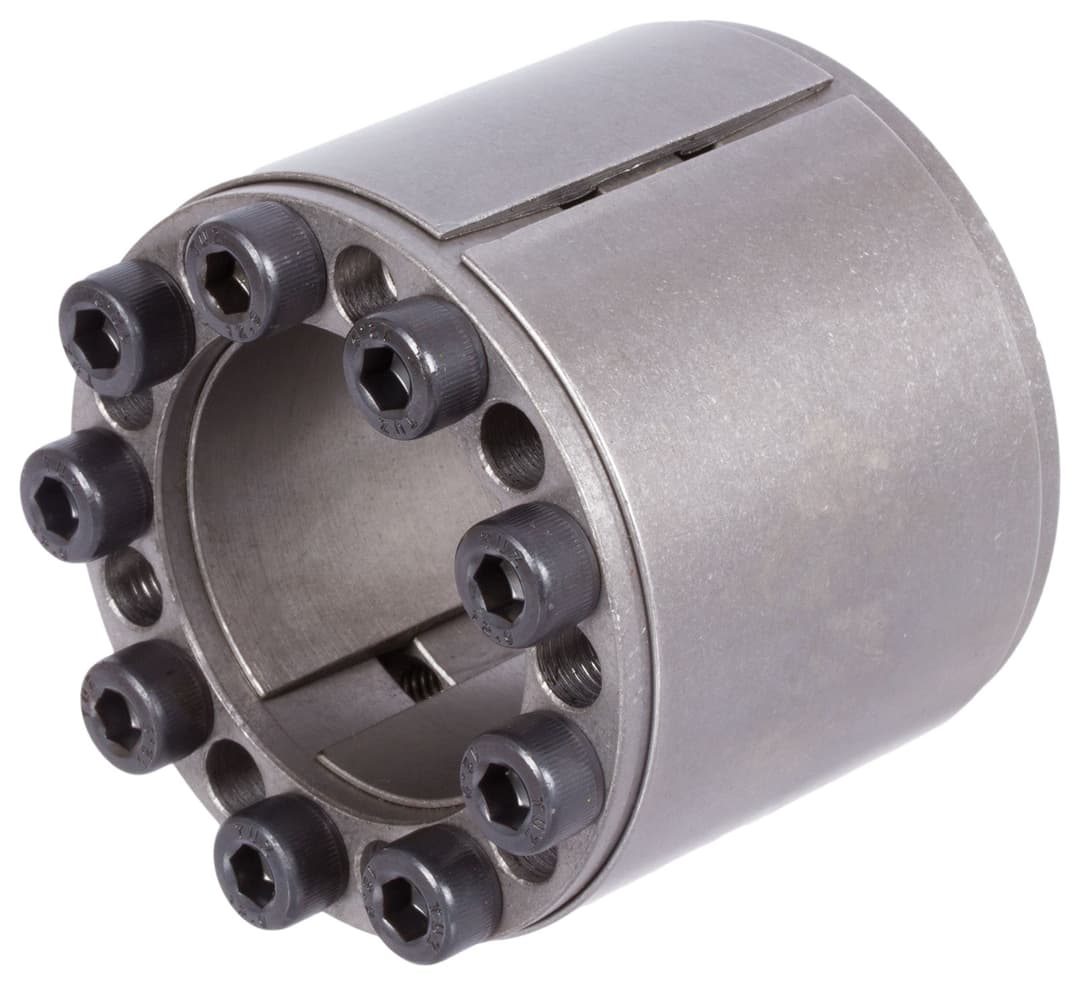

Locking assembly COM-LLH bore 70mm size 70x110x78mm
Manufacturer part no. 61558070
$172.68≈ 149.96 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €149.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €32.99 |
| Total delivered | €197.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3 kg |

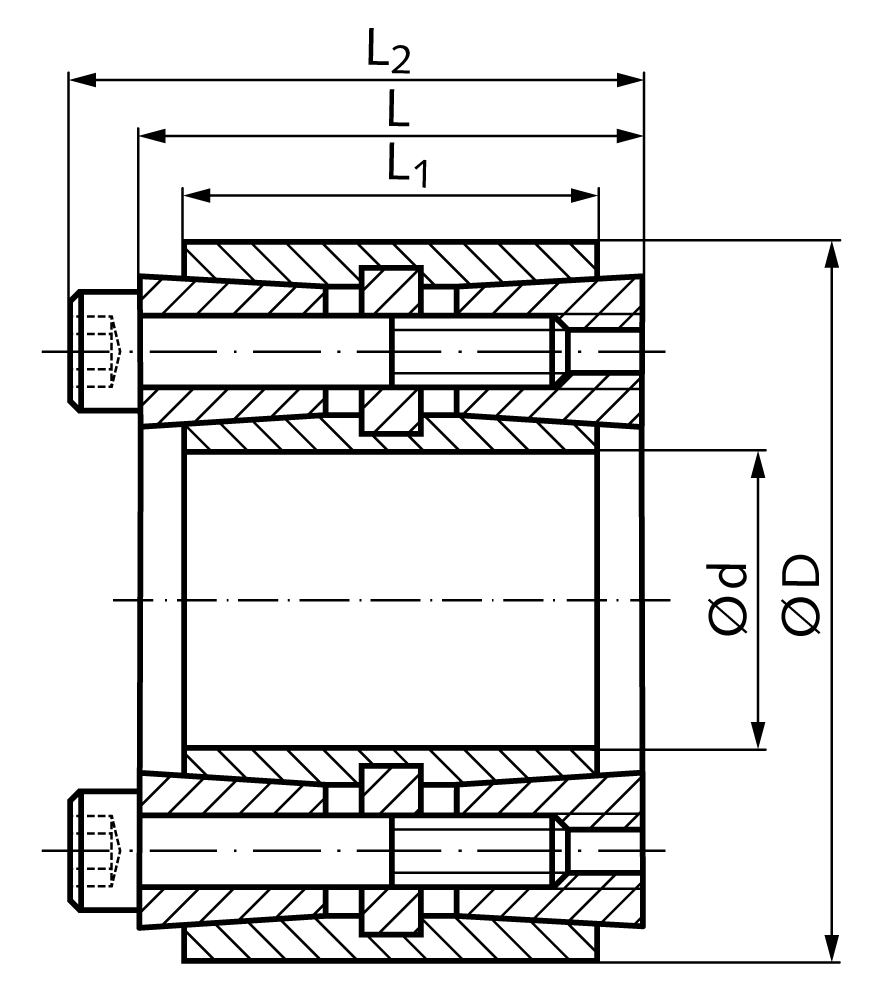

| Dimensions | 70x110x78mm |
Other characteristics
| Admissible axial force | 290 kN |
| Inner diameter | 70 mm |
| Length | 78 mm |
| Outer diameter | 110 mm |
| Tightening torque fastening screws | 83 Nm |
| Transmissible torque | 10 200 Nm |
| Bolts 12 9 no x size | 10 x M10 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 100 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 162 N/mm2 |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For very high torques. Very good distribution of pressure High resistant against bending forces. Self-centering. Self-locking. No axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12.5 µm. More sizes up to d=600mm for 977,000Nm are available. Price and delivery time on request.
