MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

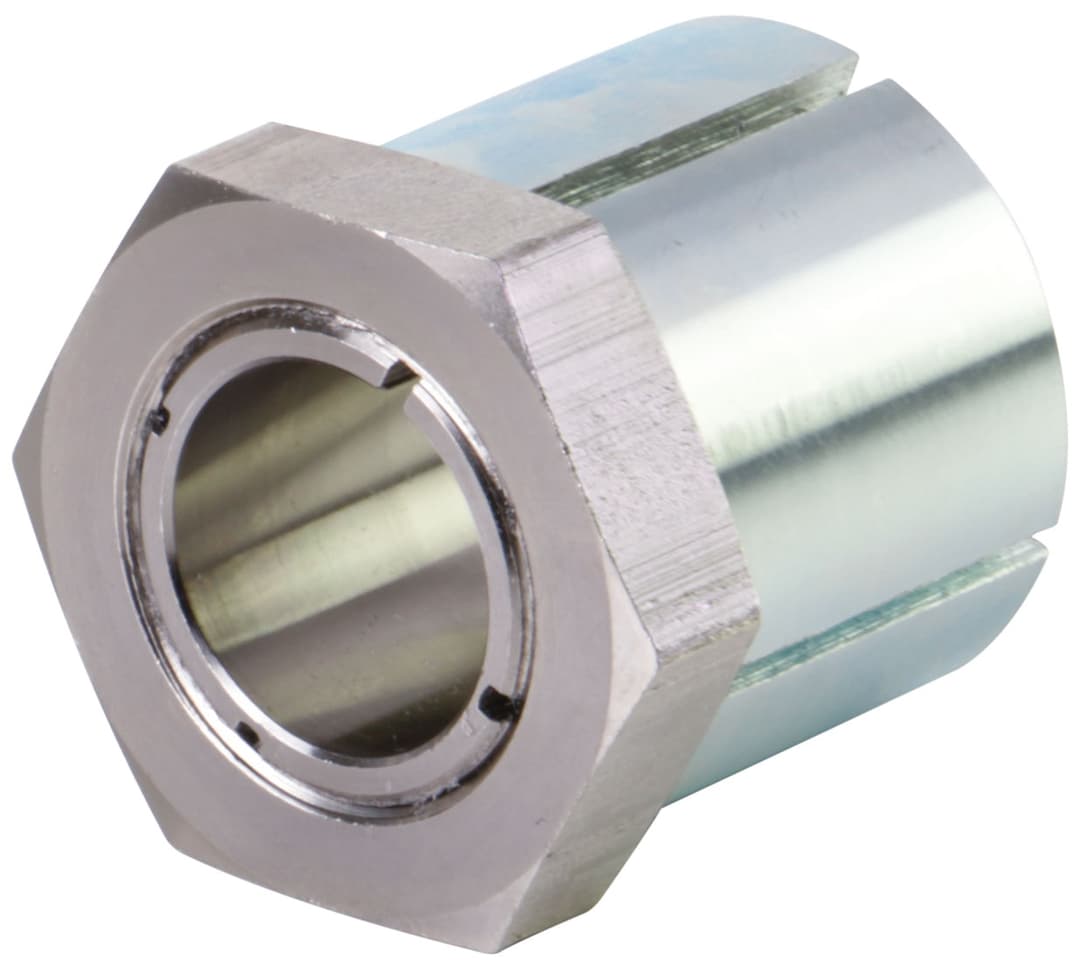

locking assembly TOK type B bore 16mm steel zinc/nickel plated
Manufacturer part no. 61558316
$29.58≈ 25.69 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €25.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.14 |
| Total delivered | €48.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 71 g |
Other characteristics
| Admissible axial force | 13.3 kN |

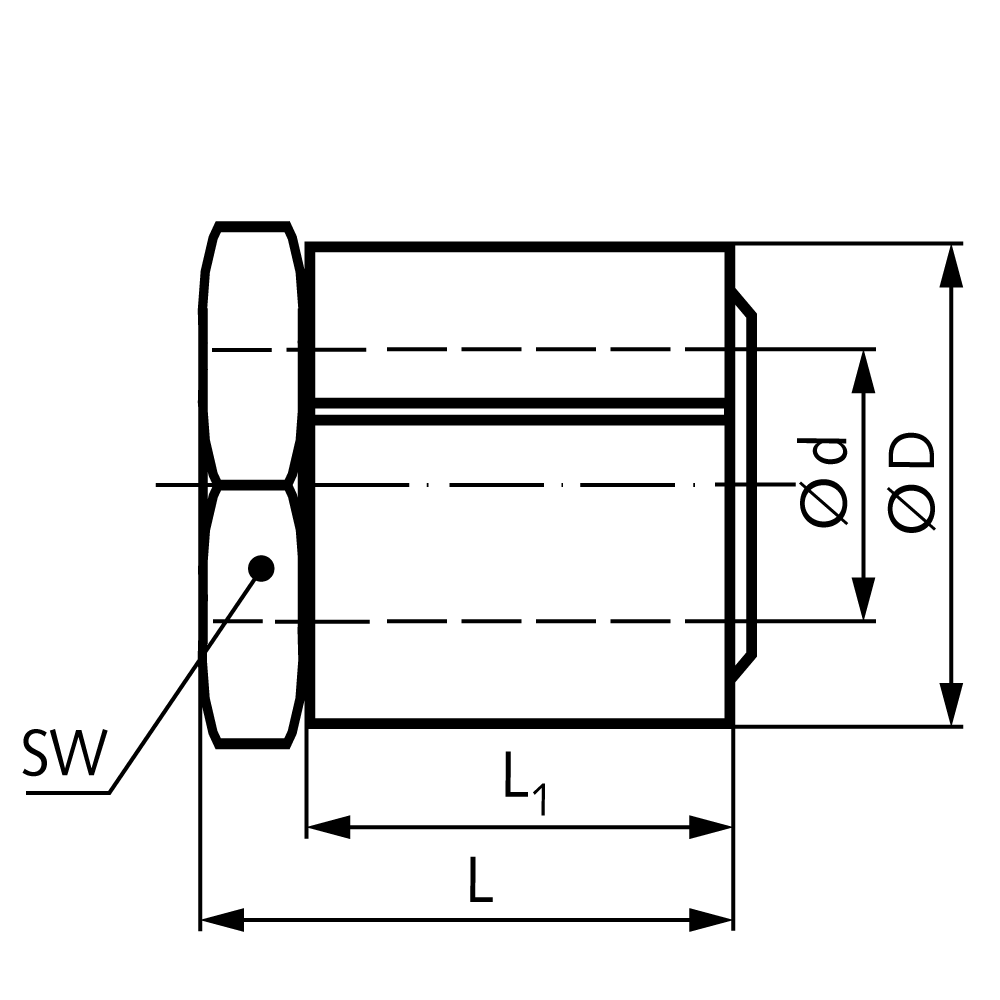

| Inner diameter | 16 mm |
| Length | 28 mm |
| Outer diameter | 26 mm |
| Tightening torque fastening screw | 65 Nm |
| Transmissible torque | 106 Nm |
| Wrench size | 27 mm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 99 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 156 N/mm2 |
| Surface | Zinc-plated / Nickel-plated |
Description
Material: Steel, withcorrosion protection (inner bush and nut nickel-plated, outer bush zinc-plated). For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium torques. Self-centering. Axial offset during mounting (can be compensated by correct positioning).
