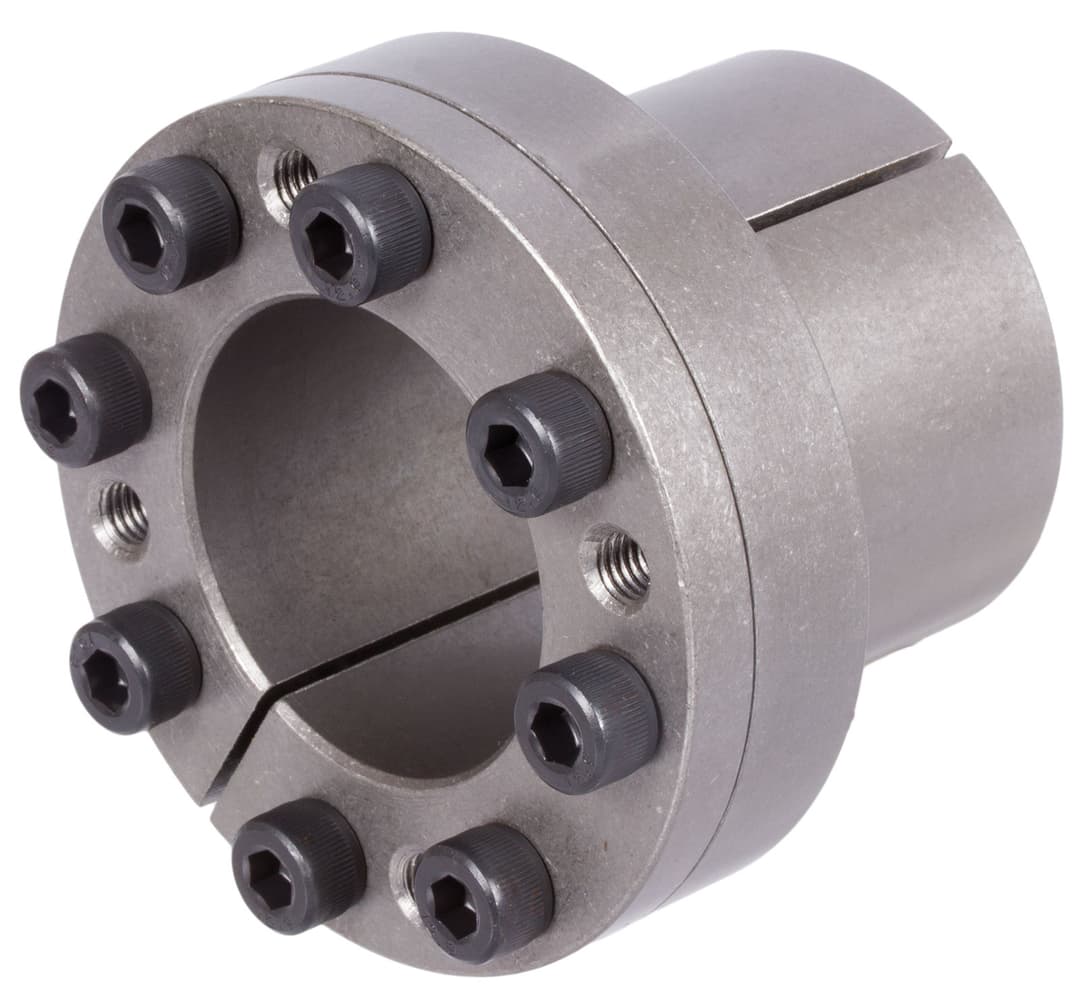

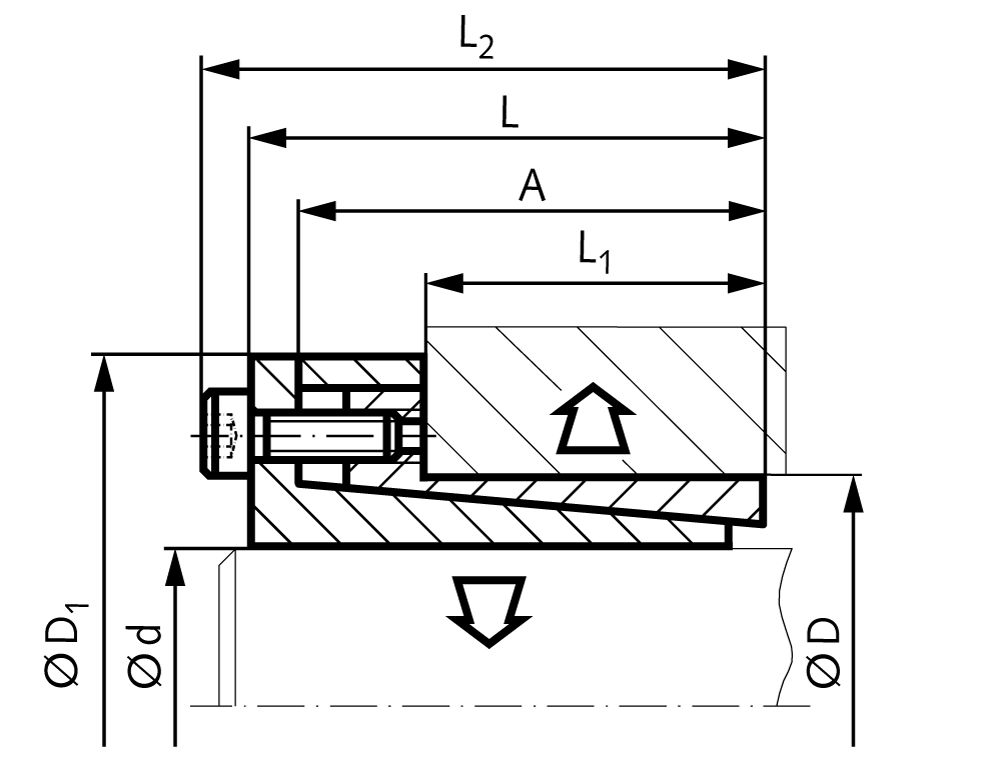

Locking assembly COM-B bore 7mm size 7-15
Manufacturer part no. 61560700
$22.67≈ 19.69 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €19.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.94 |
| Total delivered | €41.63 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
Other characteristics
| Admissible axial force | 7 kN |
| Inner diameter | 7 mm |
| Length | 25 mm |
| Outer diameter | 15 mm |
| Tightening torque fastening screws | 5 Nm |
| Transmissible torque | 24 Nm |
| Bolts 12 9 no x size | 3 x M4 |
| Design shape | With flange, mechanical |
| Hub surface pressure | 111 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 223 N/mm2 |
| Surface | Blank |
