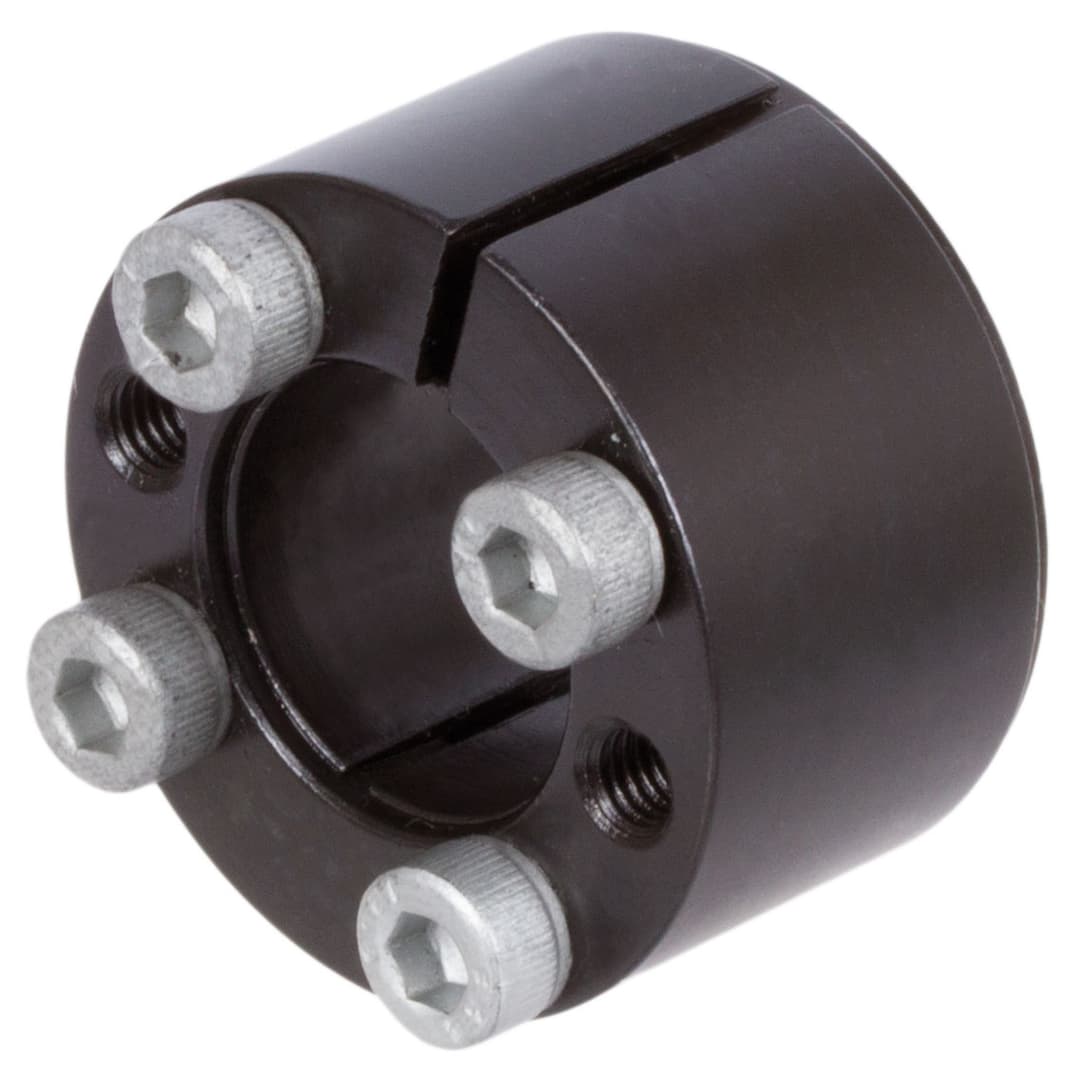

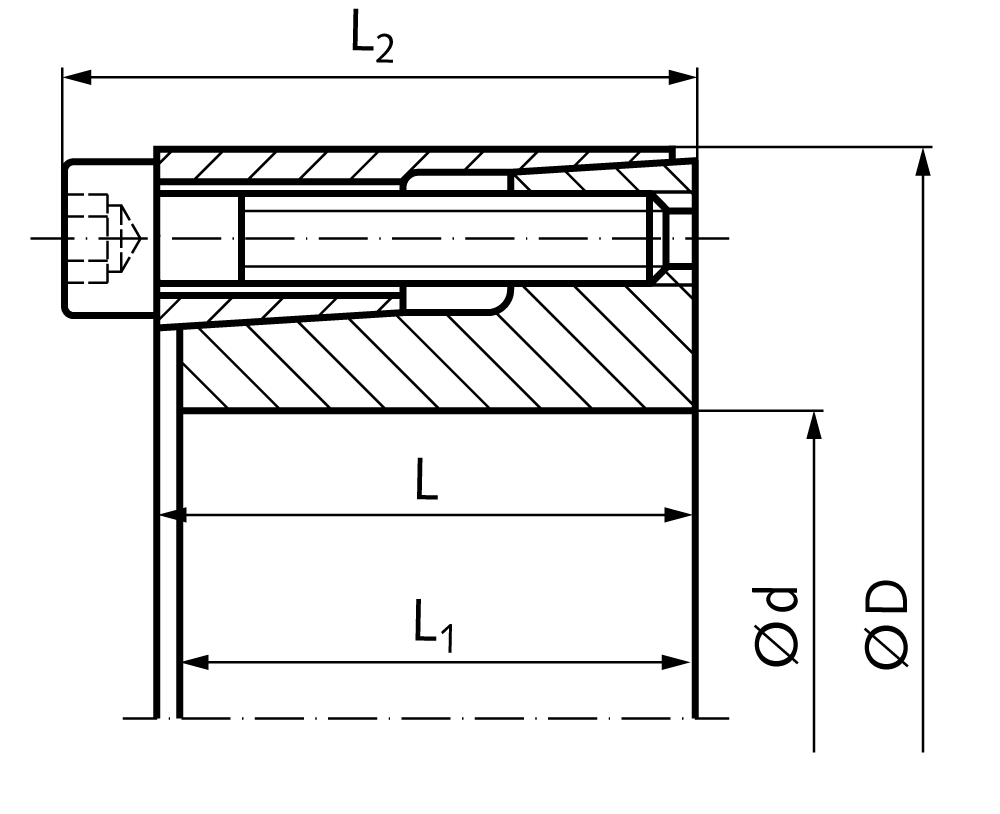

Locking assembly BAR bore 35mm QPQ-coated
Manufacturer part no. 61573500
$86.97≈ 75.53 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €75.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.11 |
| Total delivered | €108.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 360 g |
Other characteristics
| Admissible axial force | 47 kN |
| Inner diameter | 35 mm |
| Length | 31 mm |
| No of bolts pcs | 8 |
| Outer diameter | 60 mm |
| Tightening torque fastening screws | 17 Nm |
| Transmissible torque | 820 Nm |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 100 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 172 N/mm2 |
| Surface | QPQ-coated |
Description
Material: Steel. – For fixing a hub on a shaft. – QPQ coated: High corrosion resistance, improved fatigue strength, primarily food safe (further information see below). – For medium torques. – Self-centering. – Slight axial offset possible during assembly. Fit, Surface: Due to the special design of the BAR clamping set even rough fits can be bridged with excellent self centering capacity. Shaft and hub up to Quality h8/H8. Surface finish for shaft and hub Rz < 12 µm. QPQ Surface Properties: Very good corrosion resistance, better than hard chrome or chem. nickel. Corrosion resistance in the salt spray test SS CASS in accordance with DIN 50021. Layer thickness of 10 – 25 µm possible. For medium operational demands we recommend a layer thickness of 15 µm at a 90 minute treatment. Only very small changes in dimensions (only 5 µm), as the surface modification is achieved through diffusion and not application. Surface hardness same as clamping set material = 350 HV. Improved wear resistance, no fretting corrosion, no cold shut. Increased endurance strength, sometimes up to 100% higher. Is completely safe to use with food as long as there is no contact with any acidic substances with a pH-value of = 4.
