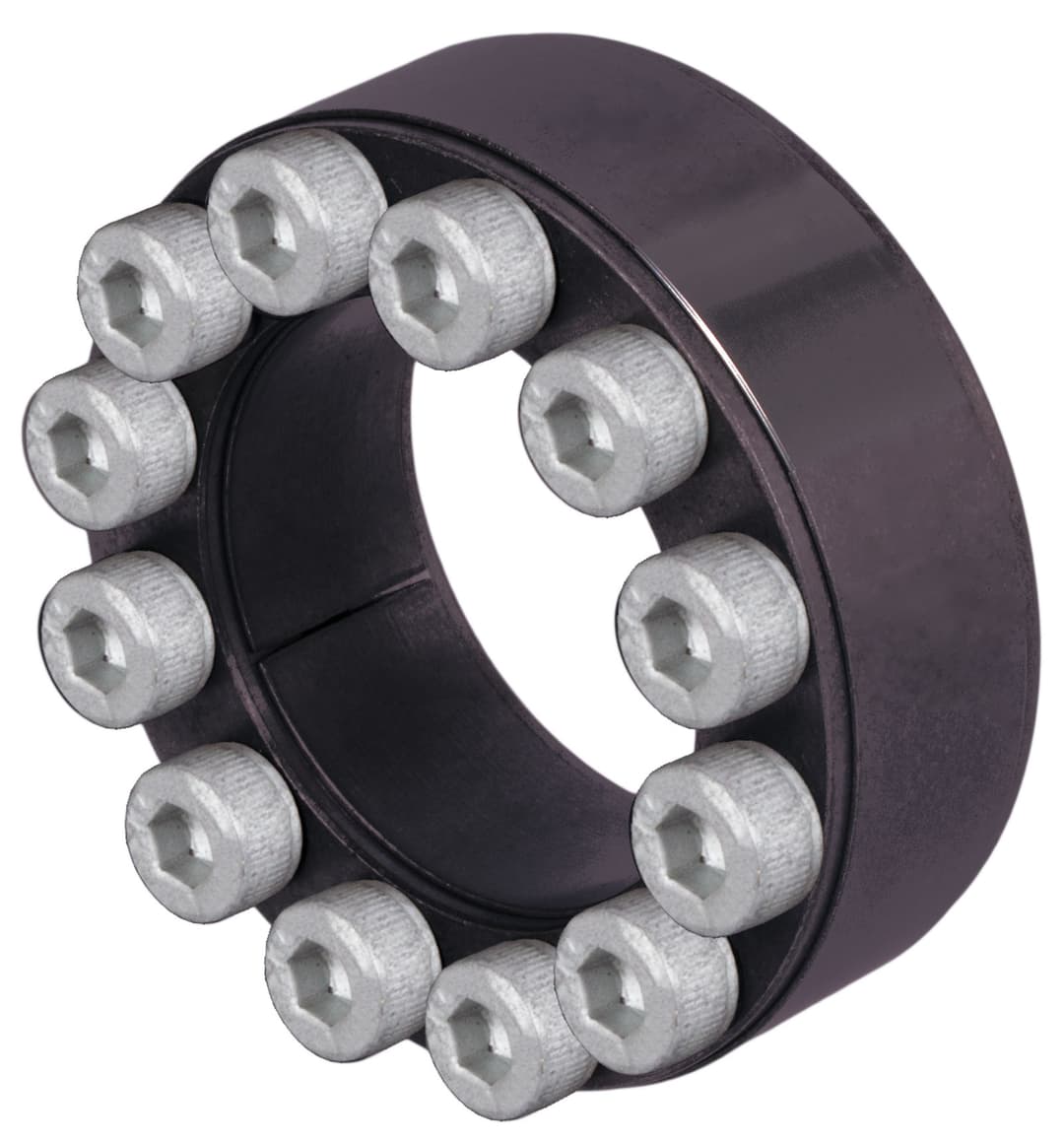

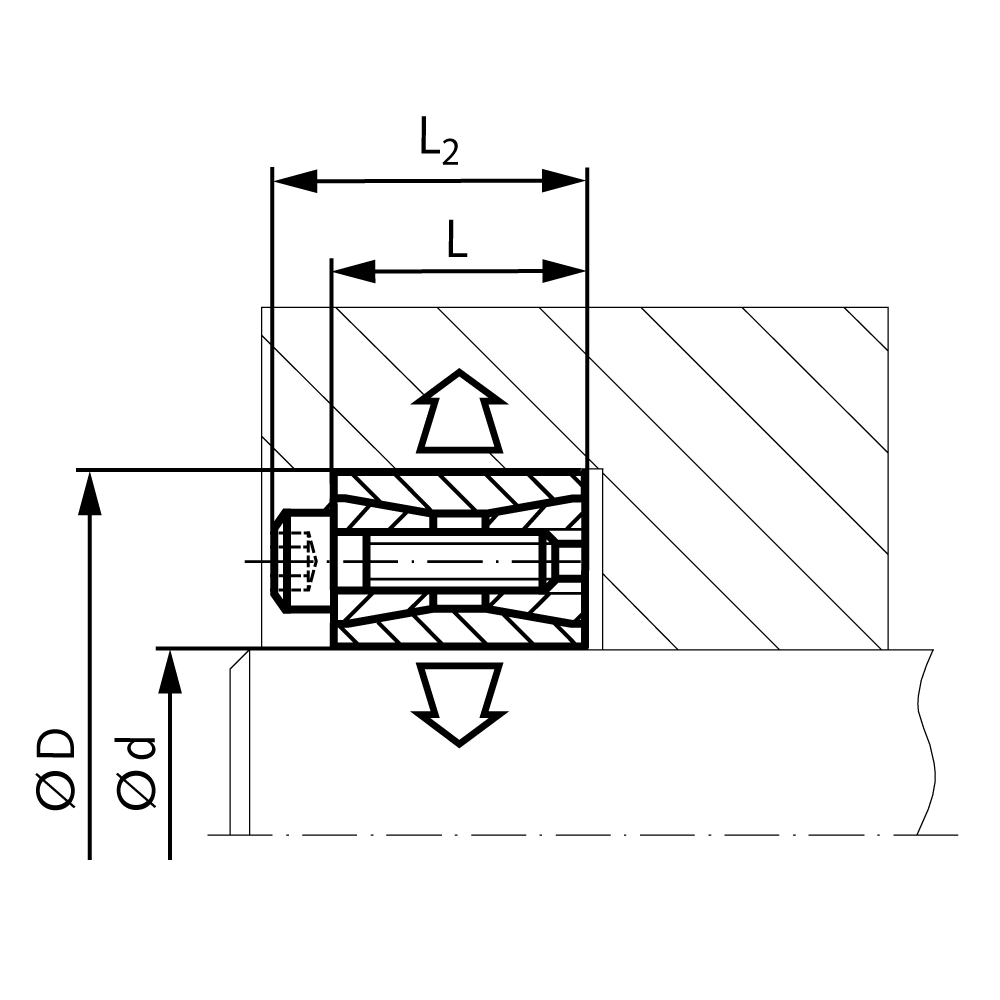

Locking assembly COM-A bore 15mm size 15-42 QPQ-coated
Manufacturer part no. 61577515
$23.02≈ 19.99 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €19.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.00 |
| Total delivered | €41.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics
| Admissible axial force | 27 kN |
| Inner diameter | 15 mm |
| Length | 20 mm |
| Outer diameter | 42 mm |
| Tightening torque fastening screws | 15 Nm |
| Transmissible torque | 200 Nm |
| Bolts no x size | 8 x M6 x 18 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 282 N/mm2 |
| Material | Steel |
| Self centering | No |
| Surface | QPQ-coated |
| Type | COM-A QPQ |
Description
Material: Steel, QPQ coated. High corrosion resistance,improved fatigue strength, primarily food safe. Clamping bush for medium high torques; not self-centering. Fit: Shaft h8. Hub H8. Surface roughness hub/shaft Rz max. 12.5 µm. Mounting: Slightly oil the clamping set before mounting, do not use molibdenum disulphide or grease. Tighten the screws evenly and crosswise in several steps. Demounting: Due to the large cone angle, the clamping set releases on its own after the screws have been fully unfastened. There are three larger threads cut into the front ring, which serve to remove this ring. Ts – Fastening Torque T – Transmittable Torque F – Transmittable Axial Force P – Surface Pressure onto Hub QPQ Surface Properties: Very good corrosion resistance, betterthan hard chrome or chem. nickel. Corrosion resistance in the salt spraytest SS CASS in accordance with DIN 50021. Layer thickness of 10 – 25 µmpossible. For medium operational demands we recommend a layer thicknessof 15 µm at a 90 minute treatment. Only very small changes in dimensions(only 5 µm), as the surface modification is achieved through diffusionand not application. Surface hardness same as clamping set material =350 HV. Improved wear resistance, no fretting corrosion, no cold shut.Increased endurance strength, sometimes up to 100% higher. Is completelysafe to use with food as long as there is no contact with any acidicsubstances with a pH-value of = 4.
