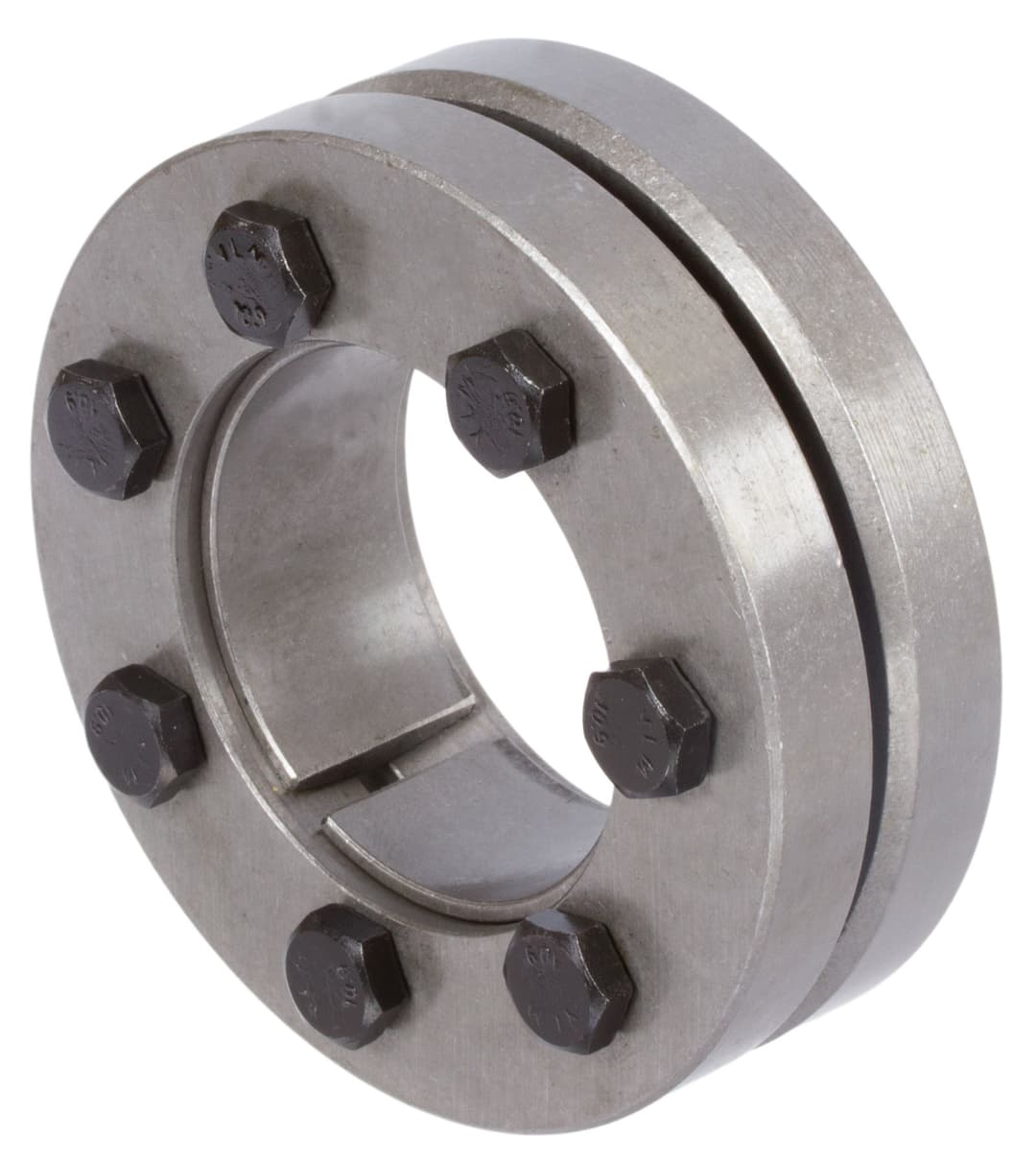

Shrink disk ST-B inner diameter 24mm
Manufacturer part no. 61587024
$22.56≈ 19.59 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €19.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.92 |
| Total delivered | €41.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Inner diameter | 24 mm |
| Length | 19.5 mm |
| Outer diameter | 50 mm |
| Tightening torque fastening screws | 4 Nm |
| Bolts no x size | 6 x M5 |
| Design shape | Shrunk disks / Shaft couplings |
| Material | Steel |
| Self centering | No |
| Shaft diameter | 19-21 mm |
| Shaft surface pressure | 292 N/mm2 |
| Surface | Blank |
| Transmissible torque | 170 – 240 Nm |
| Type | ST-B |
Description

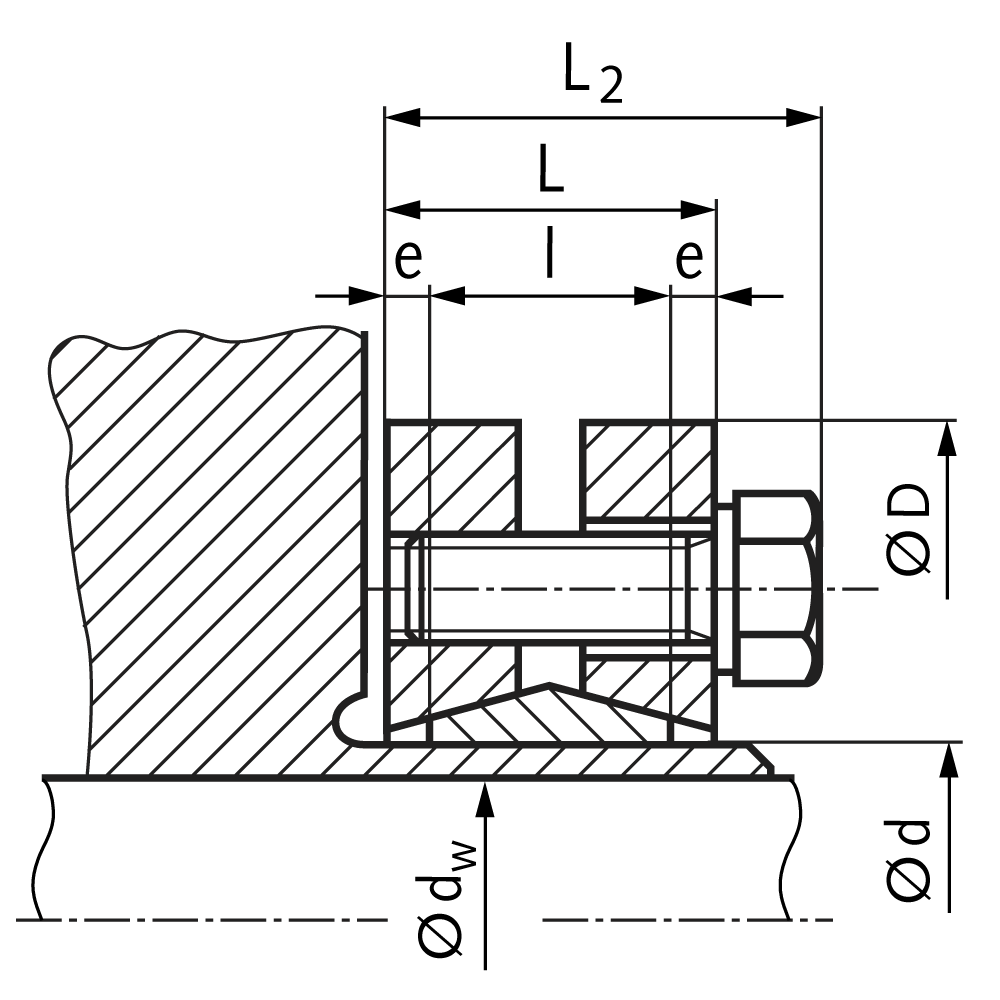

Material: Steel. Characteristics: – High torques. – No axial shaft-hub movement. – Quick mounting. – Quick demounting. Tolerances, Surface Roughness: Highest permissible surface roughness: Rt=12.5µm. Largest permissible tolerances for the shaft: h8. Tolerances for dw/d: H8 / h8. Axial Displacement: No axial movement between hub and shaft can occur while fastening the screws. Other sizes up to inner diameter 300mm on request.
