MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

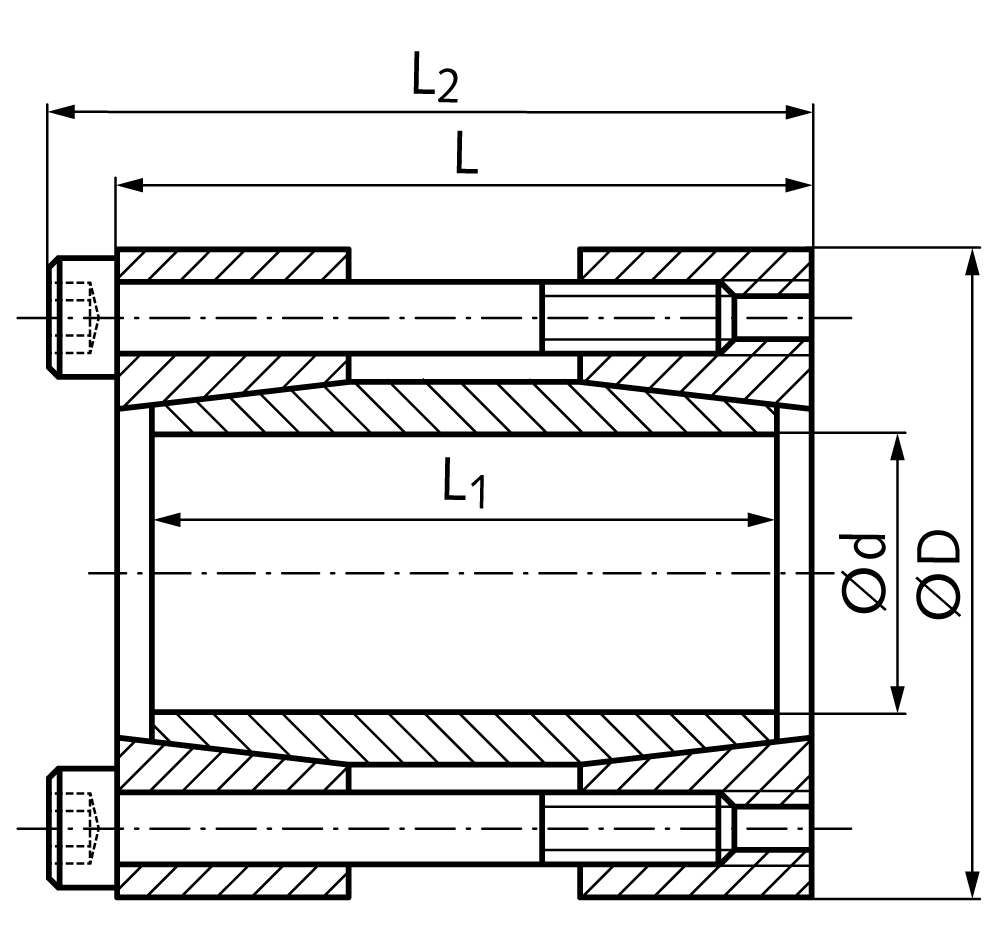

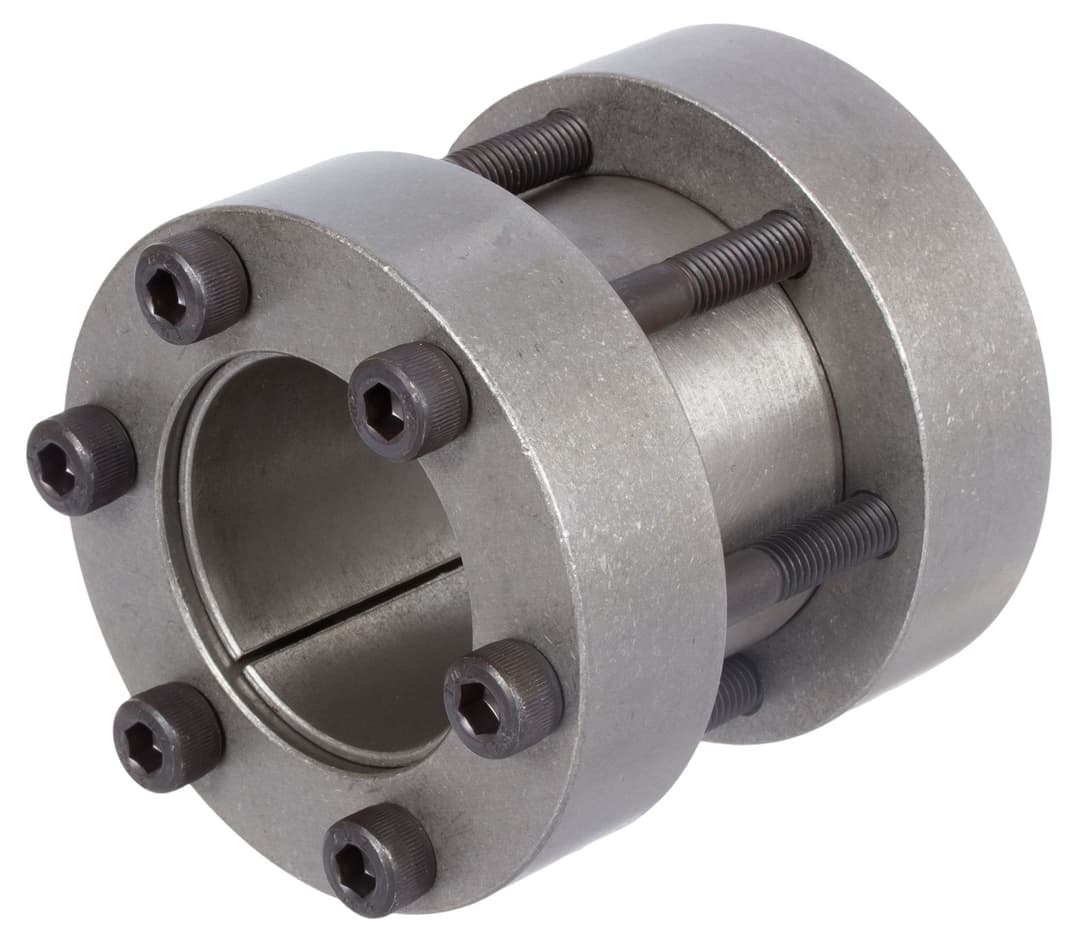

Locking assembly ST-K bore 50mm size 50x90x85mm
Manufacturer part no. 61588050
$90.79≈ 78.84 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €78.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.77 |
| Total delivered | €112.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2 kg |
| Dimensions | 50x90x85mm |
Other characteristics
| Admissible axial force | 68 kN |
| Inner diameter | 50 mm |
| Length | 85 mm |
| Outer diameter | 90 mm |
| Transmissible torque | 1 670 Nm |
| Bolts 12 9 no x size | 6xM8 |
| Design shape | Shrunk disks / Shaft couplings |
| Material | Steel |
| Self centering | No |
| Shaft surface pressure | 64 N/mm2 |
| Surface | Blank |
| Type | ST-K |
Description
Material: Steel. For connecting two shafts, as a rigid coupling. For medium torques. Easy to mount. Self-releasing at dismounting No axial offset during mounting. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft max. 12.5µm. More sizes up to d=110mm for 7,400Nm are available. Price and delivery time on request.
