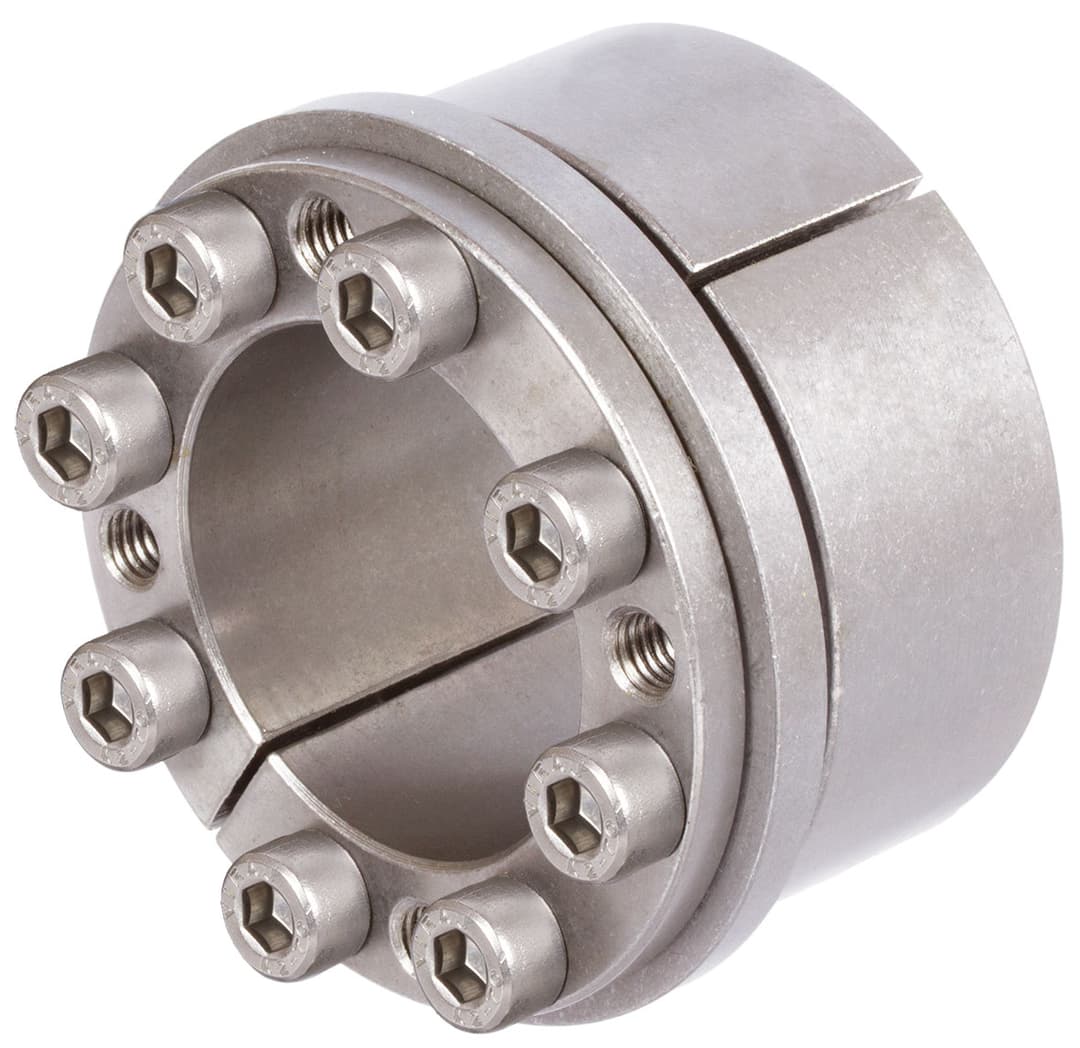

Locking assembly COM-C bore 20mm size 20-47 stainless steel 1.4401
Manufacturer part no. 61597120
$112.16≈ 97.40 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €97.40 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €22.48 |
| Total delivered | €134.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

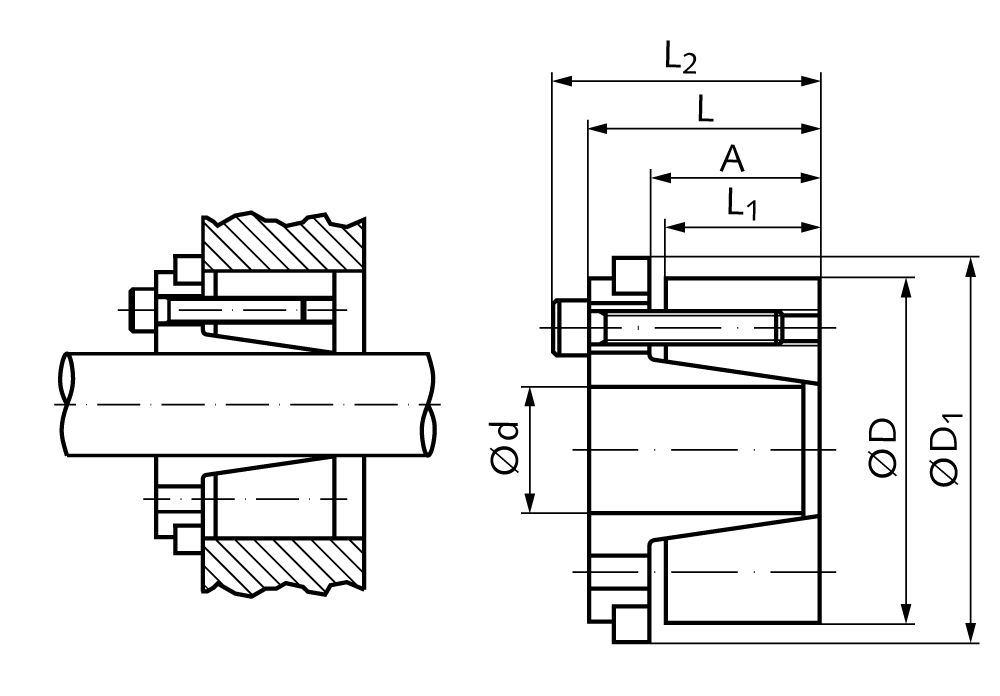

Mechanical
| Weight | 390 g |
Other characteristics
| Admissible axial force | 15 kN |
| Inner diameter | 20 mm |
| Length | 39 mm |
| Outer diameter | 47 mm |
| Tightening torque fastening screws | 8 Nm |
| Transmissible torque | 152 Nm |
| Bolts 12 9 no x size | 6 x M 6 x 22 |
| Design shape | With flange. mechanical |
| Hub surface pressure | 34 N/mm2 |
| Material | Stainless steel (316) |
| Self centering | Yes |
| Shaft surface pressure | 78 N/mm2 |
| Surface | Blank |
Description
Material: Stainless steel 1.4401 (AISI 316). • For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. • For medium torques. • Self-centering. • No axial offset. • Concentricity: 0.02 to 0.04 mm. • Shaft h8, Hub H8. Surface roughness hub/shaft Rz max. 12.5 µm.
