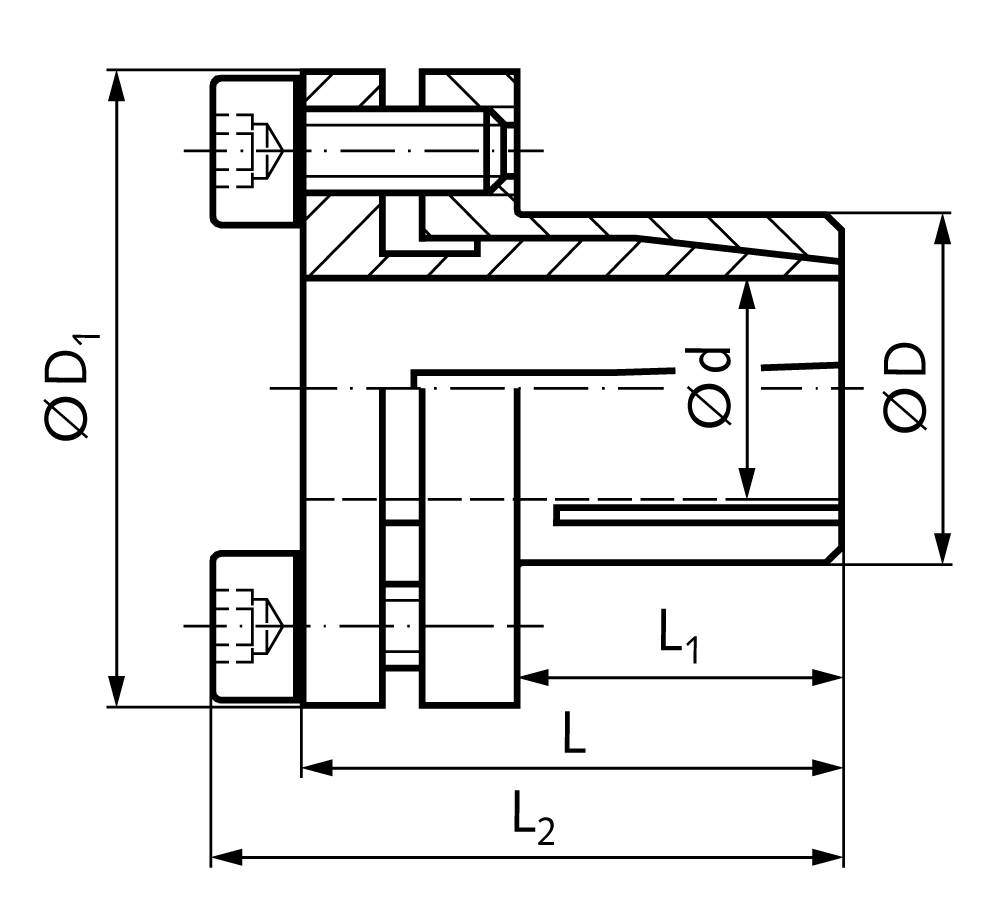

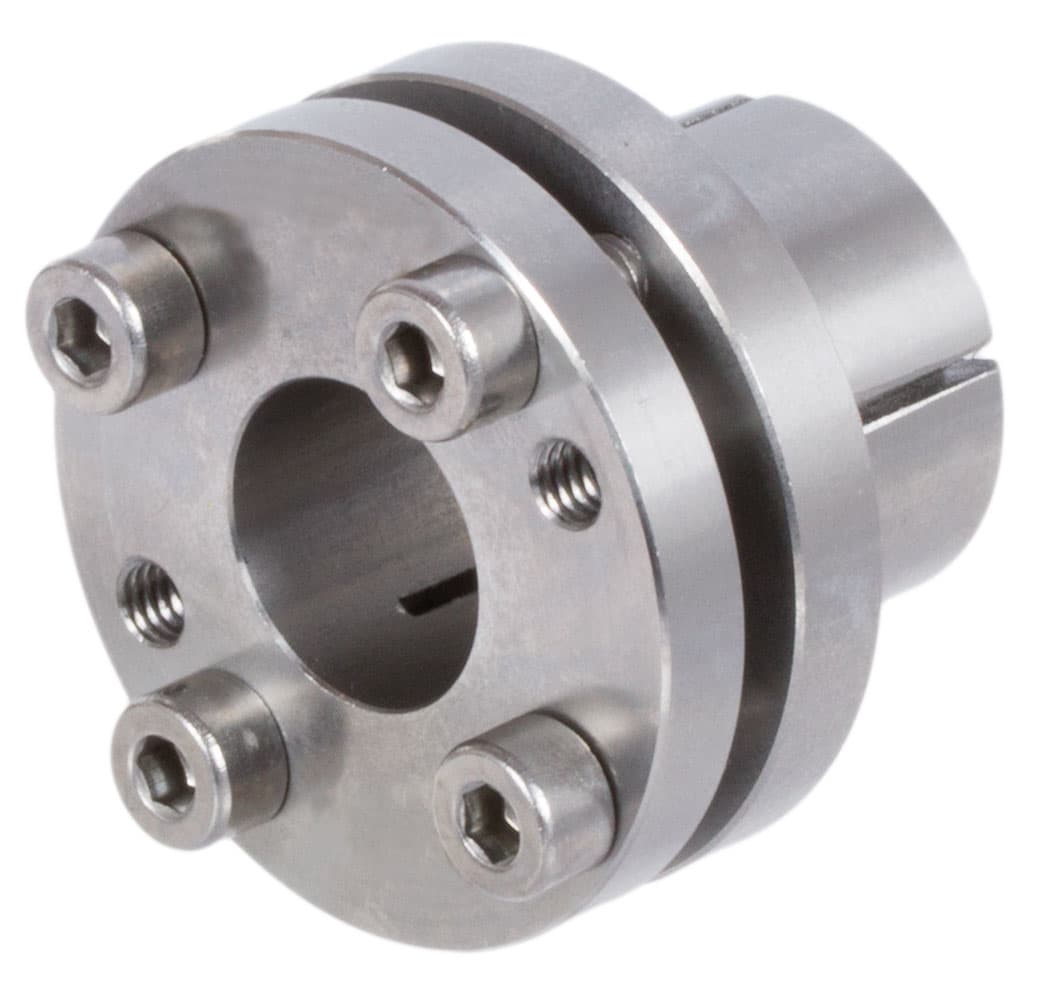

Clamping bush MSM-N stainless steel bore 14mm max. torque 48Nm
Manufacturer part no. 61599214
$118.48≈ 102.89 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €102.89 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.58 |
| Total delivered | €141.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 489.456 kg·cm |
| Weight | 80 g |
Other characteristics
| Admissible axial force | 6.5 kN |
| Inner diameter | 14 mm |
| Length | 27.5 mm |
| No of bolts pcs | 4 |
| Outer diameter | 22 mm |
| Tightening torque fastening screws | 2.7 Nm |
| Transmissible torque | 48 Nm |
| Design shape | With flange, hydraulic |
| Hub surface pressure | 70 N/mm2 |
| Material | Stainless steel (303) |
| Self centering | Yes |
| Shaft surface pressure | 90 N/mm2 |
Description
Material: Stainless steel 1.4305 (AISI 303). Concentricity: about 0,02 mm. Tolerance: Shaft k6-h10, Hub H8. Mounting: The bush is mounted quickly. Just place the bush inside the hub and push both onto the shaft. Fasten with Allen key. Demounting: Remove tensioning screws. Put screws in forcing thread and fasten them until the bush is pressed off. MN = transmittable torque at load of 0. If the screws are fastened with Manz. Fa = transmittable axial force at torque of 0. If the screws are fastened with Manz. Manz = required fastening torque for the screws. The dimensions refer to bushes before assembly.
