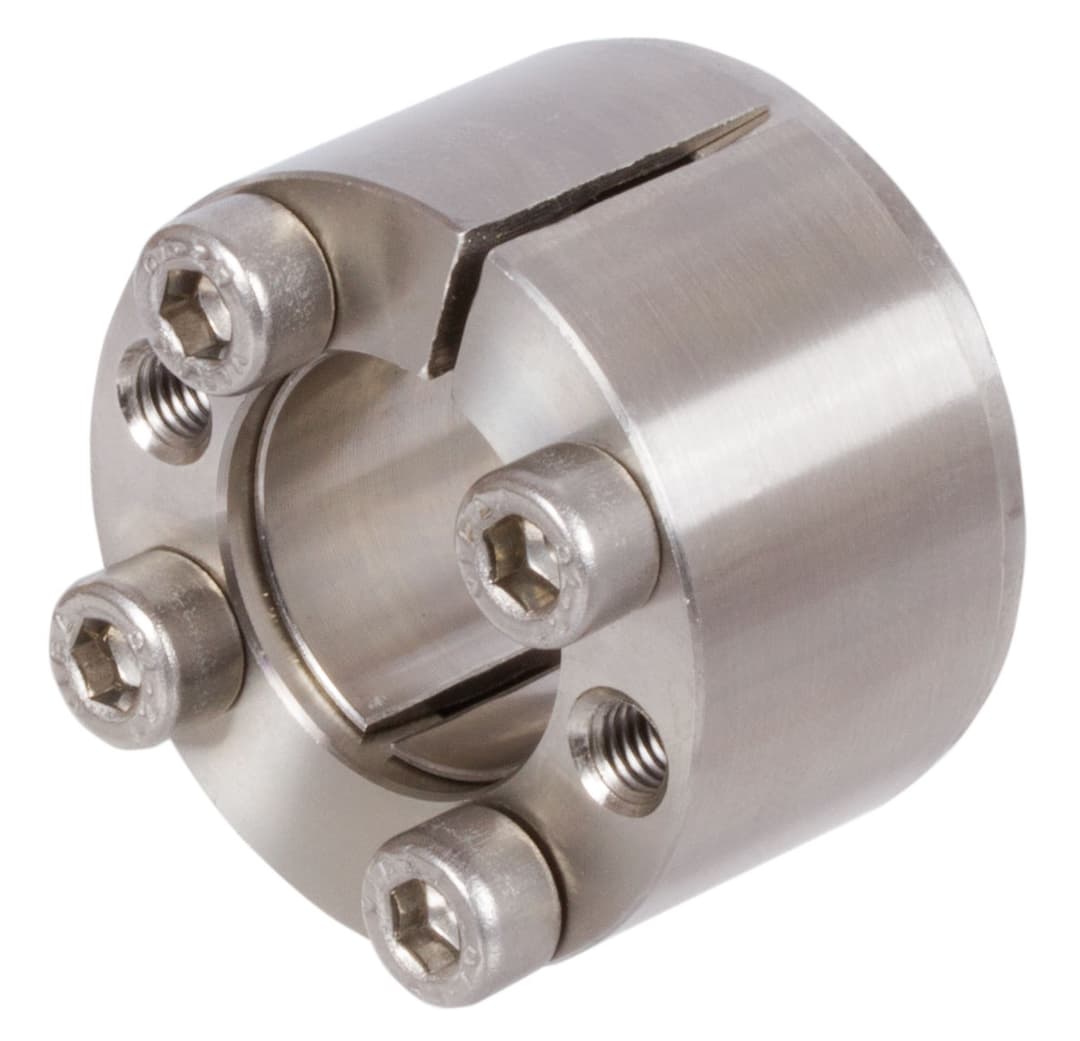

Locking assembly BAR stainless steel 1.4401 bore 24mm
Manufacturer part no. 61599424
$156.21≈ 135.66 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €135.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €30.13 |
| Total delivered | €180.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Admissible axial force | 8 kN |
| Inner diameter | 24 mm |
| Length | 21 mm |
| No of bolts pcs | 4 |
| Outer diameter | 47 mm |
| Tightening torque fastening screws | 7.3 Nm |
| Transmissible torque | 96 Nm |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 23 N/mm2 |
| Material | Stainless steel (316) |
| Self centering | Yes |
| Shaft surface pressure | 44 N/mm2 |
| Surface | Blank |
Description
Material: Stainless steel 1.4401 (AISI 316). For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. Stainless steel. For low torques. Self-centering. Slight axial offset possible during assembly. Fit, Surface: Due to the special design of the BAR clamping set even rough fits can be bridged with excellent self centering capacity. Shaft and hub up to Quality h8/H8. Surface finish for shaft and hub Rz < 10 µm.
