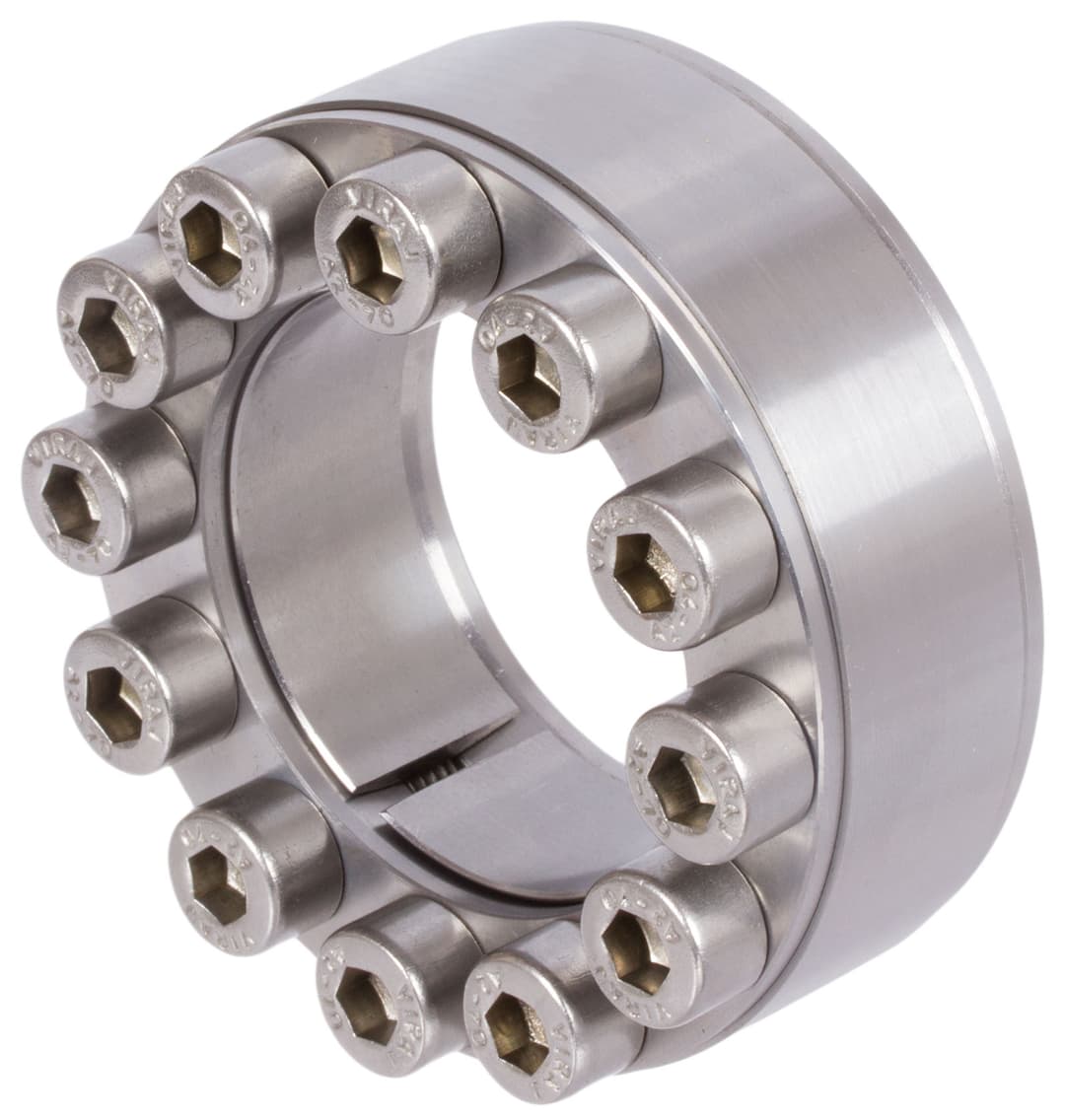

Locking assembly COM-A stainless steel 1.4401 bore 18mm size 18-47
Manufacturer part no. 61599518
$88.11≈ 76.52 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €76.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.30 |
| Total delivered | €109.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics
| Admissible axial force | 13 kN |
| Inner diameter | 18 mm |
| Length | 20 mm |
| Outer diameter | 47 mm |
| Tightening torque fastening screws | 8 Nm |
| Transmissible torque | 110 Nm |
| Bolts no x size | 8 x M6 |
| Design shape | Cylindrical with several screws |
| Hub surface pressure | 43 N/mm2 |
| Material | Stainless steel (316) |
| Self centering | No |
| Shaft surface pressure | 102 N/mm2 |
| Surface | Blank |
Description
