MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

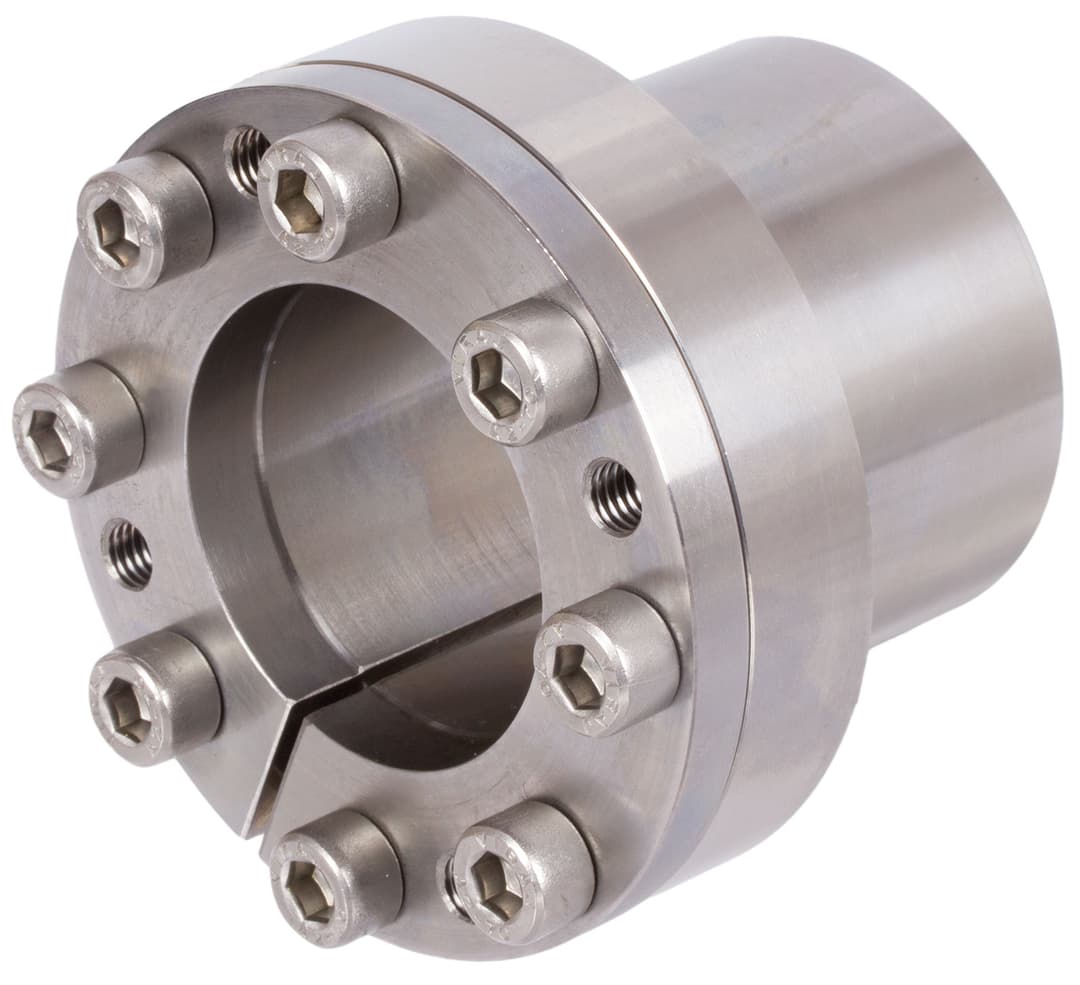

Locking assembly COM-B stainless steel 1.4401 bore 19mm size 19-27
Manufacturer part no. 61599619
$142.74≈ 123.96 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €123.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.79 |
| Total delivered | €166.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 250 g |
Other characteristics
| Admissible axial force | 10 kN |
| Inner diameter | 19 mm |
| Length | 38 mm |
| Outer diameter | 27 mm |
| Tightening torque fastening screws | 8 Nm |
| Transmissible torque | 92 Nm |
| Bolts no x size | 4 x M6 |
| Design shape | With flange, mechanical |
| Hub surface pressure | 53 N/mm2 |
| Material | Stainless steel (316) |
| Self centering | Yes |
| Shaft surface pressure | 75 N/mm2 |
| Surface | Blank |
Description
Material: Stainless steel 1.4401 (AISI 316). Self-centering clamping bush for small hub diametres. For low torques. Self-locking. No axial movement during mounting. Fit: Shaft h8. Hub H8. Surface roughness Rz max. 16 µm. Mounting: Slightly oil the clamping set before mounting, do not use molibdenum disulphide or grease. Tighten the screws evenly and crosswise in several steps. Demounting: Remove all tensioning screws and screw them into the (usually unused) forcing thread of the front flange, until the flange is released.
