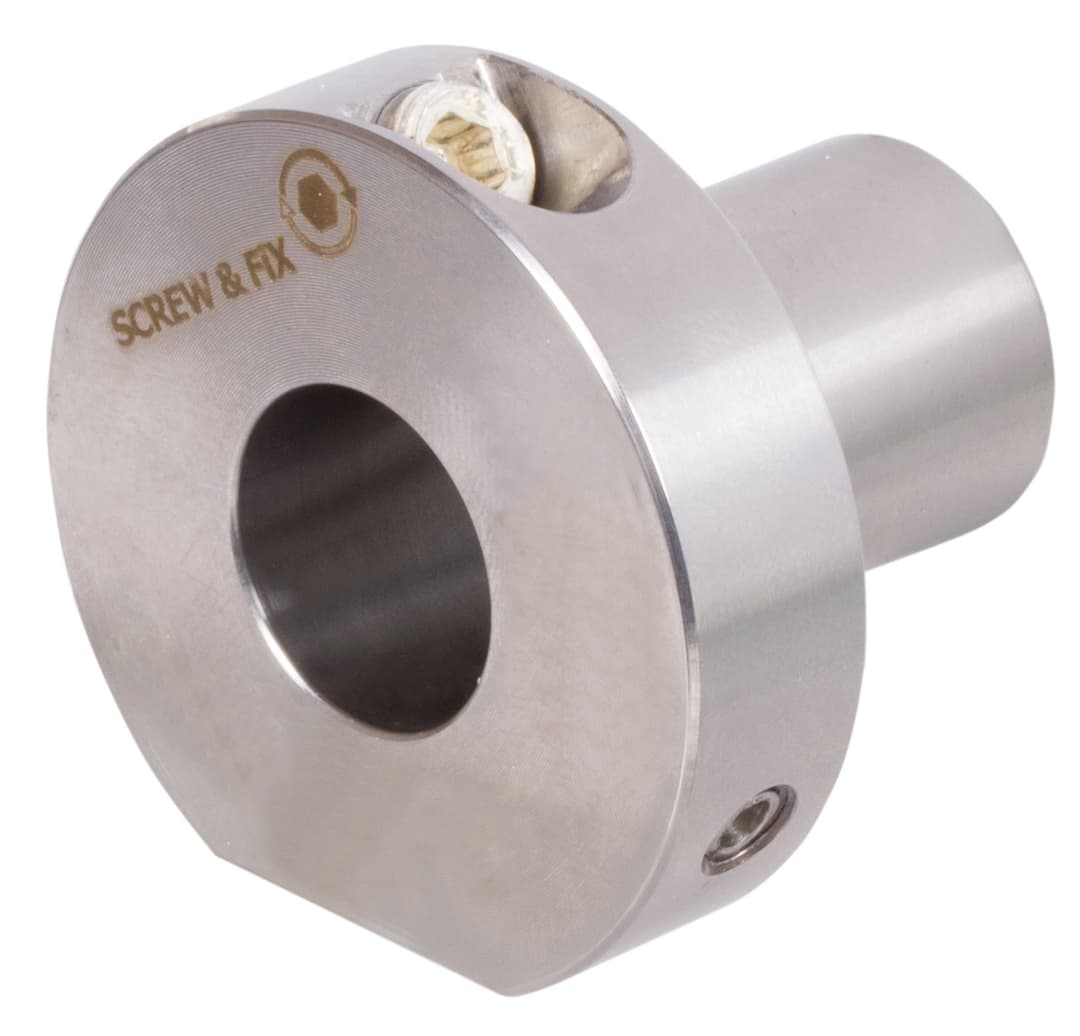

Clamping bush E-N bore 50mm
Manufacturer part no. 61599950
$1482.17≈ 1287.16 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €1287.16 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €260.43 |
| Total delivered | €1562.59 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.2 kg |
Other characteristics
| Admissible axial force | 76 kN |
| Admissible radial force | 4.5 kN |
| Inner diameter | 50 mm |
| Length | 80 mm |
| Outer diameter | 60 mm |
| Size of bolts din 912 12 9 | 70 |
| Tightening torque fastening screws | 21 Nm |
| Transmissible torque | 1 900 Nm |
| Design shape | With flange, hydraulic |
| Hub surface pressure | M 16 N/mm2 |
| Material | Stainless steel (431) |
| Self centering | Yes |
| Shaft surface pressure | 90 N/mm2 |
Description

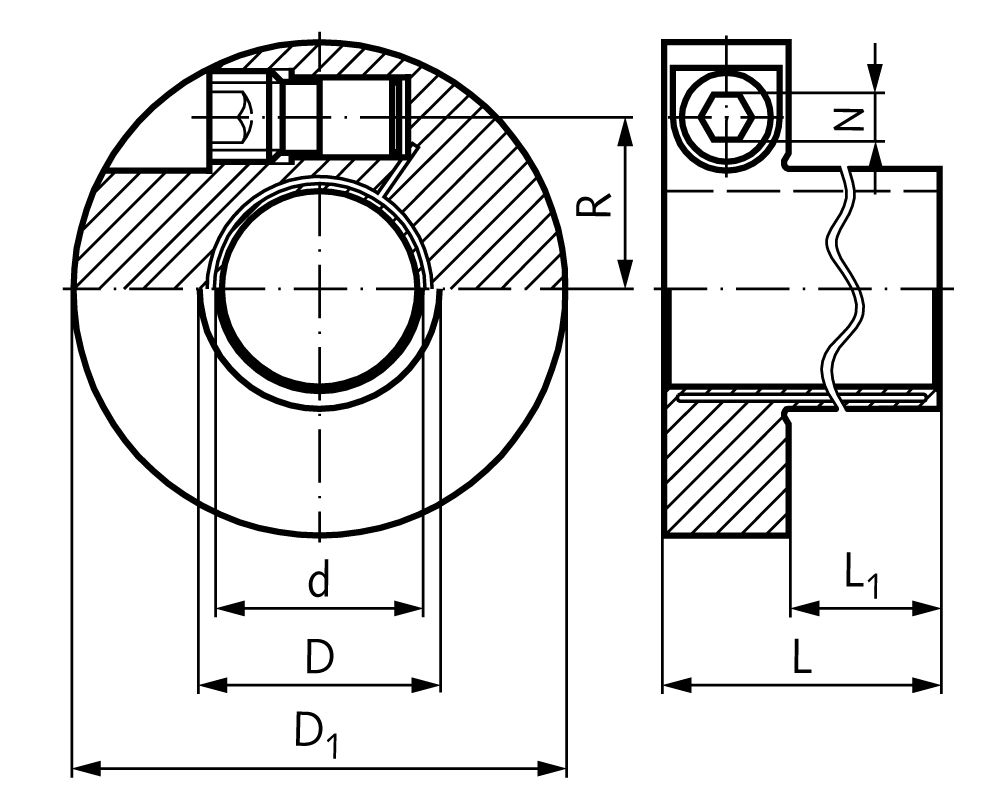

Material: Stainless steel 1.405 (AISI 431). The clamping bush consists of a double-walled steel sleeve filled with a pressure medium, and a flange part. Inside the flange there is a screw and a piston with seal to build up compression. Function: When the thrust screw is tightened, the sleeve expands uniformly against shaft and hub, creating a rigid connection through frictional force. When the thrust screw is loosened, the bush returns to its initial position and can be easily disassembled. Concentricity: 0,02 mm. Tolerances: Shaft h7 for d = 15 mm. Shaft k6-h7 for d = 19, 22, 24, 28 and 38 mm. Shaft h8 for the other diametres d. Hub H7. MN = transmittable torque at load of 0. If the screws are fastened with Manz. Fa = transmittable axial force at torque of 0. If the screws are fastened with Manz. Fr = Maximum transmittable radial force. Manz = required fastening torque for the screws. Temperature range: -30° to +85°C. * with coated surface
