MÄDLERMÄDLER· Fastening Elements

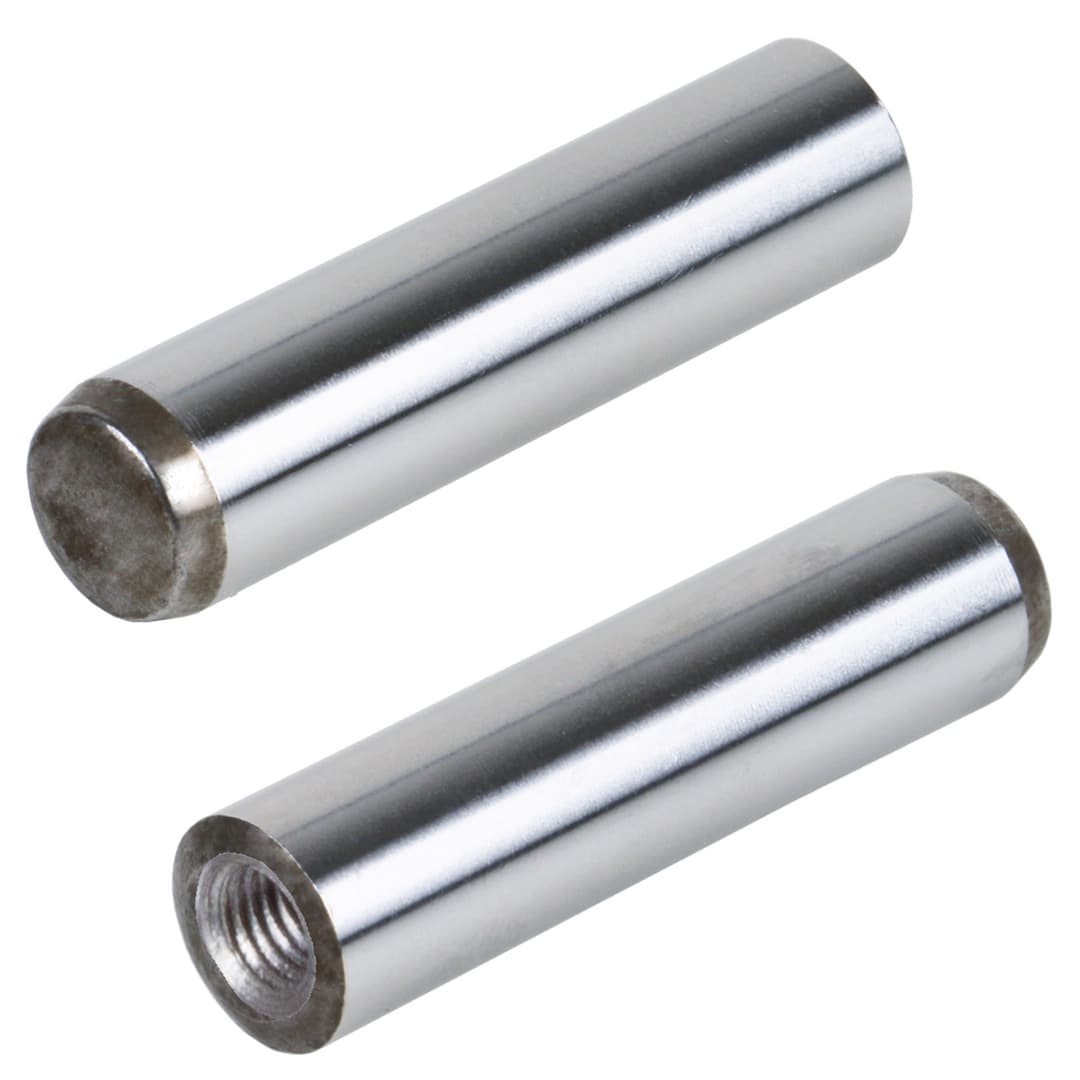

Parallel pin DIN 7979 hardened steel diameter 4m6 length 16mm internal thread M2
Manufacturer part no. 61850416
$1.55≈ 1.35 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €1.35 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.27 |
| Total delivered | €19.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.27 g |
Other characteristics

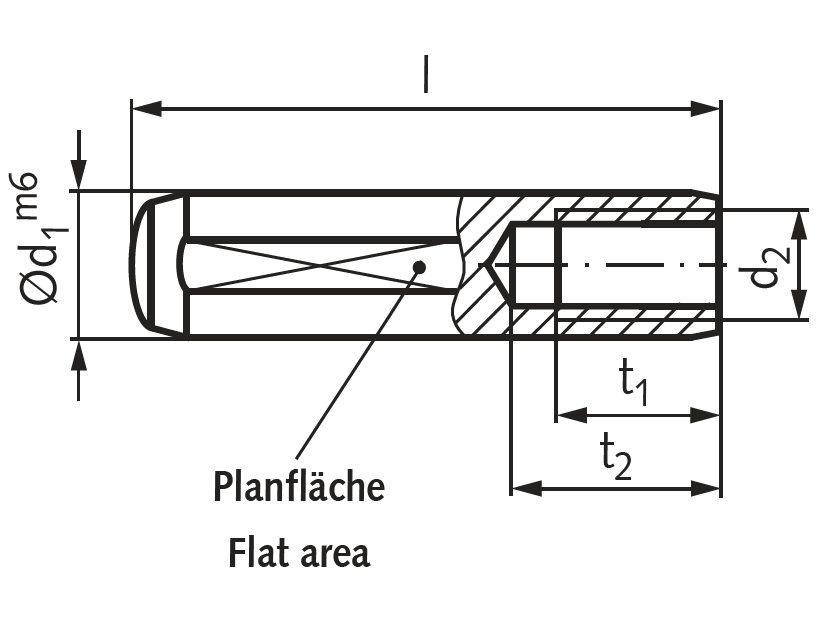

| D1 | 4 mm |
| L | 16 mm |
| T1 | 6 mm |
| T2 | 7 mm |
| D2 | M2 |
Description
Material: Steel, hardened and ground. Parallel Pins for sunk holes. One ending convex, with chamfer. Other ending with internal thread for demounting. Cylinder with flat area for bleeding the borehole, similar to DIN EN ISO 8735. Other types and versions on request.
