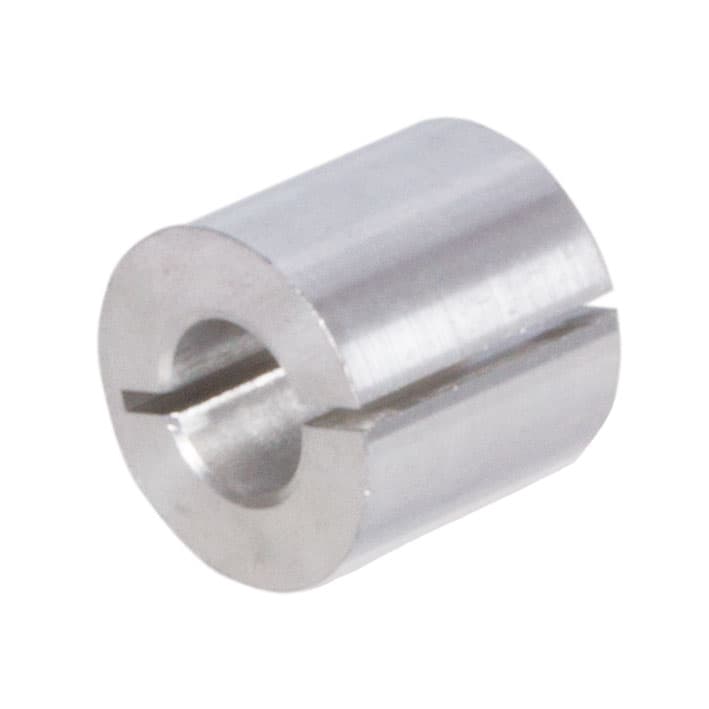

MÄDLERMÄDLER· Universal Joints
Bore-reducing bush diameter 12,7mm bore 5mm
Manufacturer part no. 62230512
$8.91≈ 7.74 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €7.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.55 |
| Total delivered | €27.29 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3 g |
Other characteristics
| Inner diameter | 5 mm |
| Length | 10.7 mm |
| Outer diameter | 12.7 mm |
| Material | Aluminum |
| Suitable with universal shaft partno | 630 828 00 |
| Surface | Blank |
Description

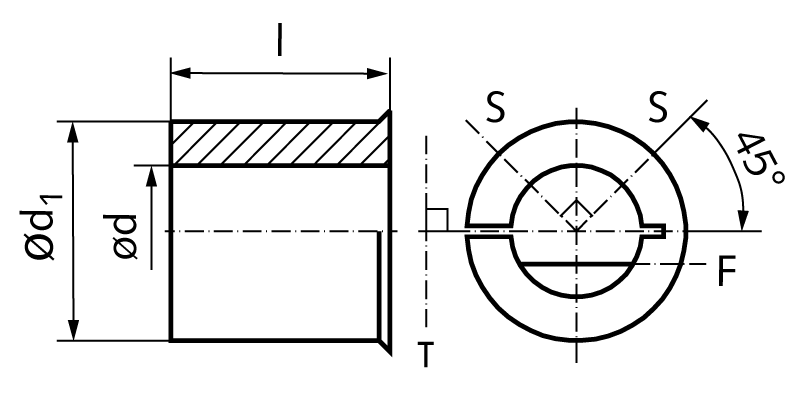

Material: Product No. 622 302 05 up to 622 304 05 made from brass. Product No. 622 303 05 up to 622 318 20 made from aluminium. To guarantee an optimum shaft-hub connection, the bore-reducing bush should be used as follows: “S” indicates the adjusting screw inside the adjusting-screw hub.”T” indicates tangential attachment screws for the clamping hub.”F” indicates the recommended positioning of the flattened shaft with adjusting-screw hubs. Please note that concentricity and constant velocity can be influenced by mounted bushes. To achieve the best possible performance, we recommend using shafts of tolerance class h6. Undersized shafts are less effective. For the same reason we would not recommend using flattened shafts with more than 1/4 of the diameter removed.
