MÄDLERMÄDLER· Locking Assemblies, Clamping Bushes, Taper Bushes

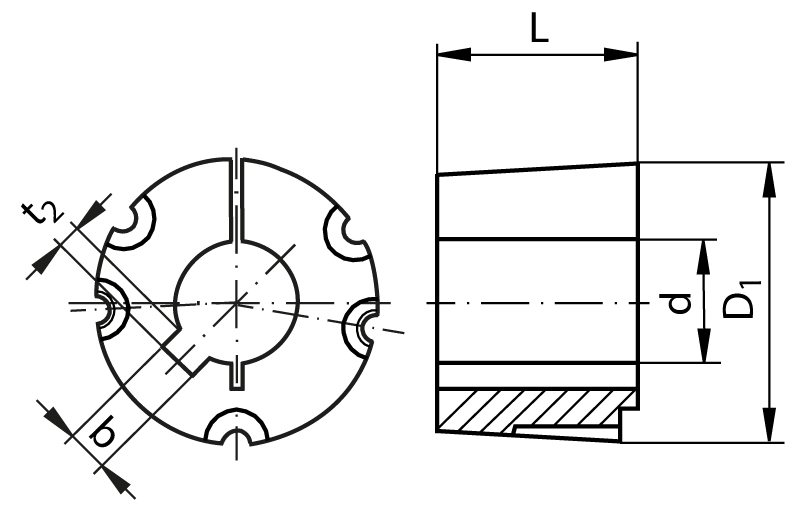

Taper bush 3535 bore 75mm
Manufacturer part no. 62251075
$93.90≈ 81.55 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €81.55 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.31 |
| Total delivered | €115.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.46 kg |
Other characteristics
| Bore | 75 mm |
| Clamp bushing type | 3 535 |
| Depth of keyway | 4.9 mm |
| Keyway width | 20 mm |
| Length | 89 mm |
| Outer diameter | 127 mm |
| Material | Grey cast iron (A48) |
| Surface | Blank |
Description
Material: GG25. Bores ISO E8. Keyways in accordance with DIN 6885/1. Screws included in delivery (spare screw product no. 622 510 99, order quantity as needed). Screw size BSW 1/2" x 1 1/2". Spanner size 10 mm. Cone and front side ground. Shaft tolerance +0,5mm / -0,125 mm. Can be used with or without feather key, depending on the required torque. Other bush sizes and bores are available on short notice (some in stock). Assembly instructions In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes) Recommended fastening torque for hubs from grey cast iron: 90 Nm. Slip torque without keyway: bore 42 mm: 550 Nm; bore 60 mm: 1130 Nm; bore 90 mm: 1800 Nm. Recommended fastening torque for hubs from steel: 112 Nm. Slip torque without keyway: bore 42 mm: 700 Nm; bore 60 mm: 1450 Nm; bore 90 mm: 2300 Nm.
