MÄDLERMÄDLER· Fastening Elements

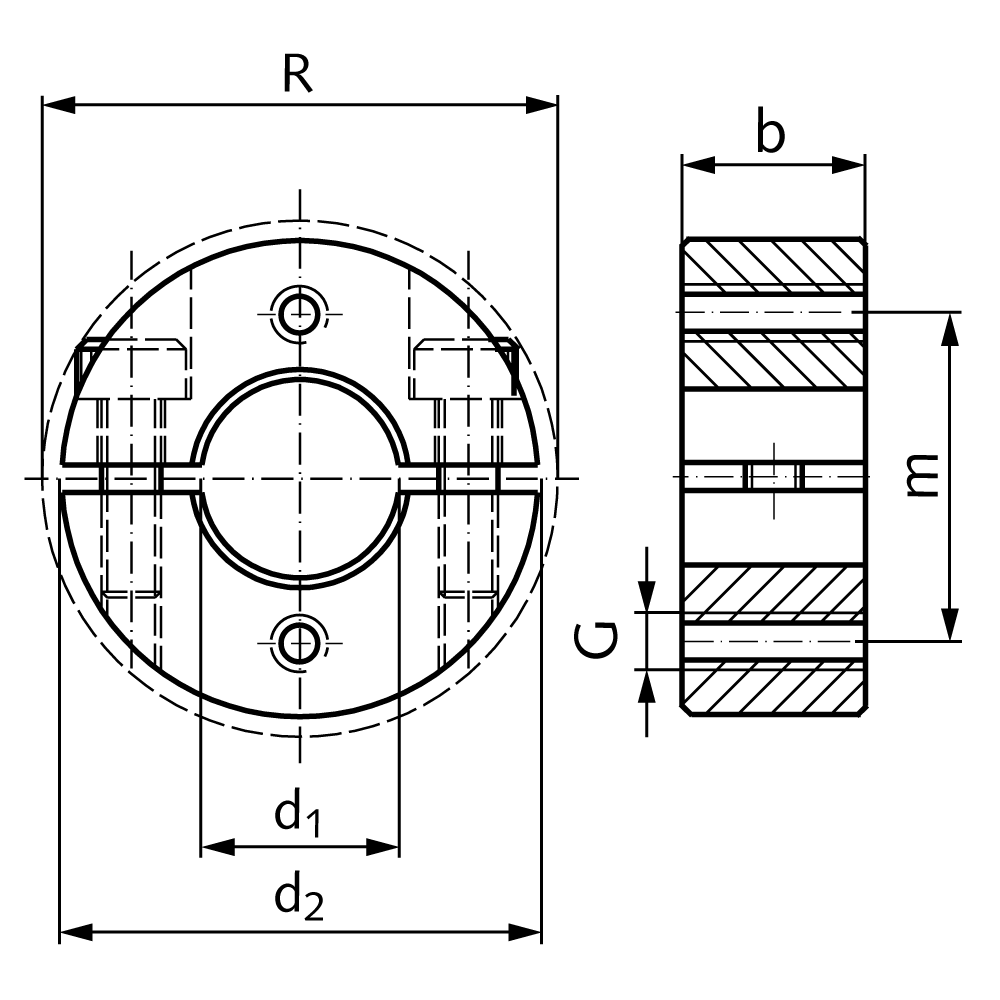

Clamp collar double-split steel C45 black oxide finished bore 18mm with bolts DIN 912 12.9 type GA
Manufacturer part no. 62341800GA
$20.10≈ 17.46 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €17.46 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.49 |
| Total delivered | €38.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 92 g |
Other characteristics
| Bore diameter | 18 mm |
| Max outer diameter over screw head | 41.2 mm |
| Mounting hole center distance | 29 mm |
| Outer diameter | 40 mm |
| Width | 13 mm |
| Material | Steel (1045) |
| Screw din 912 thread size x length | M 5 x 16 |
| Surface | Black oxide finish |
| Thread size | M 5 mm |
Description
Material: Steel C45, black oxide finish. Screw steel 12.9. Typ GA: With two axial mounting bores, with thread. The thread of the screw DIN 912 is covered with a layer of polyamide. Tolerance b: +0.08mm / -0.25mm. Temperature range: -40ºC to +175ºC. Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, easy readjustment, precision honed bores. Remarks to collars from steel: The black oxide on the clamping collars is formulated as part of the total performance of the product. It enhances the holding ability of the collar, it efficiently reduces slipping on the shaft, has anti-stick-slip characteristics and helps to keep the torque rating of the screw within its designed parameters. The oxide layer also provides corrosion protection.
