MÄDLERMÄDLER· Fastening Elements

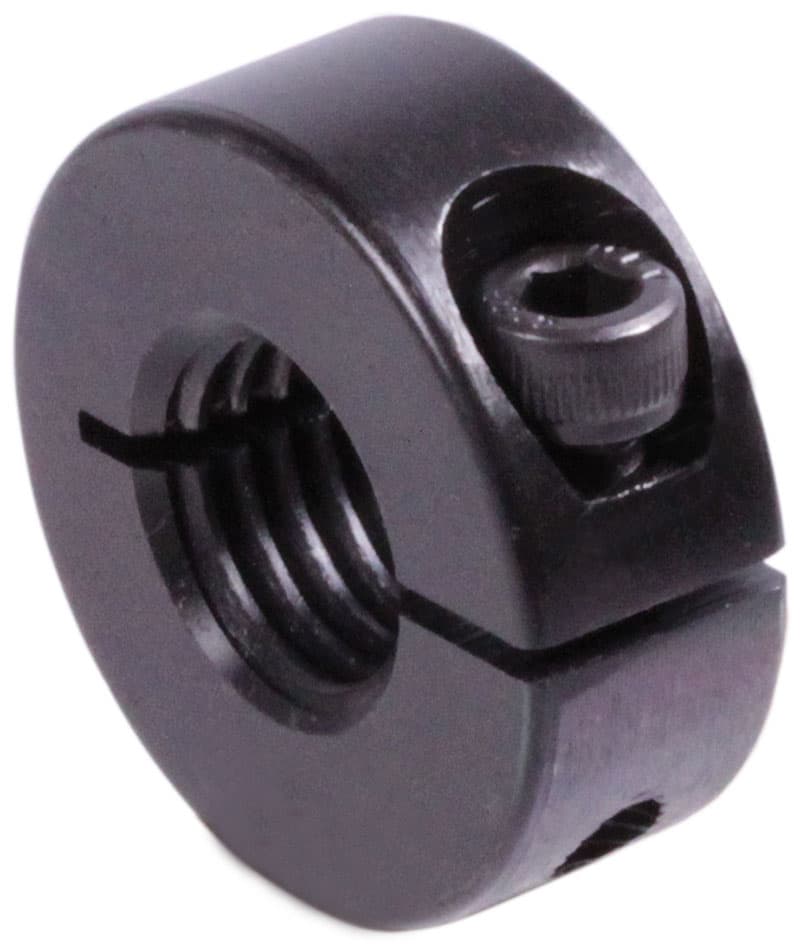

Clamp collar with thread single split steel C45 black oxide finished thread M4 x 0.70 with bolt DIN 912 12.9
Manufacturer part no. 62360400
$8.12≈ 7.05 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €7.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.41 |
| Total delivered | €26.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 10 g |
Other characteristics
| Outer diameter | 16 mm |
| Thread pitch | 0.7 mm |
| Width | 9 mm |
| Bolts din 912 | M 3 x 8 |
| Material | Steel (1045) |
| Surface | Black oxide finish |
| Thread size | M 4 |
Description
Material: Steel C45, black oxide finish. Screws steel 12.9. The threads of the screws DIN 912 are covered with a layer of polyamide. Temperature range: -40°C to +175°C. Thread metric ISO-standard (column 1).
