MÄDLERMÄDLER· Fastening Elements

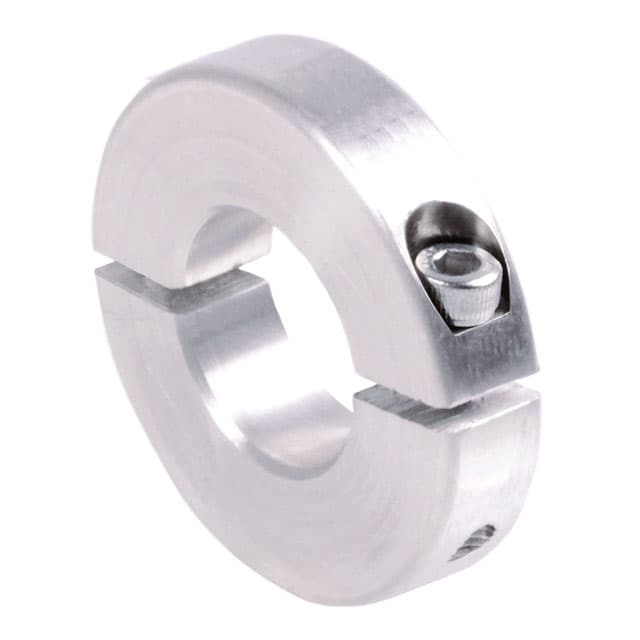

Clamp collar double-split aluminium bore 10mm with bolts DIN 912 A2-70 type S
Manufacturer part no. 62366410S
$16.89≈ 14.67 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €14.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.93 |
| Total delivered | €35.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7.3 g |
Other characteristics

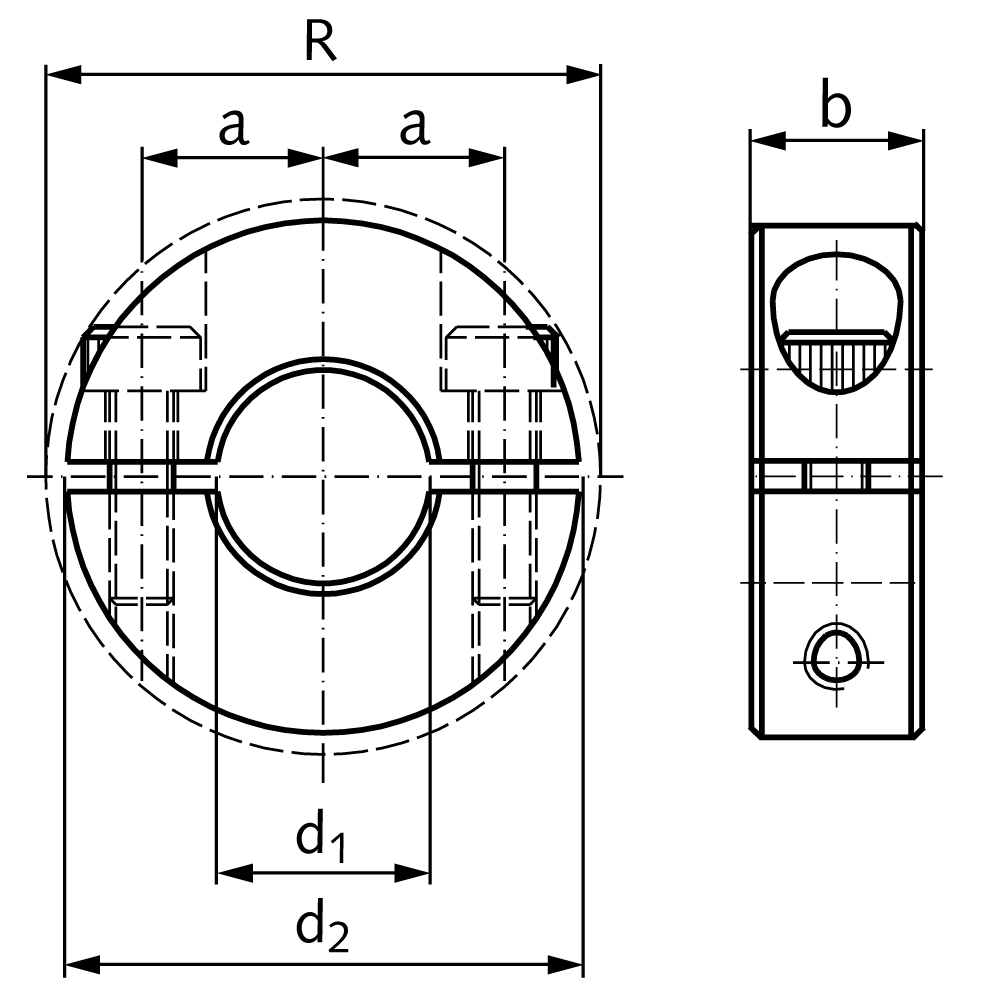

| Bore diameter | 10 mm |
| Max outer diameter over screw head | 27.3 mm |
| Outer diameter | 25 mm |
| Width | 6 mm |
| Material | Aluminum |
| Screw din 912 thread size x length | M 2.5 x 8 |
| Surface | Blank |
Description
Material: aluminium, screws stainless steel A2-70. Typ S: Slim version, e.g. for encoders. The thread of the screw DIN 912 is covered with a layer of polyamide. Tolerance b: +0.08mm / -0.25mm. Temperature range: -40ºC to +175ºC. Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, easy readjustment, precision honed bores.
