MÄDLERMÄDLER· Fastening Elements

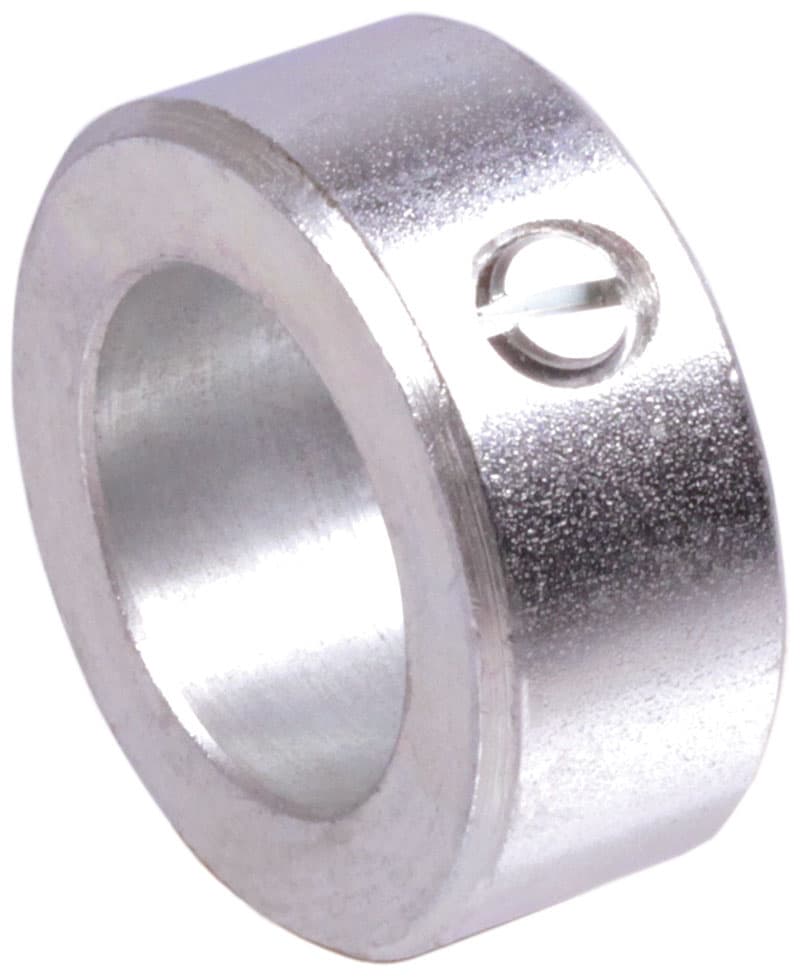

Shaft collar DIN 705 A bore 18mmm zinc plated set screw DIN EN 27434 (old DIN 553)
Manufacturer part no. 62388018
$3.57≈ 3.10 €
In stock — 50 unitslead time 14 d
Estimated landed cost
| Item | €3.10 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.62 |
| Total delivered | €21.72 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 705 A |
Other characteristics
| Inner diameter | 18 mm |
| Outer diameter | 32 mm |
| Weight per 100 pcs | 6 kg |
| Width | 14 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 6 x 8 mm |
Description
Light-duty series. With set screw DIN EN 27 434 (formerly DIN 553) made from steel, zinc-plated. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Size 9 not like DIN. Temperature range: -40ºC to +175ºC.
