MÄDLERMÄDLER· Fastening Elements

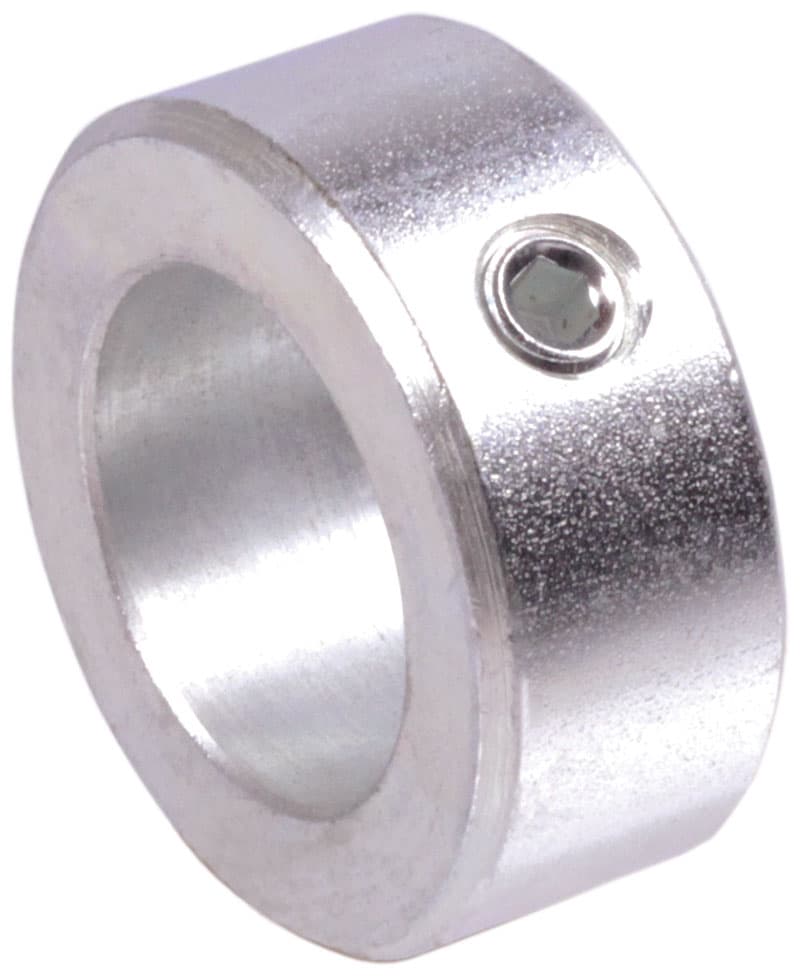

Shaft collar DIN 705 A bore 35mm zinc plated set screw DIN EN ISO 4027 (old DIN 914)
Manufacturer part no. 623880356
$9.23≈ 8.02 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €8.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.60 |
| Total delivered | €27.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 705 A |
Other characteristics
| Inner diameter | 35 mm |
| Outer diameter | 56 mm |
| Weight per 100 pcs | 18.7 kg |
| Width | 16 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 8 x 12 mm |
Description
Light-duty series. With set screw made from steel zinc-plated with hexagon socket as in DIN EN ISO 4027 (formerly DIN 914). Up to size d1 = 70 mm: Against DIN 705 A, with one screw with hexagon socket instead of slotted screw. From size d1 = 75 mm: As in DIN 705 A, with 2 screws with hexagon socket, with offset 135°. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Size 9 not like DIN. Temperature range: -40ºC to +175ºC.
