MÄDLERMÄDLER· Fastening Elements

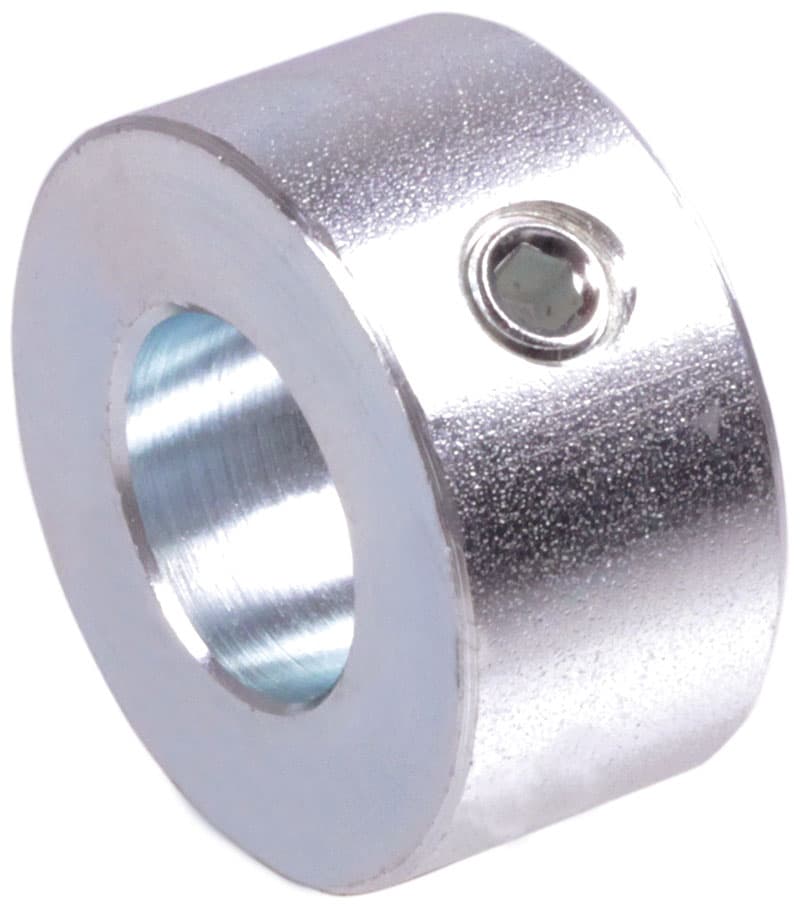

Shaft collar DIN703 bore 20mm zinc plated set screw 12.9 inner hexagon
Manufacturer part no. 62388220
$7.70≈ 6.69 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €6.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.34 |
| Total delivered | €26.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 20 mm |
| Outer diameter | 40 mm |
| Weight per 100 pcs | 14.6 kg |
| Width | 20 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Steel, zinc-plated. Heavy-duty series. With allen set screw made from steel, zinc-plated, like DIN EN ISO 4027 (formerly DIN 914), but strength 12.9. From size d1=70mm with 2 set screws, with offset 135°. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Temperature range: -40ºC to +175ºC.# Other sizes and inch-sizes on request.
