MÄDLERMÄDLER· Fastening Elements

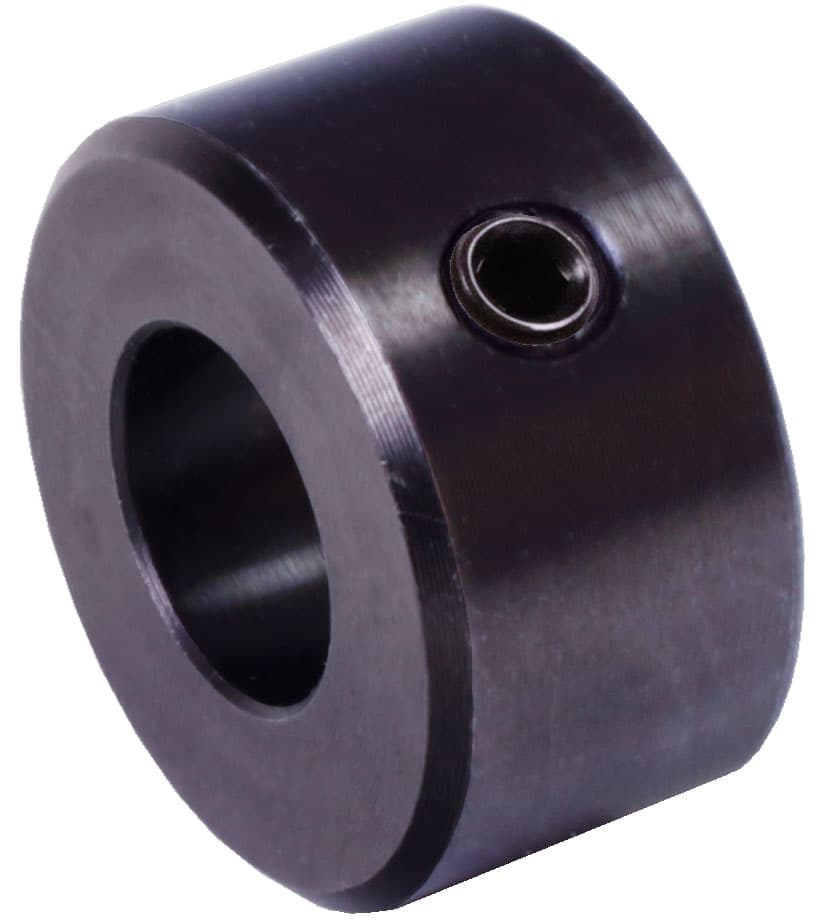

Shaft collar DIN703 bore 30mm black finish set screw 12.9 inner hexagon
Manufacturer part no. 62389230
$18.38≈ 15.96 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €15.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.19 |
| Total delivered | €37.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 30 mm |
| Outer diameter | 63 mm |
| Weight per 100 pcs | 41.5 kg |
| Width | 22 mm |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 10 mm |
Description
Material: Steel, black oxide finish. Heavy-duty series. With allen set screw made from steel, like DIN EN ISO 4027 (formerly DIN 914), but strength 12.9. From size d1=70mm with 2 set screws, with offset 135°. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Temperature range: -40ºC to +175ºC. * Size 20 is not part of the old standard DIN 703. Other sizes and inch-sizes on request.
