MÄDLERMÄDLER· Fastening Elements

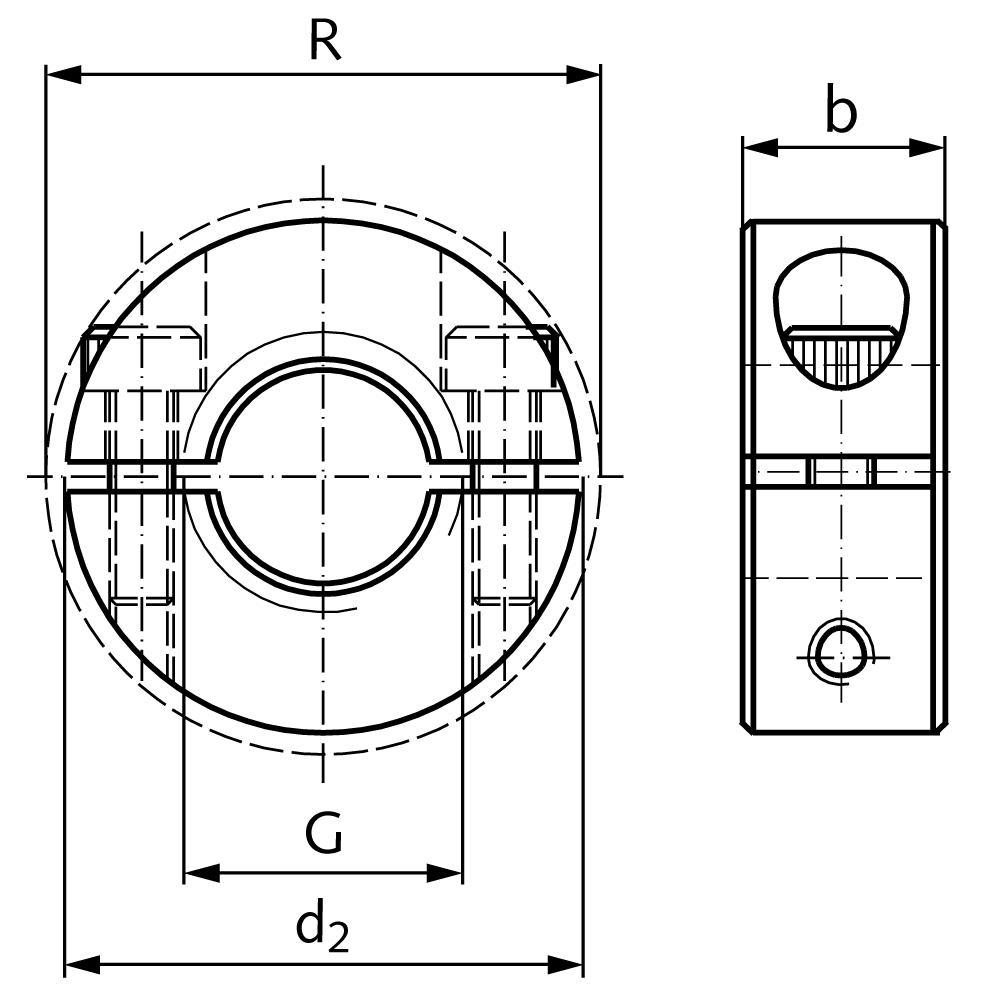

Clamp collar with thread double split steel C45 black oxide finished thread M30 x 3,5 with bolts DIN 912 12.9
Manufacturer part no. 62393000
$30.33≈ 26.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €26.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.27 |
| Total delivered | €49.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 163 g |
Other characteristics
| Outer diameter | 54 mm |
| Thread pitch | 3.5 mm |
| Width | 15 mm |
| Bolts din 912 | M 6 x 18 |
| Material | Steel (1045) |
| Surface | Black oxide finish |
| Thread size | M 30 |
Description
Material: Steel C45, black oxide finish. Screws steel 12.9. The threads of the screws DIN 912 are covered with a layer of polyamide. Tolerance b: +0,08mm / -0,25mm Temperature range: -40°C to +175°C. Thread metric ISO-standard (column 1).
