MÄDLERMÄDLER· Fastening Elements

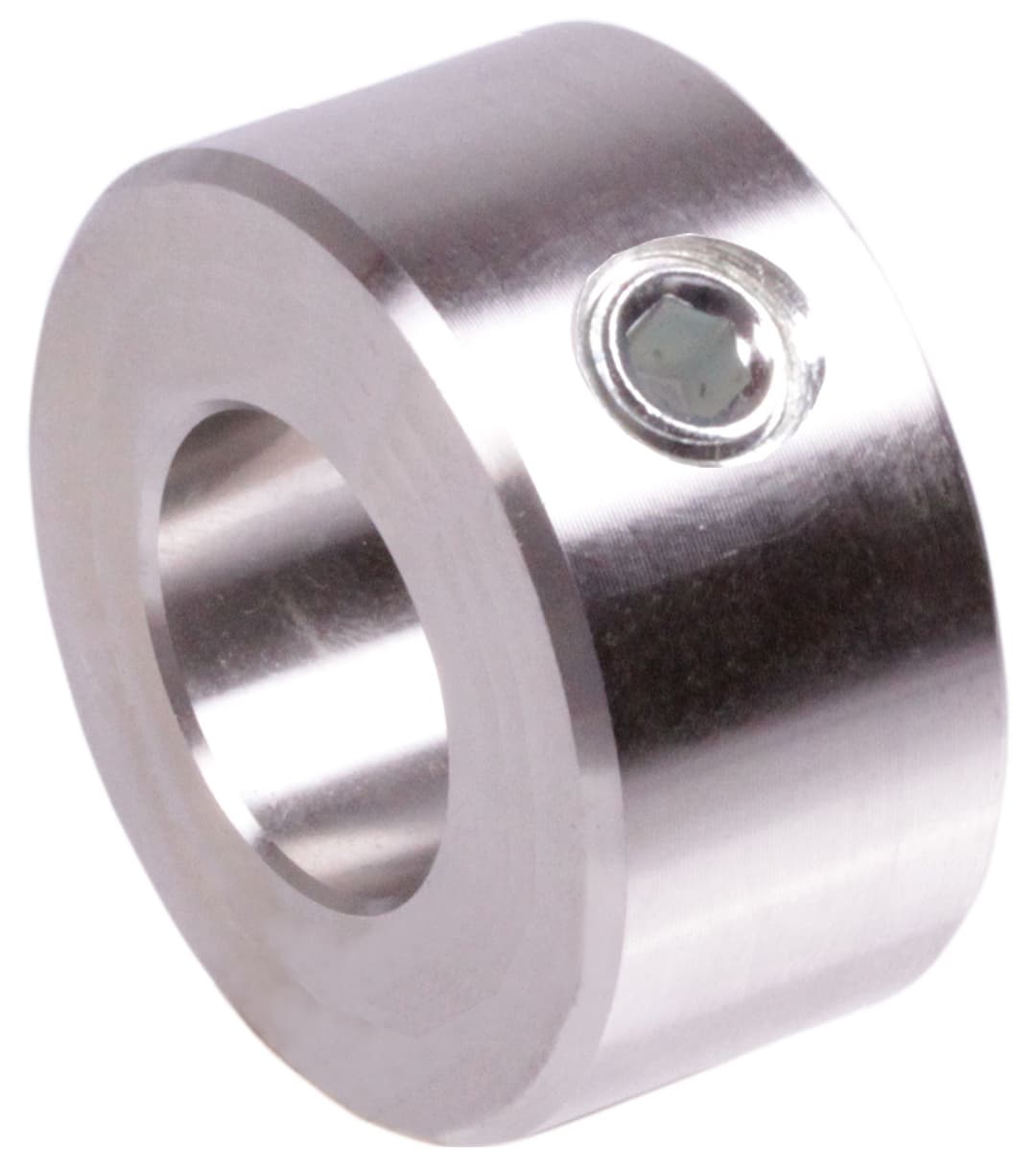

Shaft collar DIN703 bore 60mm 1.4305 set screw A2 inner hexagon
Manufacturer part no. 62399260
$79.42≈ 68.97 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €68.97 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.79 |
| Total delivered | €100.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 60 mm |
| Outer diameter | 100 mm |
| Weight per 100 pcs | 110 kg |
| Width | 28 mm |
| Material | Stainless steel (303) |
| Surface | Blank |
| Thread size | M 12 mm |
Description
Material: Stainless steel 1.4305 (AISI 303). Heavy-duty series. With allen set screw like DIN EN ISO 4027 (formerly DIN 914), but stainless steel A2. From size d1=70mm with 2 set screws, with offset 135°. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Temperature range: -40ºC to +175ºC. Other sizes and inch-sizes on request.
